Issue 2.0

SV9100 Networking Manual 9-3

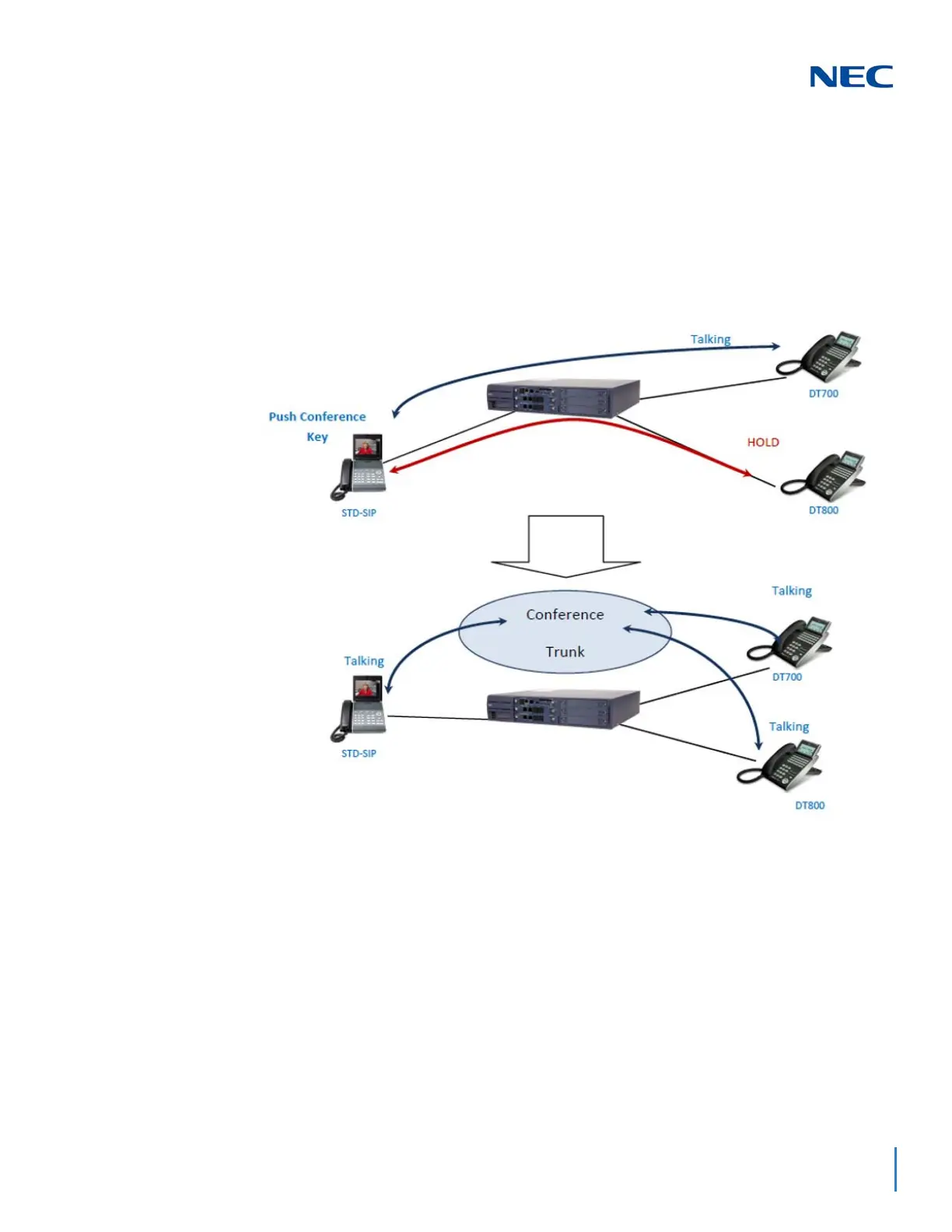

SECTION 2 STD SIP CONFERENCE

Description

With SV9100 software 2.00 or higher Standard SIP Terminals can initiate a

conference call.

Conditions

 PRG 20-13-08 must be enabled for the Class of Service the Standard SIP Terminal

is in.

 A DSP Resource is needed for each Standard SIP or DT800/700 that is in the

conference.
