This function allows the Primary System to control 240 slots and, users can check
what kind of blade is installed in each communication server and how many blades
are available in the link.
Virtual Slot Image
Related Programming:
 51-10-01 : Remaining Virtual Slots
View the remaining number of slots which can be controlled by NetLink. The
NetLink feature can control up to 240 virtual slots maximum. (The physical slots in
the NetLink network are maintained as virtual slots by the SV9100.)
This option is not
user-definable
.
Slot Deletion:
1. Unplug the blade from the communications server chassis.
2. Use Program 90-05 : Slot Control and select menu #1 (delete command).
3. Specify the System ID and Slot Number.
Communication Server Information Deletion:
 Using Program 51-14-01 : NetLink System Control – Delete System
Information, Specify the System ID
To use this program, the communications server must not be connected to the
network.
All virtual slot information of the communication server is deleted. The
IMPORTANT
The information in the virtual slot is deleted as well.

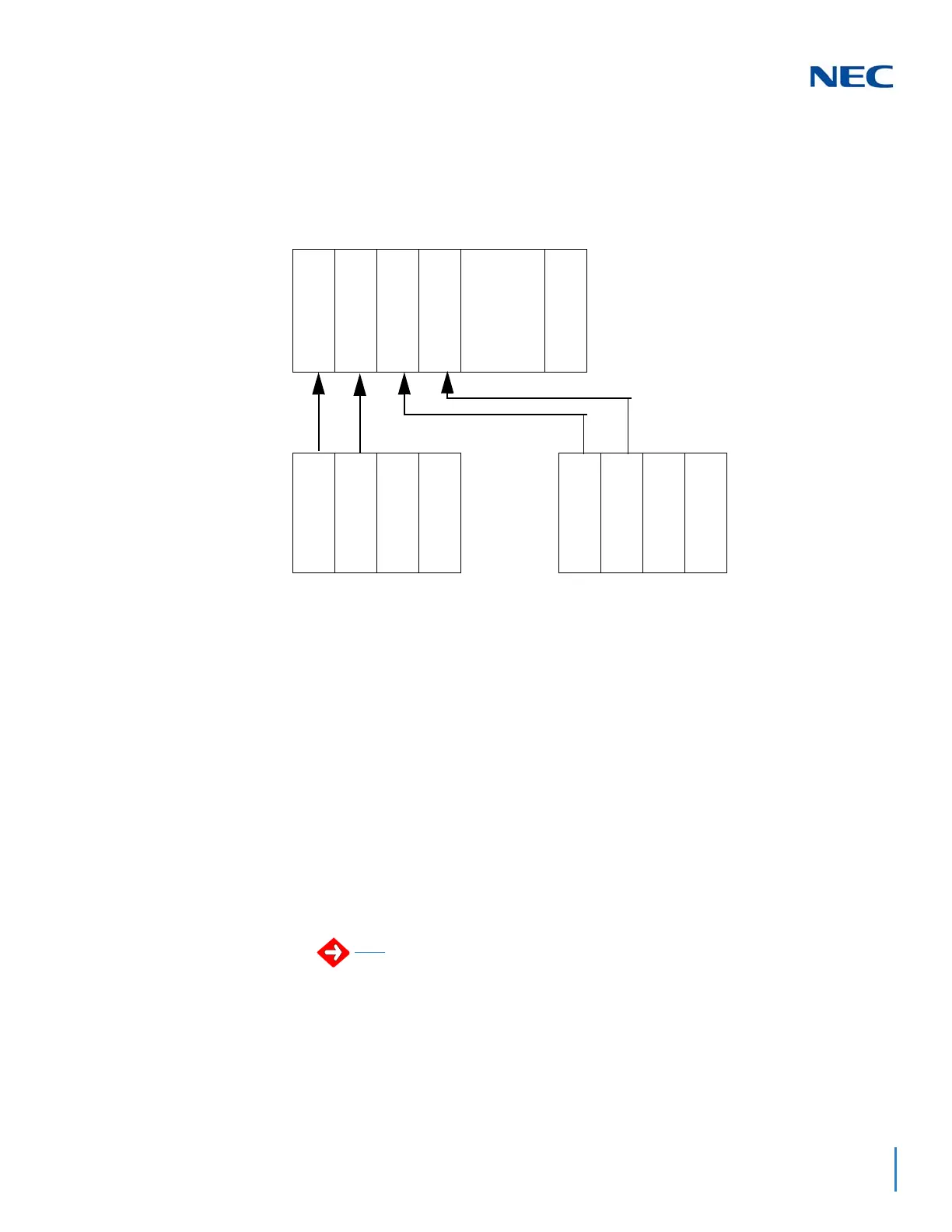

Up to 240 Virtual Slots
System ID 1 (Primary) System ID 2 (Secondary)
Virtual Slot 1 Virtual Slot 2 Virtual Slot 3 Virtual Slot 4
~
Virtual Slot 240
Virtual Slot 1 Virtual Slot 2 Virtual Slot 3 Virtual Slot 4 Physical Slot 1 Physical Slot 2
