Issue 2.0
SV9100 Networking Manual 3-9
Step 3: K-CCIS Activation

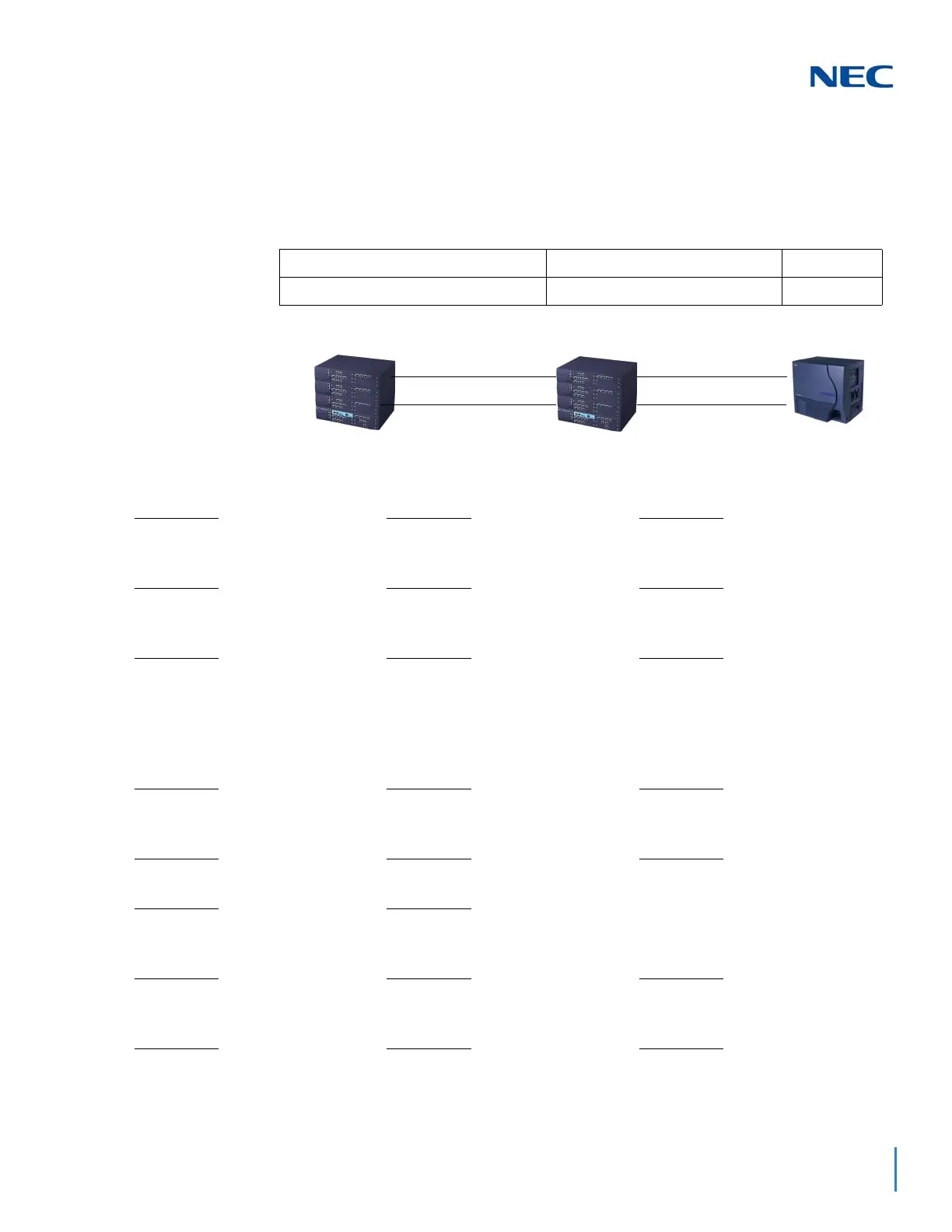

The following diagram provides an example of Programs that should be assigned
for K-CCIS. The example assumes that Step 1: T1 Tie Lines and Step 2: Closing
Number Plan are completed.
DSTCCH = Destination Point Code CCH = Control Channel Handler TRK = Trunk
ORGCCH = Originating Point Code TG = Trunk Group
TG 10 TG 10
UNIVERGE
SV9100
UNIVERGE
SV9100
Electra Elite
IPK II
(101s)
(201s)
(301s)
TG 11 TG 10
PC00001
101~130
PC00002
201~230
PC00003
301~330
TG 00 TG 00 TG 00 TG 00
CCH CCH
PRG 14-13-01 PRG 14-13-01 PRG 14-13-01
TG10 = CCIS Route ID 1 TG10 = CCIS Route ID 1 TG10 = CCIS Route ID 1
TG11 = CCIS Route ID 2
PRG 14-14-01 PRG 14-14-01 PRG 14-14-01
TRK 001~023 = 1~23 TRK 001~023 = 1 ~ 23 TRK 001~023 = 1~23
TRK 025~047 = 1 ~ 23
PRG 14-05-01 PRG 14-05-01 PRG 14-05-01
TRK 001~024 = 10 TRK 001~024 = 10 TRK 001~024 = 10
Priority = TRK 001~024 = 024~001 Priority = TRK 001~024 = 024~001 Priority = TRK 001~024 = 024~001
TRK 025~048 = 11
TRK 048 = 00
Priority = TRK 025~048 = 048~025
PRG 22-02-01 PRG 22-02-01 PRG 22-02-01
TRK 001~024 = Tie TRK 001~024 = Tie TRK 001~024 = Tie
TRK 025~048 = Tie
PRG 50-01-01 PRG 50-01-01 PRG 50-01-01
CCIS Availability = Yes CCIS Availability = Yes CCIS Availability = Yes
PRG 50-02-01 PRG 50-02-01
CCIS Route ID1 = TRK 024 CCIS Route ID1 = TRK 024
CCIS Route ID2 = TRK 048
PRG 50-02-02 PRG 50-02-02 PRG 50-02-02
CCIS Route ID1 = 56K CCIS Route ID1 = 56K CCIS Route ID1 = 56K
CCIS Route ID2 = 56K
PRG 50-02-03 PRG 50-02-03 PRG 50-02-03
CCIS Route ID1 = Org. Point Code 1 CCIS Route ID1 = Org. Point Code 2 CCIS Route ID1 = Org. Point Code 3
CCIS Route ID2 = Org. Point Code 2
