Chapter 8: Technical Specifications
Table 8-2. eCobra 800 Robot Top and Side Dimension Description
Item Description
1 Required Clearance to Open eAIB Chassis
2 31 mm Required Cable Clearance
32.5
210
729.0
570
18.0
571
171.5
278.5
425
800.0
160.0
189
160
80

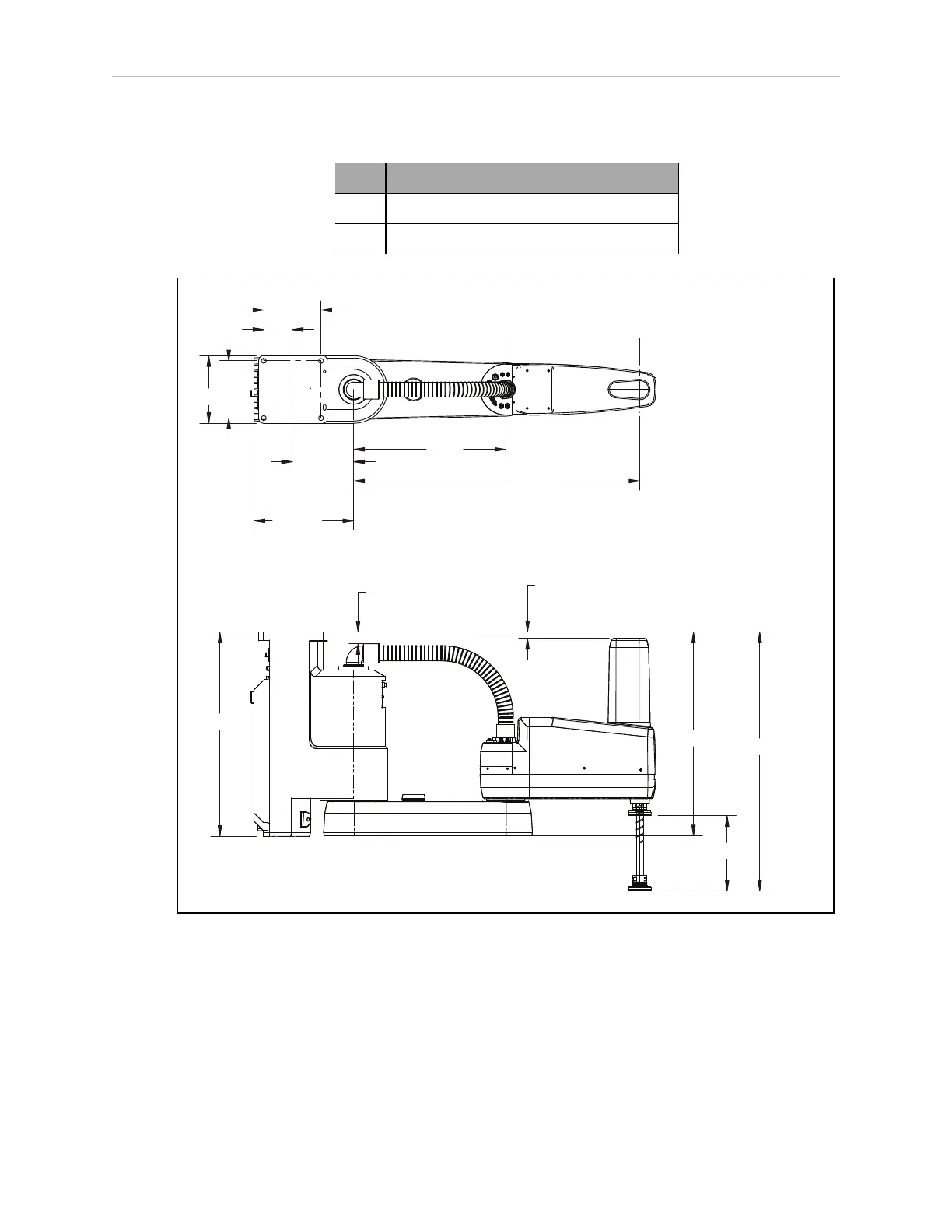

Figure 8-3. eCobra 800 Inverted Robot Top and Side Dimensions (Units in mm)
