Section 2 NS Series Functions 2-11 Multifunction Objects
2-209
NS Series Programming Manual

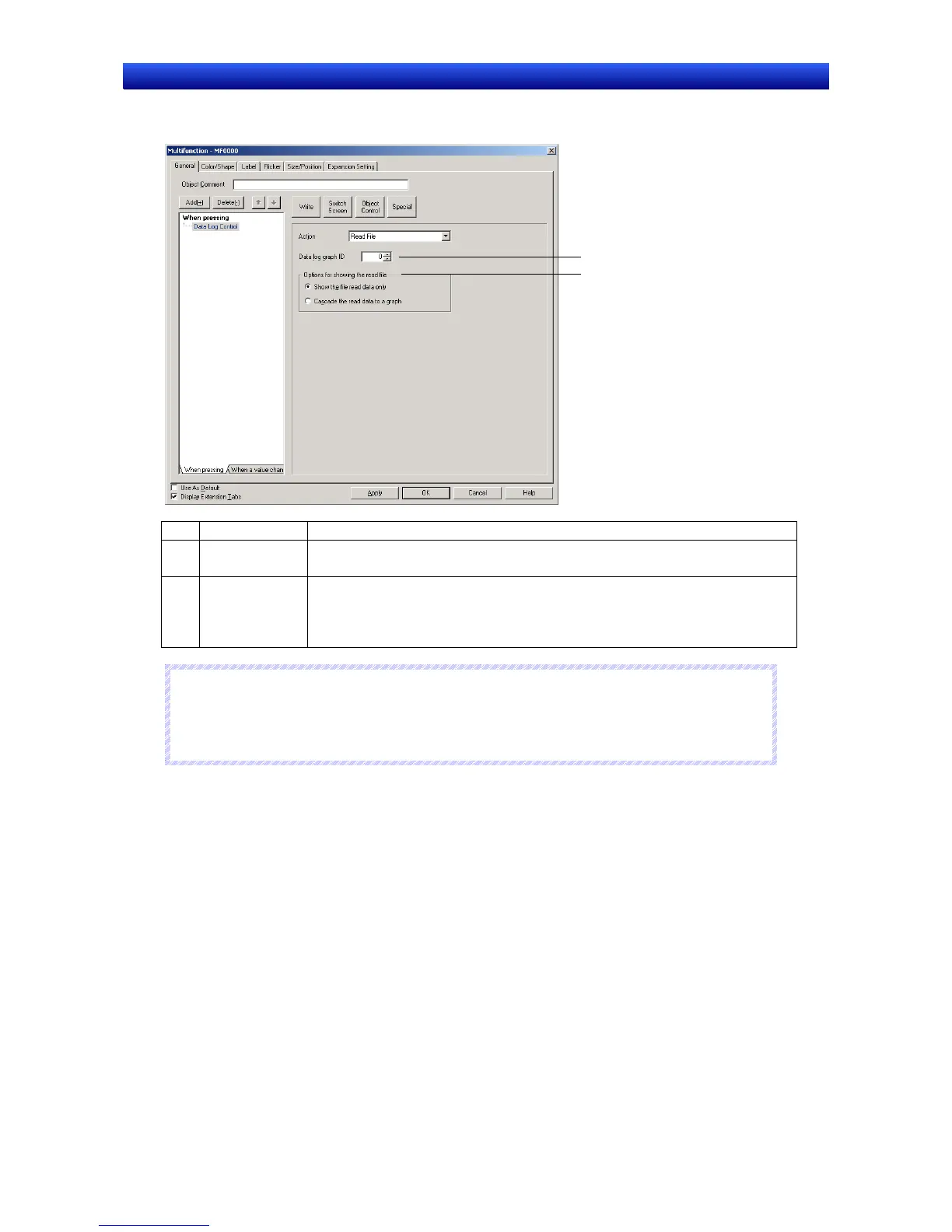

Read File
Specify the data log graph for the control operation and the display method for the graph that is read.
1
2
No. Item Details
1 Data log graph
ID
Specifies the ID number of the data log graph for the control operation.
2 Options for
showing the
read file
The graph display method for the read file can be selected from one of the fol-
lowing two options.
• Show the file read data only.
• Cascade the graph on the file read data.
N
N
N
o
o
o
t
t
t
e
e
e
♦
Data log graphs also have an Options for showing the read file Setting but the Multifunction Ob-
ject settings are enabled when executing data log graph file read from a Multifunction Object.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
