Section 2 NS Series Functions 2-11 Multifunction Objects
2-236
NS Series Programming Manual

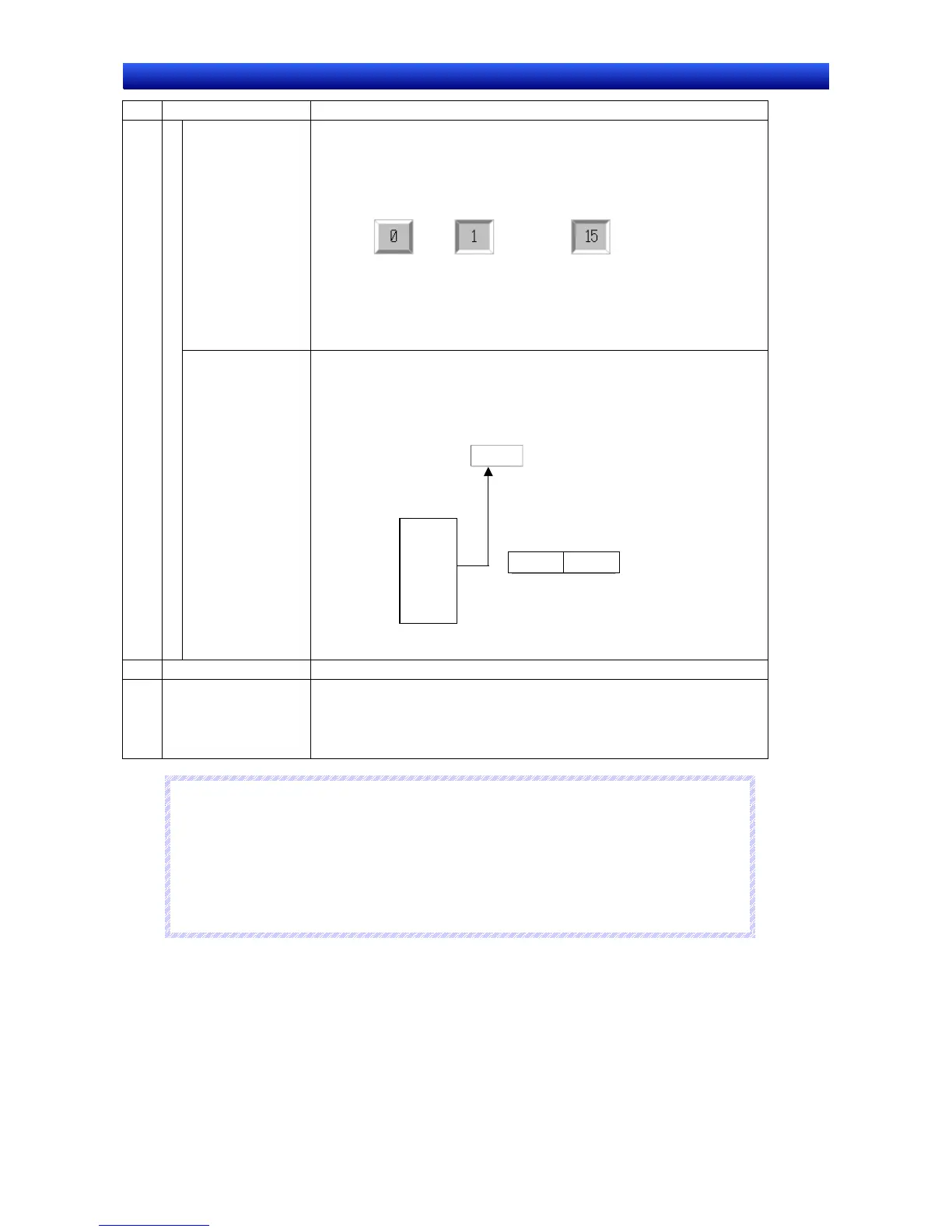

No.
Item Details
Link with word
address value
Switches the label according to the value (0 to 15) of the word address set
under Address.
Select Status 1 (Value 0) to Status 16 (Value 15) under Switch Status and
set the label to be displayed according to the word address value (0 to 15).
Displays the label
for status 16.
Displays the label
for status 1.
Value 1 Word address value 0
Displays the label
for status 2.
Value 15
….
Sets the contents of the word address as a binary value.
Labels will not be displayed when the word address is set to values other
than 0 to 15.
1
Refer to the file Reads and displays the string at the line in the text file set under File Name.
The line is specified by the value at the word address specified under Ad-
dress.
The first line is specified as 0.
Motor 0
Motor 1
Motor 2
1.
Address for file line
specification
Specifies 1
st
Multifunction Object
0
$W100
Motor 0
Labels will not be displayed when the word address is set to a value outside
the range.
2
Switch Label Switches the status for setting labels.
3
Apply String Uses the current character string for all object states.
The string is used as the label not only for the selected object, but for all
other object states as well.
If the Switch Status cannot be set, then the Apply String Button can also not
be set.
N
N
N
o
o
o
t
t
t
e
e
e
♦
The file name specifications for the text file set under File Name when Refer to the file is
selected are as follows:
File name: 8 characters + extension (txt)
The following characters can be used in the file name. Double-byte characters cannot be
used.
English alphanumerics, underscore (_), dollar sign ($), and period (.)
To Next Page
