Section 2 NS Series Functions 2-12 Display and Input Objects
2-243
NS Series Programming Manual
Text Tab Page
Sets the text attributes, such as font and color, for the display string. Refer to Text Attributes under 2-8
Common Functional Object Functions for details.
Background Tab Page
Set the fill color for the background of functional objects. Refer to Setting Colors under 2-8 Common
Functional Object Functions for details.
Keypad Tab Page
Sets the display position and size of the keypad.
1
2
3
4

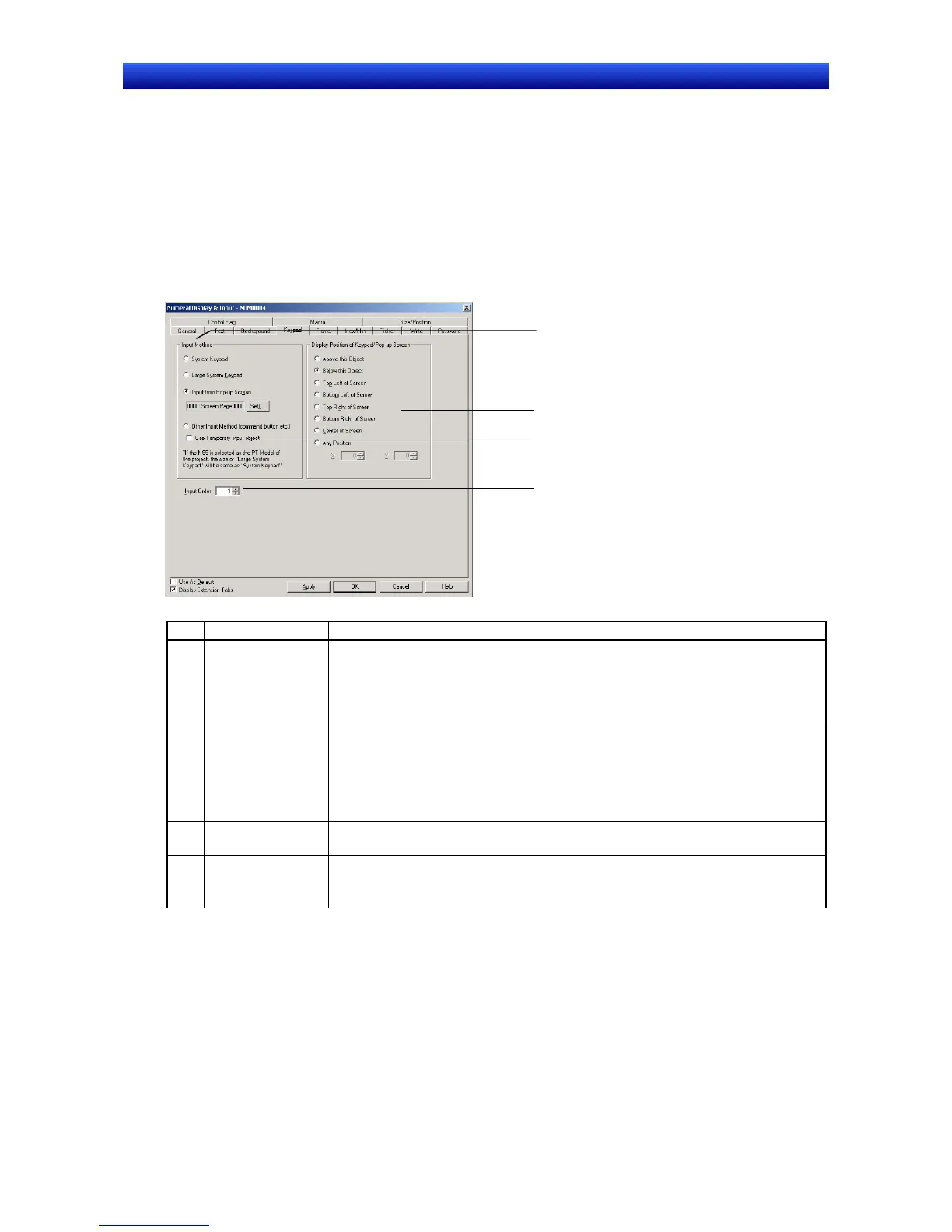

No. Setting Details
1 Input method Select one of the following input methods for numerals.
System keypad.
Large system keypad.
Input from a pop-up screen
Other input method (e.g., using Command Buttons)
2 Display Position of
Keypad/Pop-up
Screen
Select one of the following display positions for keypad and pop-up screen display
for numeric input.
Below This Object
Above This Object
Top left, bottom left, top right, bottom right, or center of screen
Any Position (The top left position of the keypad or pop-up screen is specified.)
3 Input Order Set the order for moving the input focus. Refer to 2-8 Common Functional Object
Functions.
4 Use Temporary
Input object
Select to use a temporary input object when inputting a value.
Selection is possible only when Input from Pop-up Screen or Other Input Method
(command button etc.) is set under Input method.
Command Buttons are used for input when Input from Pop-up Screen or Other Input Method are set.
For these options, Command Buttons to which Key Buttons are set must be created on the pop-up
screen or the main screen.
Numerals can be input if a numeral display and input object is pressed during PT operation. The speci-
fied pop-up screen will be displayed if Input from a pop-up screen is set.
Numerals can be input from Command Buttons created on the pop-up screen.
