Section 2 NS Series Functions 2-12 Display and Input Objects
2-262
NS Series Programming Manual

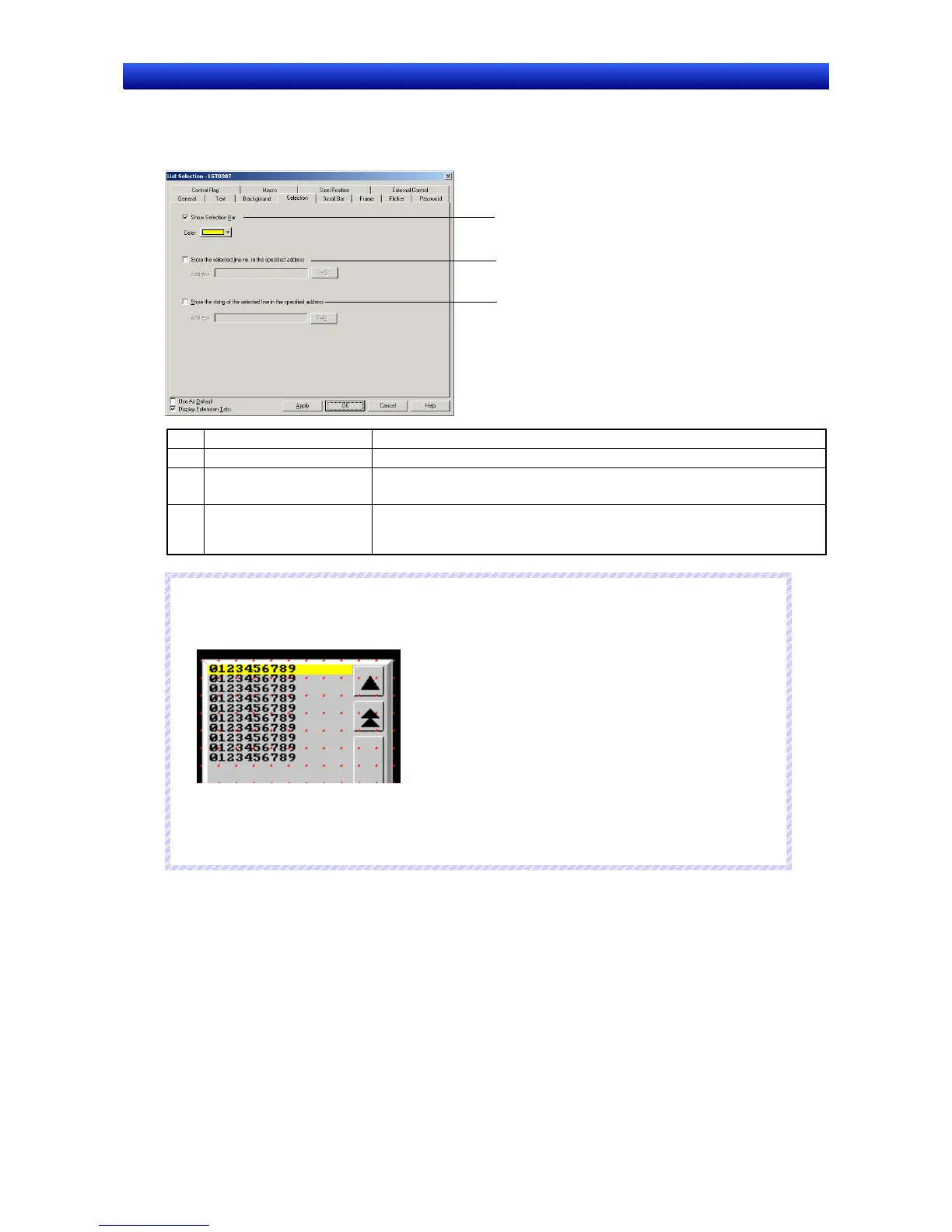

Selection Tab Page
Sets the selection bar color that is reversed during list selection and the address where the selected
line number and selected character string are stored.
1
2
3
No. Setting Details
1 Show selection bar Sets the selection bar color.
2 Store the Selected Line
No. in Specified Address
Stores the selected list line number to the specified address.
The first line is counted as 0.
3 Store the String of the
Selected Line in the
Specified Address
Stores the selected list character string to the specified address.
N
N
N
o
o
o
t
t
t
e
e
e
♦
With the NS12, NS10, NS8, or NS5, if the font size for the displayed character string is small, as
shown below, some character strings may not be able to be selected from the list.
If the font size is too small for the strings to be selected, set a larger font size so that only 1 char-
acter string is displayed for each element touch switch.
Select View – Show Touch Points to display the size and position of PT touch switches. Use this
function to compare the size of the touch switches and the list character strings.
Scroll Bar Tab Page
Sets display/no display, scroll width, and button size for the list scroll bar displayed to the right of the list.
The Scroll Up Button is displayed to the top right of the scroll bar and the Scroll Down Button is dis-
played to the bottom right.
Refer to Scroll Bars under 2-8 Common Functional Object Functions for details.
Frame Tab Page
Specify the colors and sizes of the object frame to change the shape or color when the list selection
frame is depressed or raised. Refer to Frames under 2-8 Common Functional Object Functions for de-
tails.
To Next Page
