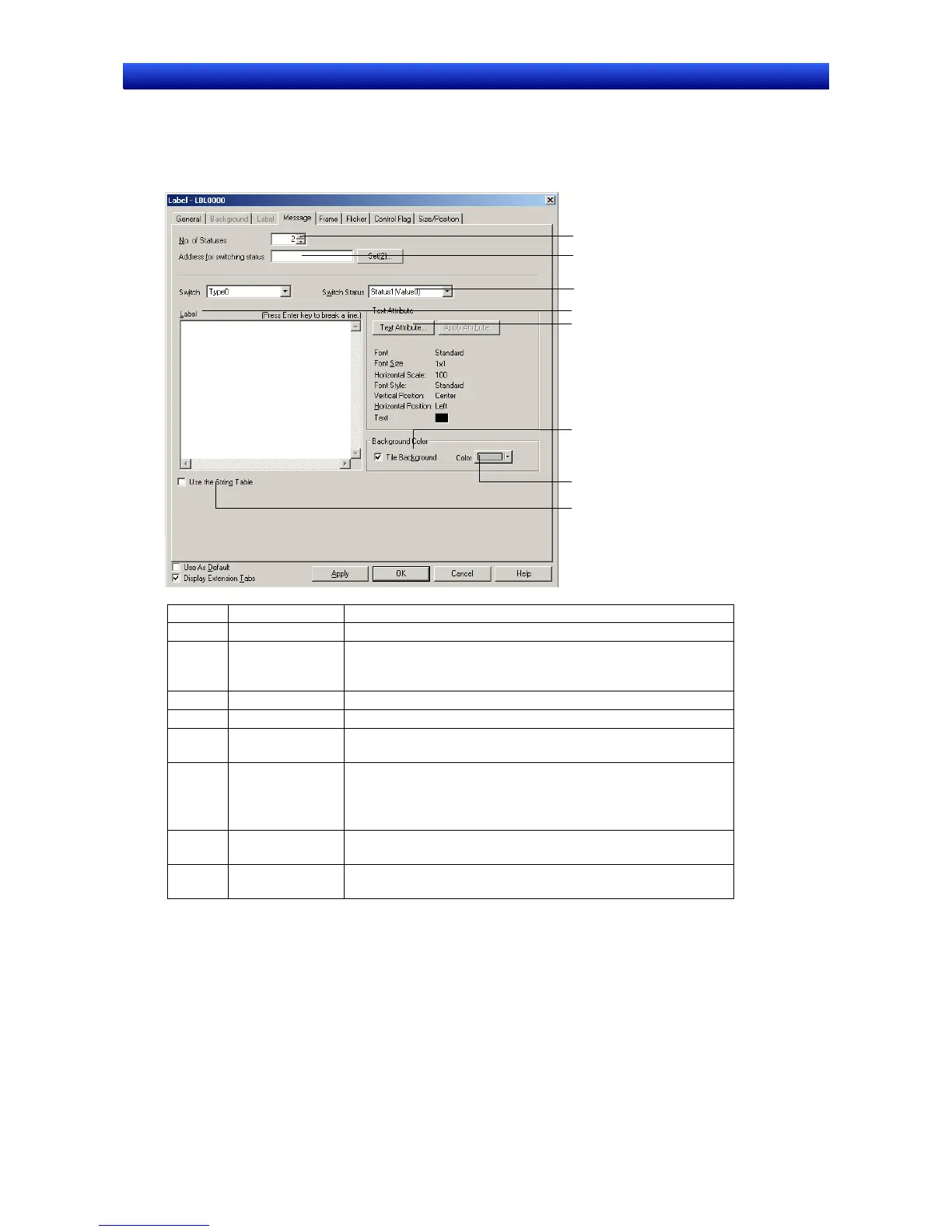

Section 2 NS Series Functions 2-13 Display
2-275
NS Series Programming Manual
Message
Sets the display data for when the message display function is used.
The display string can be directly input or selected from the string table.
Direct Input of Strings
1
2
3
4
5
6
7
8
No. Item Details
1 No. of Statuses Sets the number of statuses (2 to 10000).
2 Address for
switching status
Displays the status for the number corresponding to the value at
the set communications address. The contents of the commu-
nications address is set as a binary value.
3 Switch Status Selects the status for setting the string background.
4 Label Sets the string for each status (up to 256 characters).
5 Text Attribute Specifies the text attributes for each status. Refer to 2-8-6 Text
Attributes for details on settings.
6 Tile Background Select this checkbox to fill the background.
Deselect this option to leave the background clear. If this
checkbox is deselected, the background will be clear for all
statuses.
7 Color Sets the background color for each status if the Fill background
checkbox is selected.
8 Use the String
Table
Select this checkbox to select a label string from the strings
registered in the string table.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
