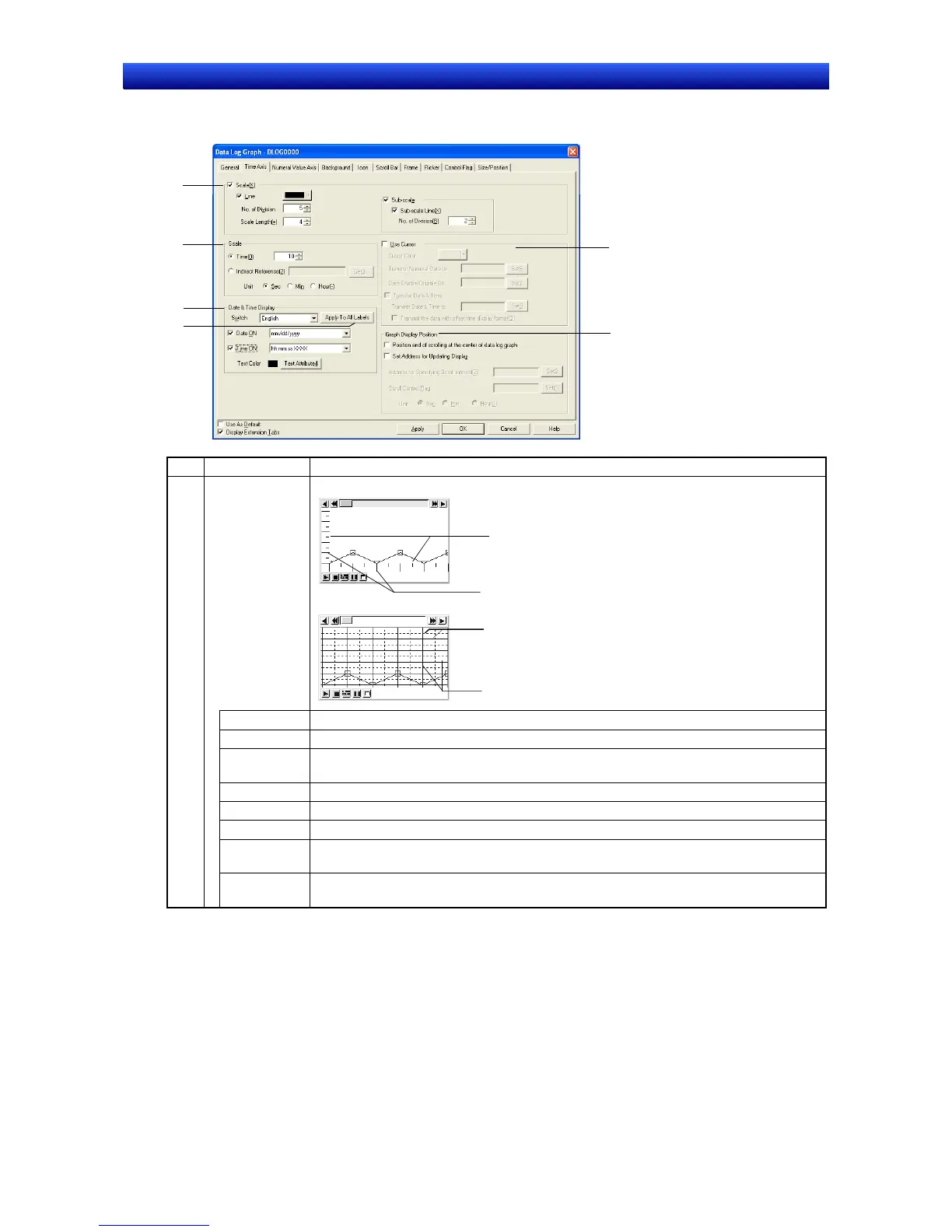

Time Axis Tab Page
Contains the settings for the data log graph’s time axis.
1
2
3
5
6
4
No. Setting Details
1 Scale Makes the settings for the time axis.
Auxiliary gradations (sub-scales):
Used to further separate gradations.
Gradations: Basic gradations
Auxiliary gradation (sub-scale) lines:
Dotted lines drawn horizontally or
vertically from auxiliary gradations.
Gradation lines:
Dotted lines drawn horizontally or
vertically from gradations.
Scale Select Scale to display scale.
Line Select Line to display scale lines.
No. of
division
Sets the number of divisions between 1 and 99.
Scale color Sets the scale color (from 256 available colors).
Scale length Sets the scale length between 4 and 32. (Units: Dots)
Sub-scale Sets whether or not there will be sub-scale. Select Sub-scale to display sub-scale.
Sub-scale
Line
Select Sub-scale Line to display the auxiliary gradation (sub-scale) lines.
No. of
division
Sets the number of divisions between 1 and 99.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
