Omron NS Programming Manual

Section 2 NS Series Functions 2-16 Broken-line Graphs
2-372
NS Series Programming Manual

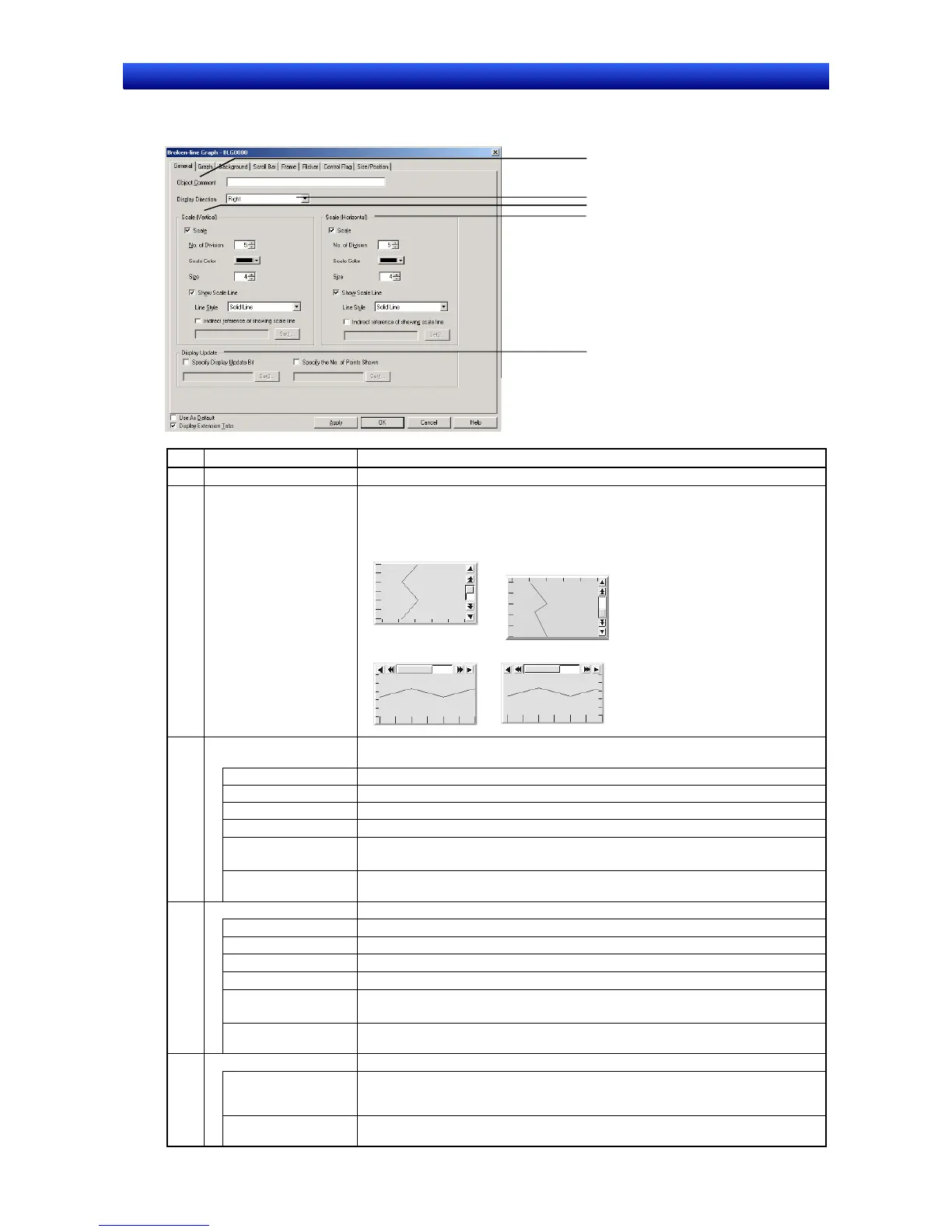

General Tab Page
Sets the display direction and gradations for broken-line graphs.
1
2
3
4
5
No. Setting Details
1 Object Comment Sets an explanatory comment for the pasted object (up to 32 characters).
2 Display direction Select a display direction of Up, Down, Left, or Right. The axis for showing the number
of graph points monitored (indicated by a in the diagram) and the axis for showing the
values for each graph point (indicated by b in the diagram) depends on the set display
direction.
• Up
b
a
• Down
a
b
• Left
a
b
• Right
a
b
Scale (Vertical) Sets whether or not scales will be used on axes showing the number of graph points
being monitored.
No. of division Sets the number of division between 1 and 99.
3
Scale color Sets the scale color (from 256 available colors).
Size
Sets the length of the scale between 4 and 32 (dots).
Show Scale Line Sets whether or not to display the scale.
Line style Select from the five line types listed below.
Solid line, dotted line, broken line, 1-dot chain line, or 2-dot chain line
Indirect reference of
showing scale line
If this option is selected the scale is displayed when the specified address is ON.
Scale (Horizontal) Sets whether or not scales will be used on axes showing the number of graph points.
No. of division
Sets the number of division between 1 and 99.
4
Scale color
Sets the scale color (from 256 available colors).
Size
Sets the length of the scale between 4 and 32 (dots).
Show Scale Line Sets whether or not to display the scale.
Line style Select from the five line types listed below.
Solid line, dotted line, broken line, 1-dot chain line, or 2-dot chain line
Indirect reference of
showing scale line
If this option is selected the scale is displayed when the specified address is ON.
Display update The broken-line graph display can be updated (refreshed).
Specify display Update
bit
Normally, the display is updated whenever a value changes.
If Specify display update bit is selected, the display will be updated only when the
specified address turns ON.
5
Specify the No. of
points shown
The number of bits from the beginning that will be displayed can be specified.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
