Omron NS Programming Manual

Section 2 NS Series Functions 2-16 Broken-line Graphs
2-373
NS Series Programming Manual
N
N
N
o
o
o
t
t
t
e
e
e
♦ Refer to the following diagram for information on scales and scale lines.
Gradation lines:
Lines drawn vertically from gradations.
Gradations:
Basic gradations that divide graphs.

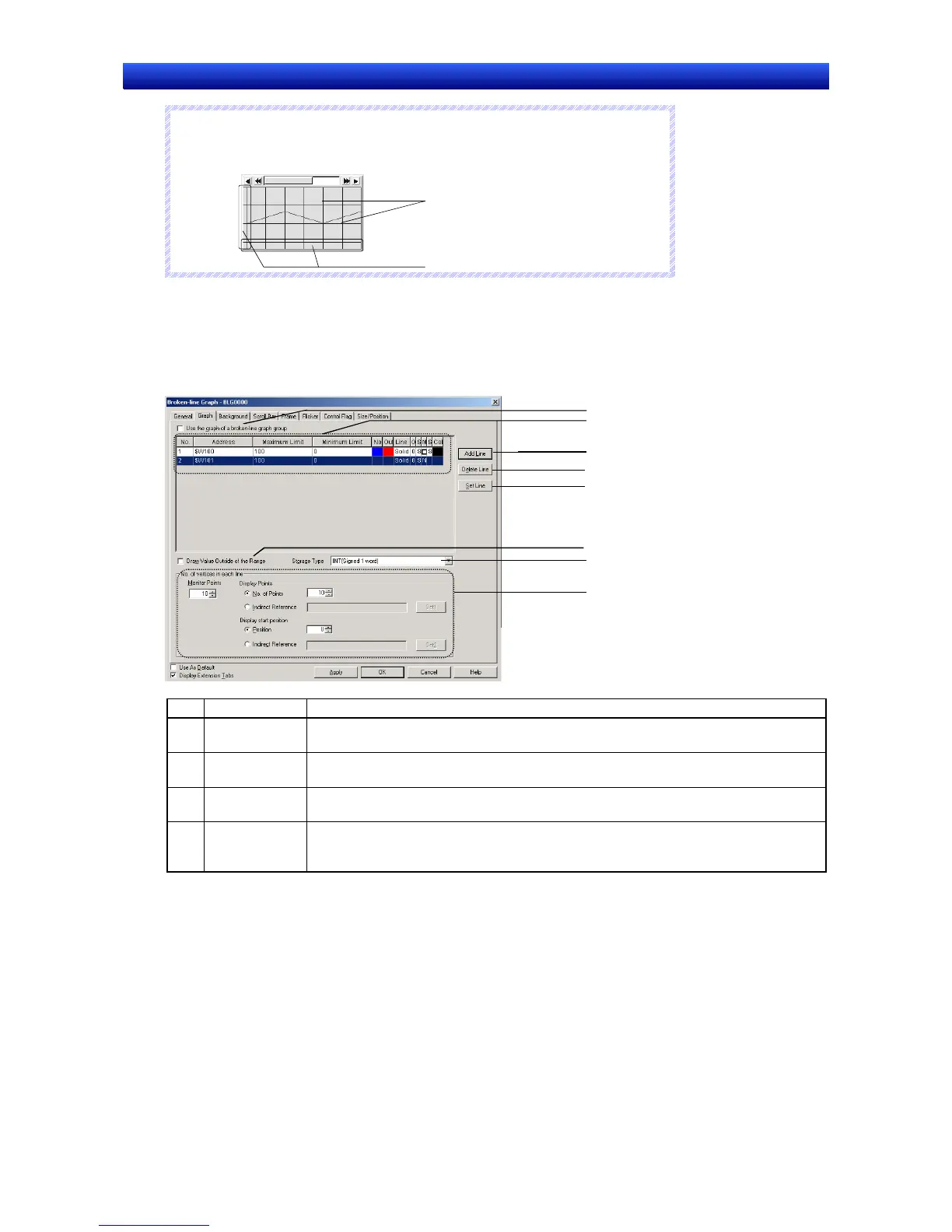

Graph Tab Page
Displays a list of information about lines displayed on broken-line graphs. Graph lines can be added,
deleted, or set on the Graph Tab Page.
Displaying Graph Lines Registered in an Individual Graph
8
1
2
3
4
5
6
7
No. Setting Details
1 Graph list Displays a list of the lines that are displayed on currently set graphs. Lines are added,
deleted, and set by pressing the
Add Line, Delete Line, and Set Line Buttons.
2 Add Line
Adds and registers lines for display on graphs. Press the
Add Line Button to display
the Line Settings Dialog Box. Refer to
Line Setting Dialog Box for further information.
3 Delete Line Deletes the selected line or lines on the graph list, including the settings information for
those lines.
4 Set Line
Sets the line attributes. Select a line on the graph list and press the
Set Line Button to
display the Line Setting Dialog Box. Refer to
Line Setting Dialog Box for further infor-
mation.

Omron NS Specifications

General

Power Supply	24 VDC
Display Size	5.7 to 12.1 inches (depending on the model)
Resolution	320 x 240 to 800 x 600
Touchscreen Type	Resistive
Display Type	TFT LCD
Communication Interfaces	RS-232C, RS-422/485, Ethernet, USB
Memory	Flash memory
Operating Temperature	0 to 50°C (depending on the model)
Storage Temperature	-20°C to 60°C
Protection Rating	IP65 (front panel)
Dimensions	Varies depending on the model
Weight	Varies depending on the model
CPU	Proprietary Omron CPU (performance varies depending on the model)
