5-18

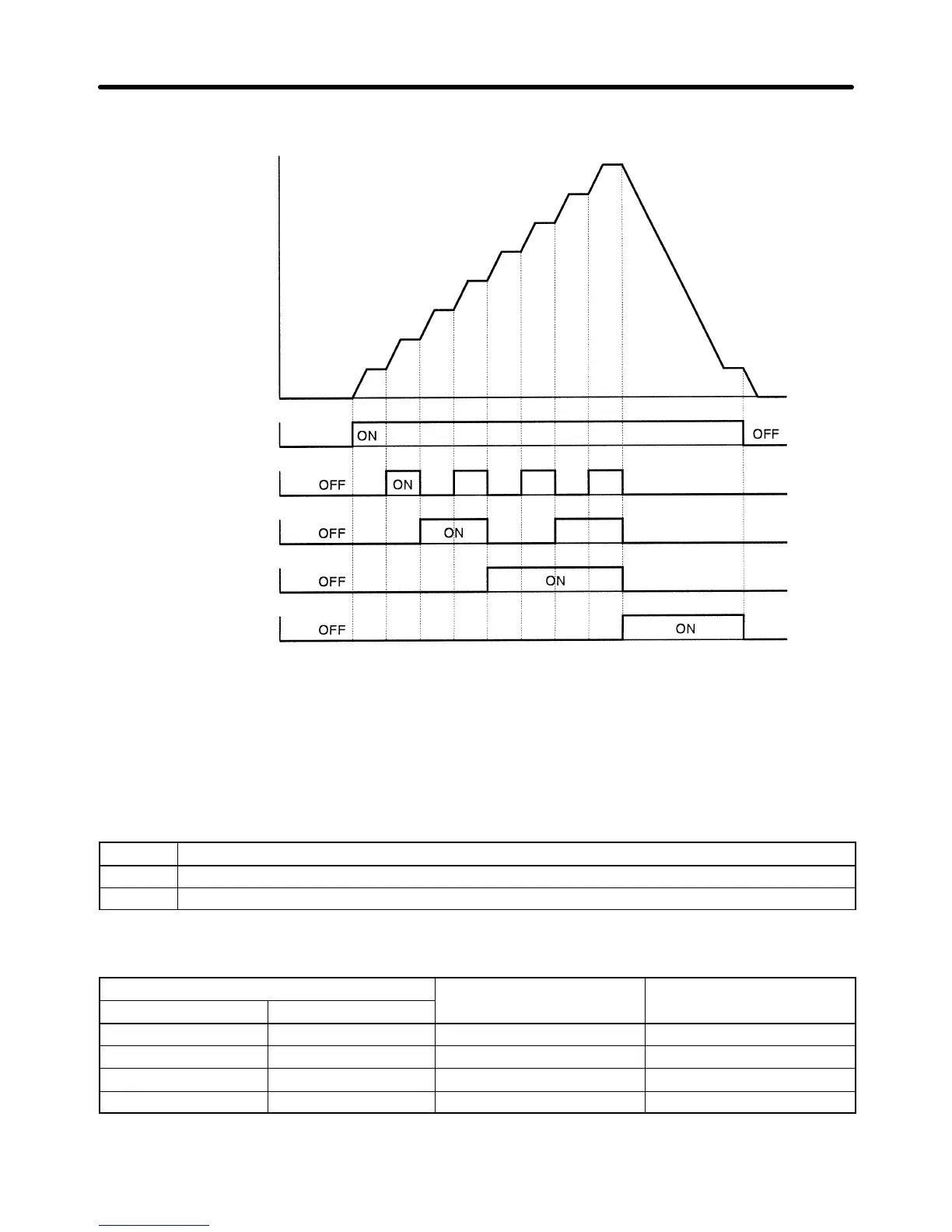

Timing Chart

Run/Stop

Multi-step

Reference 1

Multi-step Reference 2

Multi-step Reference 3

Jog Reference

Reference 1

Main-speed

Reference 2

Auxiliary-speed

Reference 3

Reference 4

Reference 5

Reference 6

Reference 7

Reference 8

Jog Reference

Note The jog reference setting has priority over the multi-step reference settings.

D Setting “7” and “1A”: Multi-Accel/Decel Time Selector 1 and 2

Four

acceleration times and four deceleration times can be set in the 3G3FV

. Set “Multi-Accel/Decel 1

and

2” in multi-function inputs and change the status of these inputs to switch between these accelera

tion and deceleration times.

Setting Function

7 Multi-Accel/Decel 1 (multi-accel/decel time selector 1)

1A Multi-Accel/Decel 2 (multi-accel/decel time selector 2)

The following table shows which acceleration and deceleration times are selected by each possible

combination of acceleration/deceleration time selectors 1 and 2.

Multi-accel/decel time selector

Acceleration time Deceleration time

1 2

OFF or not set OFF or not set Acceleration time 1 (C1-01) Deceleration time 1 (C1-02)

ON OFF or not set Acceleration time 2 (C1-03) Deceleration time 2 (C1-04)

OFF or not set ON Acceleration time 3 (C1-05) Deceleration time 3 (C1-06)

ON ON Acceleration time 4 (C1-07) Deceleration time 4 (C1-08)

Note The acceleration and deceleration times can be changed while the Inverter is operating.

Basic Operation Chapter
