Remove a Front Indicator Panel

5.

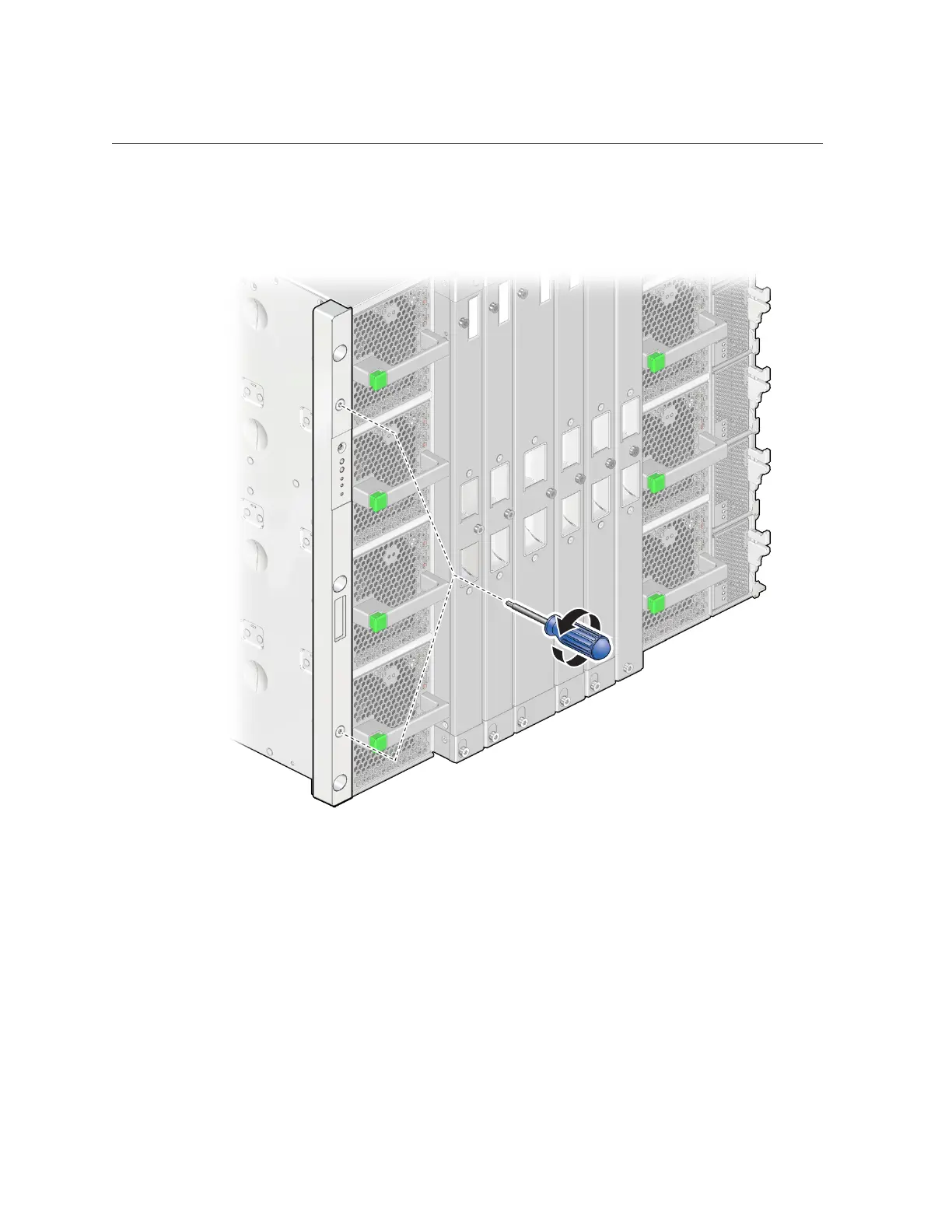

Remove the Torx screws and loosen the captive screws to remove the faceplate.

Servicing the Front Indicator Panel 219
