Remove a Front Indicator Panel

6.

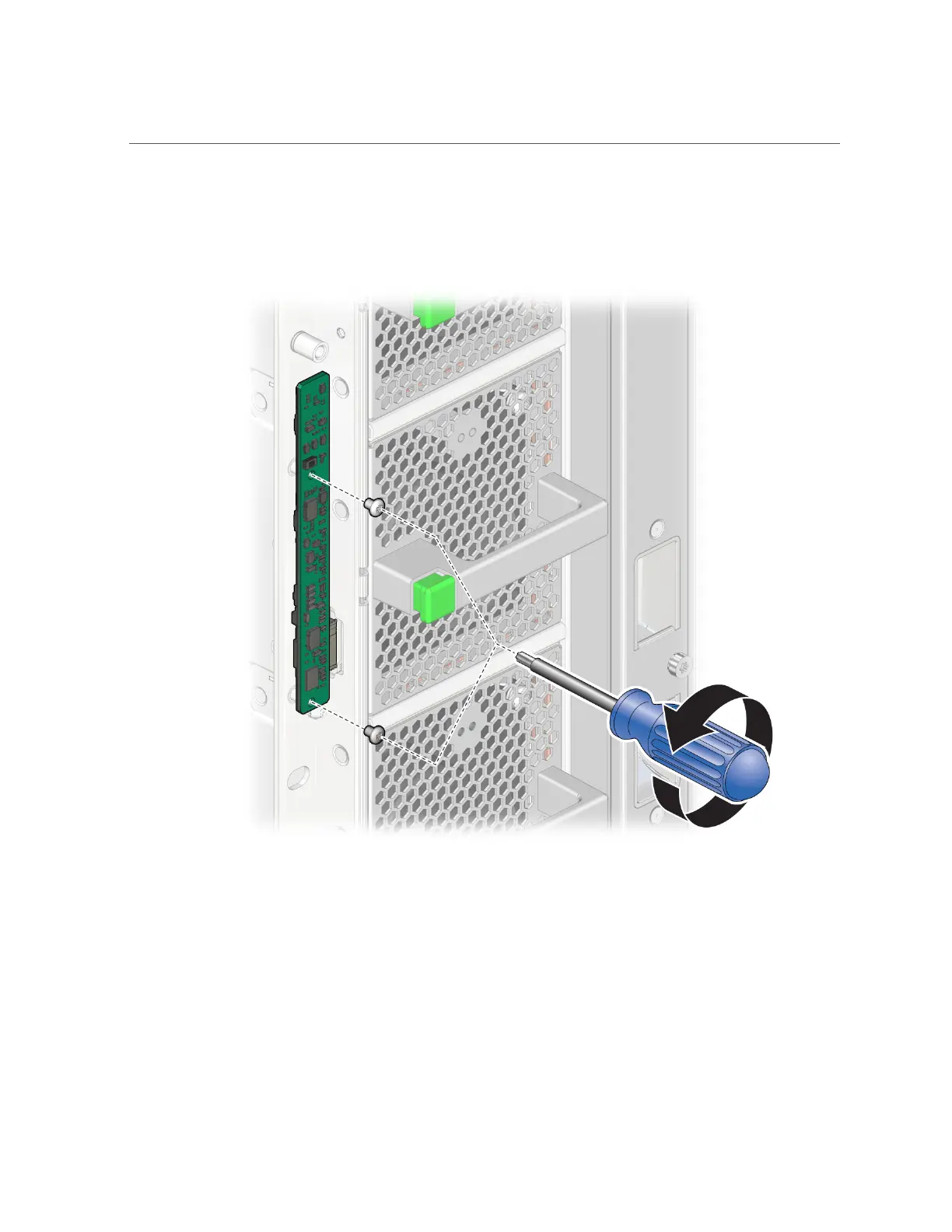

With the faceplate removed, remove the No. 1 Phillips screws to free the

indicator panel from the chassis.

220 SPARC M8 and SPARC M7 Servers Service Manual • September 2017
