Remove a PCIe Riser From PCIe Slot 1 or 2
100 Oracle Server X6-2 Service Manual • June 2016
4.

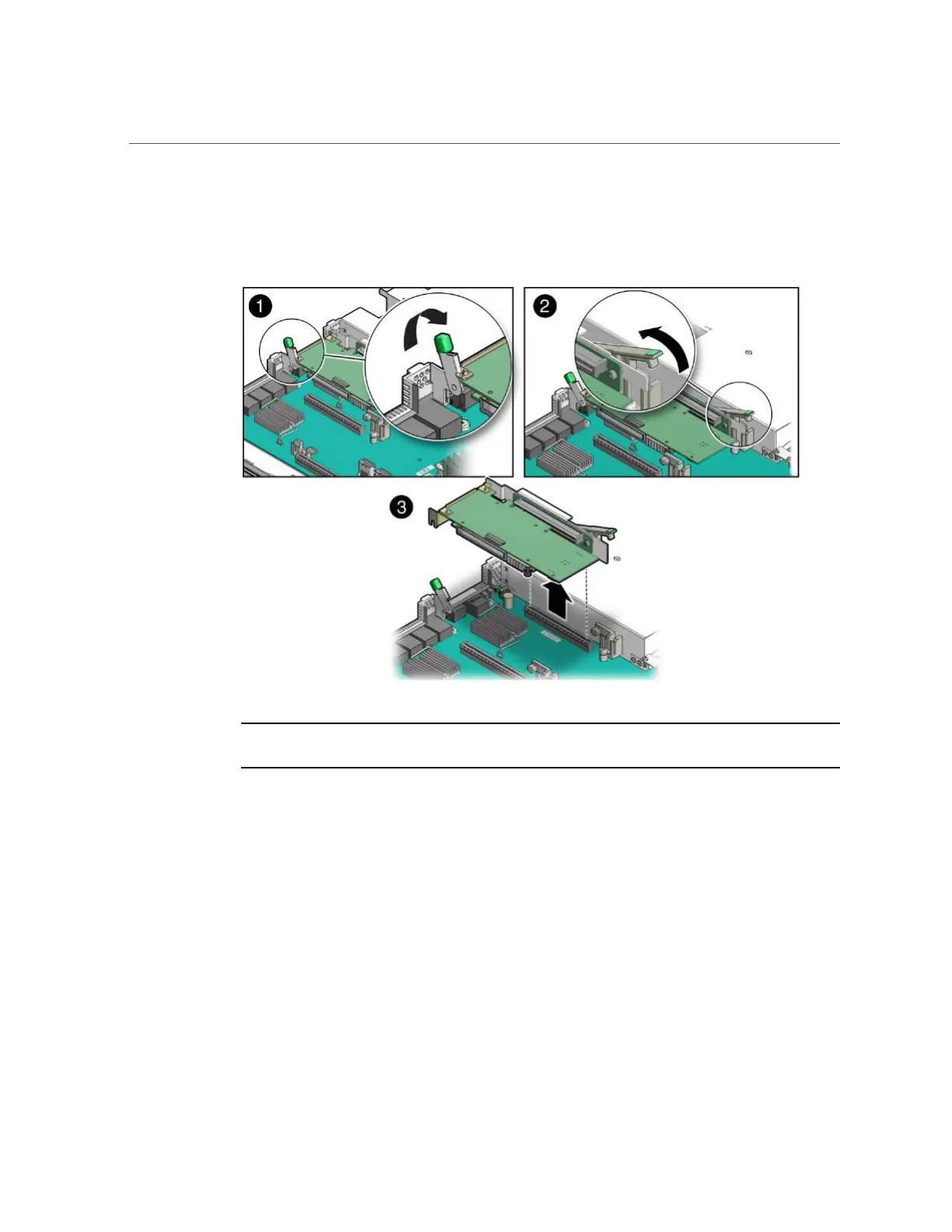

Lift the green-tabbed latch on the rear of the server chassis next to the
applicable PCIe slot to release the rear bracket on the PCIe card [1].
Note - If the riser does not have a PCIe card installed, then lift the latch to release the PCIe slot
filler panel.
5.
Lift the green-tabbed riser release lever on the PCIe riser with one hand and use
your other hand to remove the riser from the motherboard connector [2, 3].
6.
If there is a PCIe card installed in the riser, place the riser on an antistatic mat
and note the slot in which the PCIe riser was originally installed; otherwise, set
the PCIe riser aside.
Related Information
■
“Install a PCIe Riser Into PCIe Slot 1 or 2” on page 101
