Servicing PCIe Risers (CRU)
98 Oracle Server X6-2 Service Manual • June 2016
■
“Install the PCIe Riser Into PCIe Slots 3 and 4” on page 105
Related Information
■
“Servicing PCIe Cards (CRU)” on page 108
PCIe Riser Location and Differences
The PCIe riser that installs in PCIe slots 3 and 4 is different than the risers in PCIe slots 1 and 2.
The riser for slots 3 and 4 supports two cards: a standard PCIe card and the internal HBA card.
Do not attempt to install the PCIe riser for PCIe slots 3 and 4 in slots 1 or 2, and vice versa.

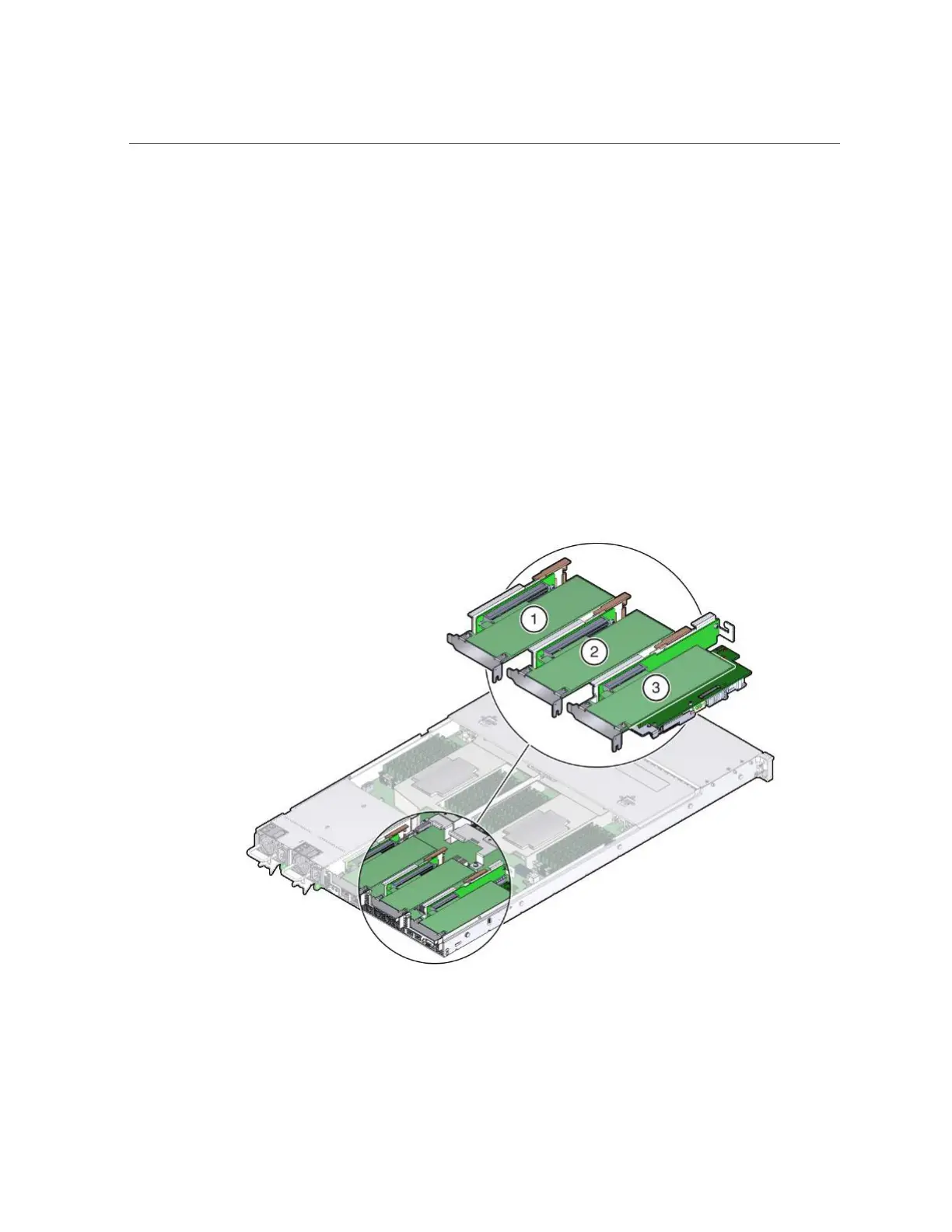

FIGURE 21
PCIe Riser Locations
Figure Legend
1
PCIe riser and installed PCIe card or the optional Oracle PCIe NVMe switch card in slot 1 (This slot is
nonfunctional in single-processor systems.)
2
PCIe riser and installed PCIe card in slot 2
