Install a DIMM
Servicing CRUs That Require Server Power-Off 95
FIGURE  20

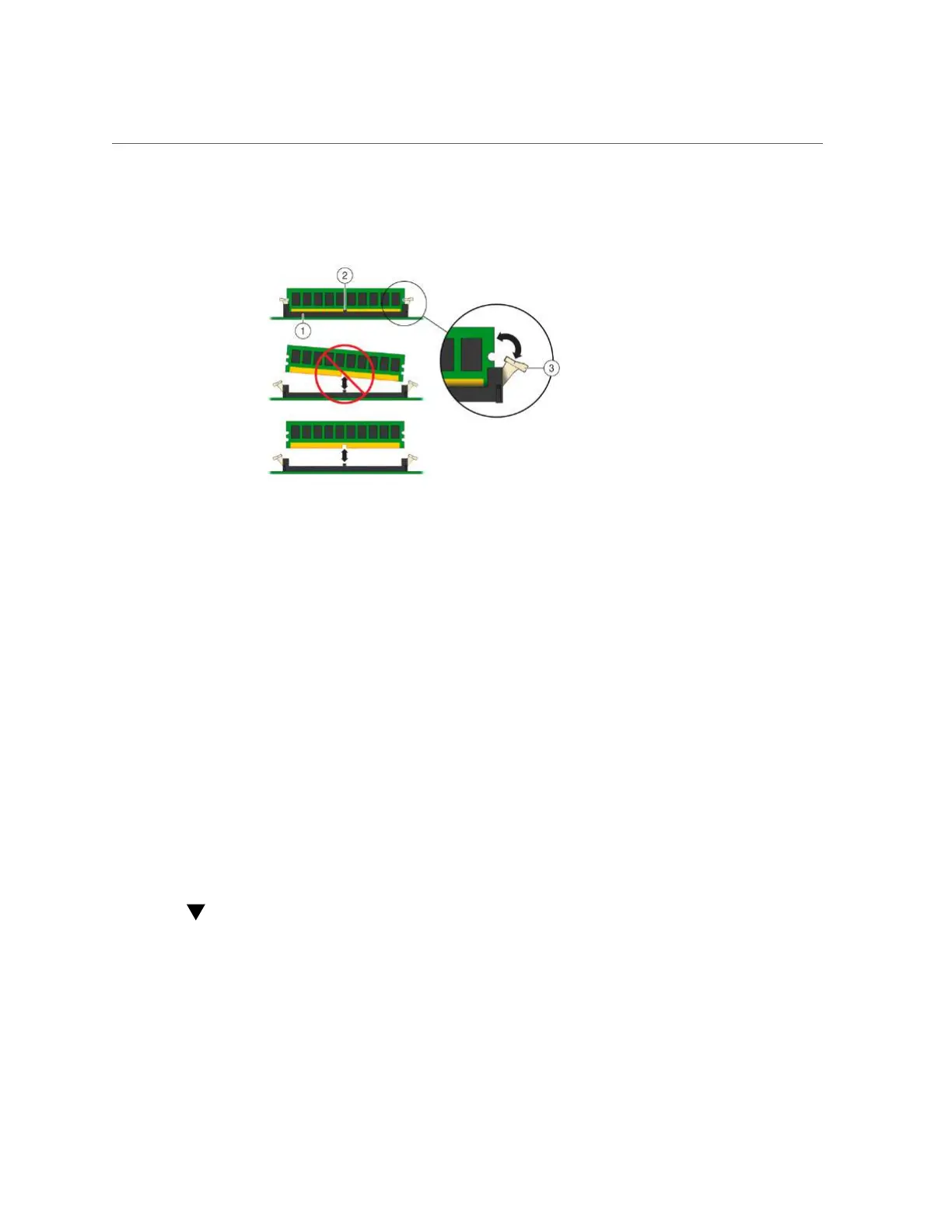

DIMM Socket Release and Alignment
Figure Legend
1
DIMM connector socket
2
DIMM connector key
3
DIMM ejector lever
b.
Carefully lift the DIMM straight up to remove it from the socket.
4.
Replace each failed DIMM with either another DIMM of the same rank size (quad
rank or dual rank) or leave the socket empty.
For DIMM replacement instructions, see “Install a DIMM” on page 95.
Related Information
■
“DIMM and Processor Physical Layout” on page 86
■
“Install a DIMM” on page 95
Install a DIMM
1.
Unpack the replacement DDR4 DIMM and place it on an antistatic mat.
2.
Ensure that the replacement DDR4 DIMM matches the size of the DIMM it is
replacing.
