USB Ports
Identifying the Server Ports 199
TABLE 23
Video Connector Signals
Pin Signal Description Pin Signal Description
1 Red Video 9 [KEY]
2 Green Video 10 Sync Ground
3 Blue Video 11 Monitor ID - Bit 1
4 Monitor ID - Bit 2 12 Monitor ID - Bit 0
5 Ground 13 Horizontal Sync
6 Red Ground 14 Vertical Sync
7 Green Ground 15 N/C (Reserved)
8 Blue Ground
Related Information
■
“Server Back Panel View” on page 16
■
“Disconnect Cables From the Server” on page 56
■
“Reconnect Data Cables and Power Cords” on page 193

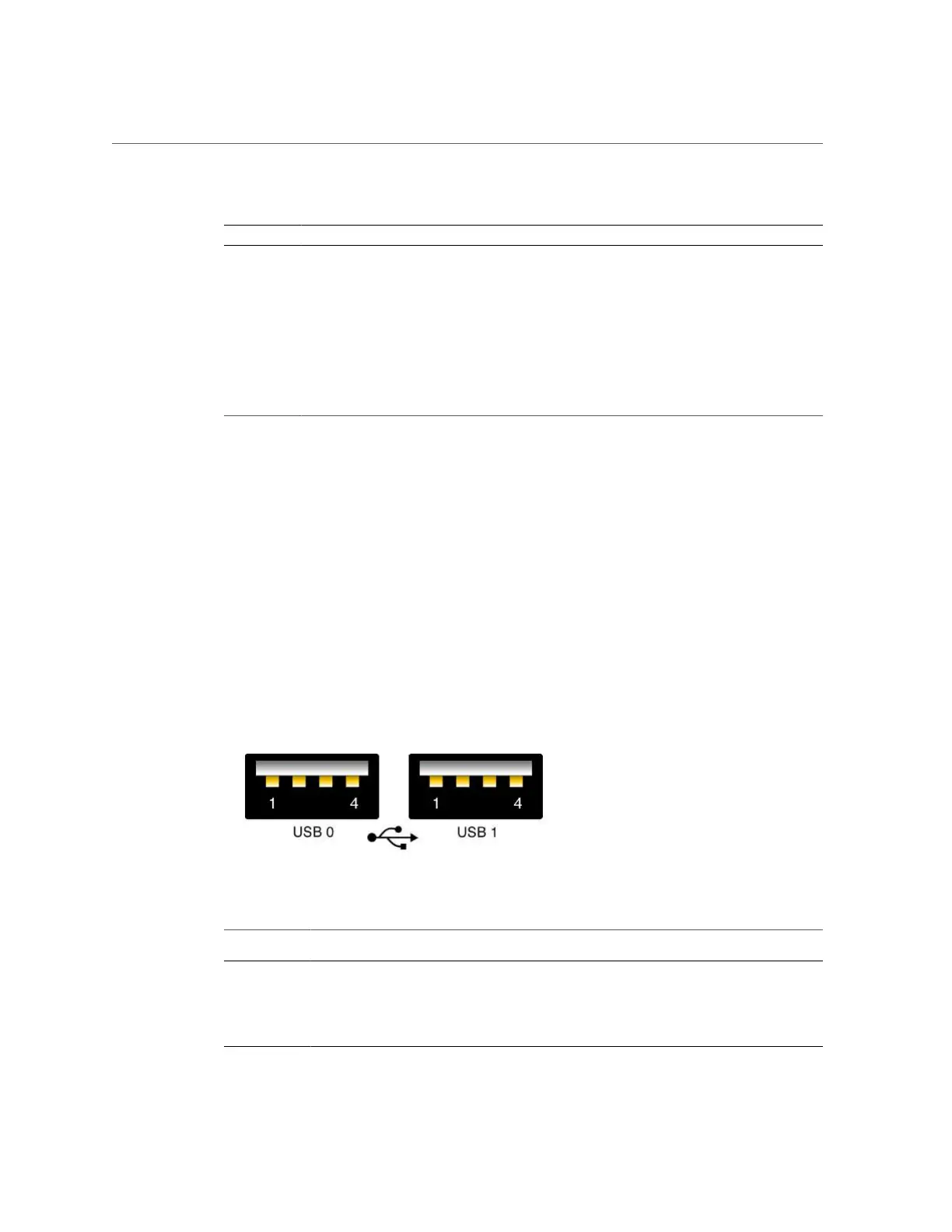

USB Ports
The server has six USB ports for attaching supported USB 2.0-compliant devices. There are two
USB ports on the server front panel, two on the rear panel, and two on the motherboard.
TABLE 24
USB Port Signals
Pin
Signal Description
1 +5 V
2 DAT-
3 DAT+
4 Ground
