Network Management Port
196 Oracle Server X6-2 Service Manual • June 2016
TABLE 17
10-GbE Port Signals
Pin Signal Description Pin Signal Description
1 Transmit/Receive Data 0 + 5 Transmit/Receive Data 2 –
2 Transmit/Receive Data 0 – 6 Transmit/Receive Data 1 –
3 Transmit/Receive Data 1 + 7 Transmit/Receive Data 3 +
4 Transmit/Receive Data 2 + 8 Transmit/Receive Data 3 –
Related Information
■
“Server Back Panel View” on page 16
■
“Disconnect Cables From the Server” on page 56
■
“Reconnect Data Cables and Power Cords” on page 193

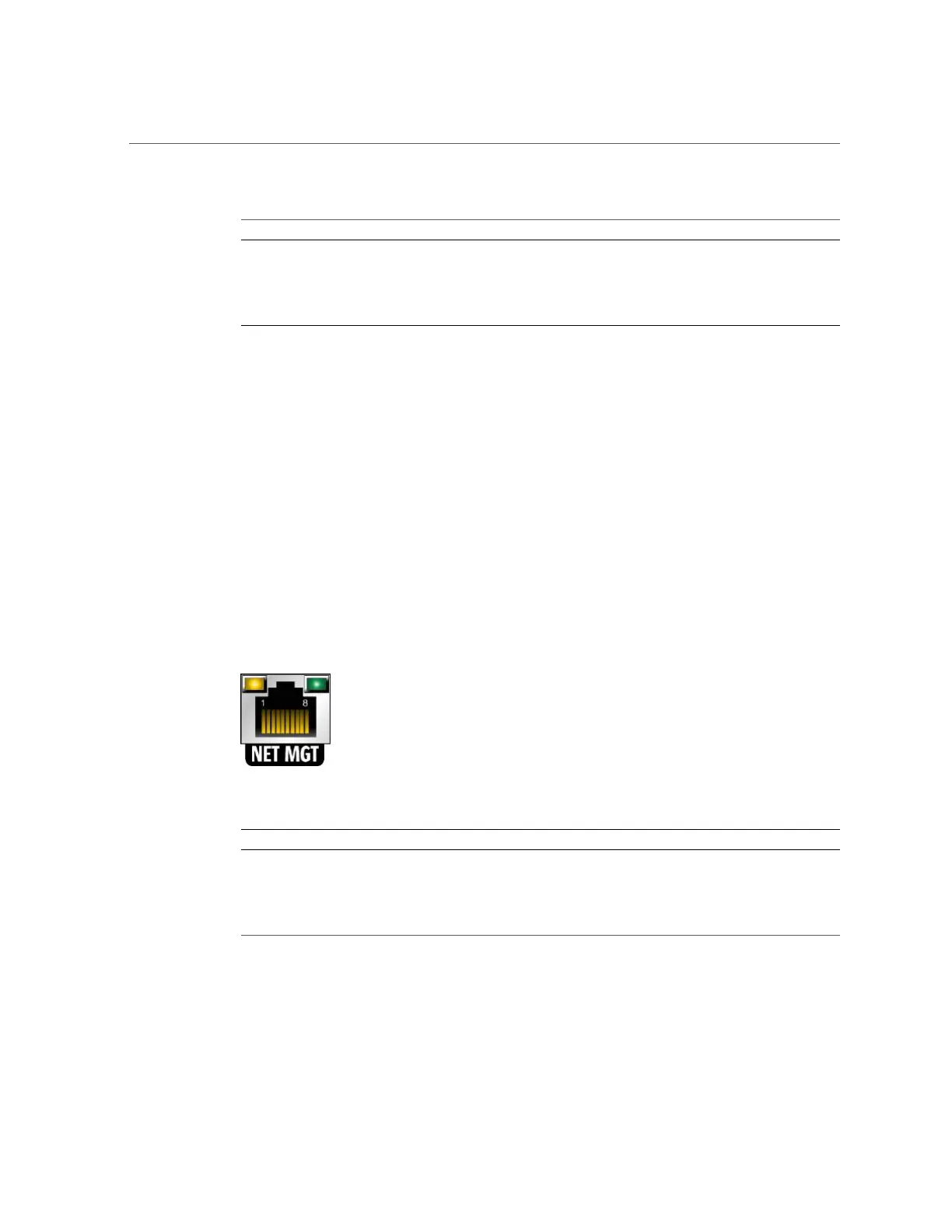

Network Management Port
The server has one 10/100/1000BASE-T Ethernet management domain interface, labeled NET
MGT. For information on configuring this port for managing the server with Oracle ILOM,
refer to the Oracle Integrated Lights Out Manager (ILOM) 3.2 Documentation Library at http:
//www.oracle.com/goto/ilom/docs.
TABLE 18
Network Management Port Signals
Pin Signal Description Pin Signal Description
1 Transmit Data + 5 Common Mode Termination
2 Transmit Data – 6 Receive Data –
3 Receive Data + 7 Common Mode Termination
4 Common Mode Termination 8 Common Mode Termination
Related Information
■
“Server Back Panel View” on page 16
■
“Disconnect Cables From the Server” on page 56
■
“Reconnect Data Cables and Power Cords” on page 193
