Install the NVMe Cables
180 Oracle Server X6-2 Service Manual • June 2016
Install the NVMe Cables
Caution - The NVMe cables should be installed only by an Oracle qualified service technician.
1.

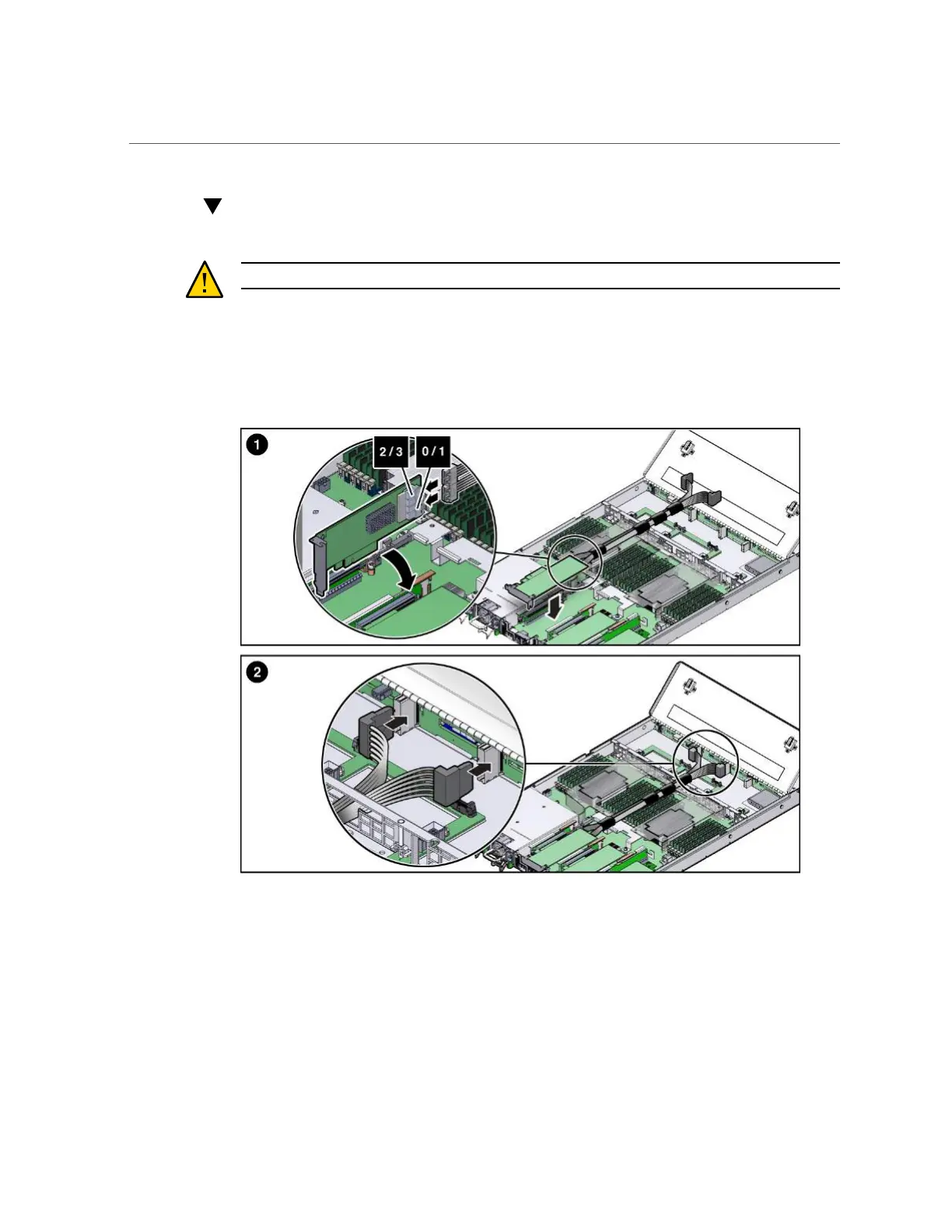

Guide the switch card cables through the chassis mid-wall and place them in
cable trough in the air baffle and in the cable trough in the metal bracket just to
the rear of the DIMMs [1].
2.
Connect the cables to the switch card. [1].
3.
Install the PCIe riser with the switch card into PCIe slot 1.
See “Install a PCIe Riser Into PCIe Slot 1 or 2” on page 101.
4.
Connect the switch card cables to the disk backplane [2].
5.
Install the two middle server fan modules.
