Remove the Disk Backplane
152 Oracle Server X6-2 Service Manual • June 2016
3.

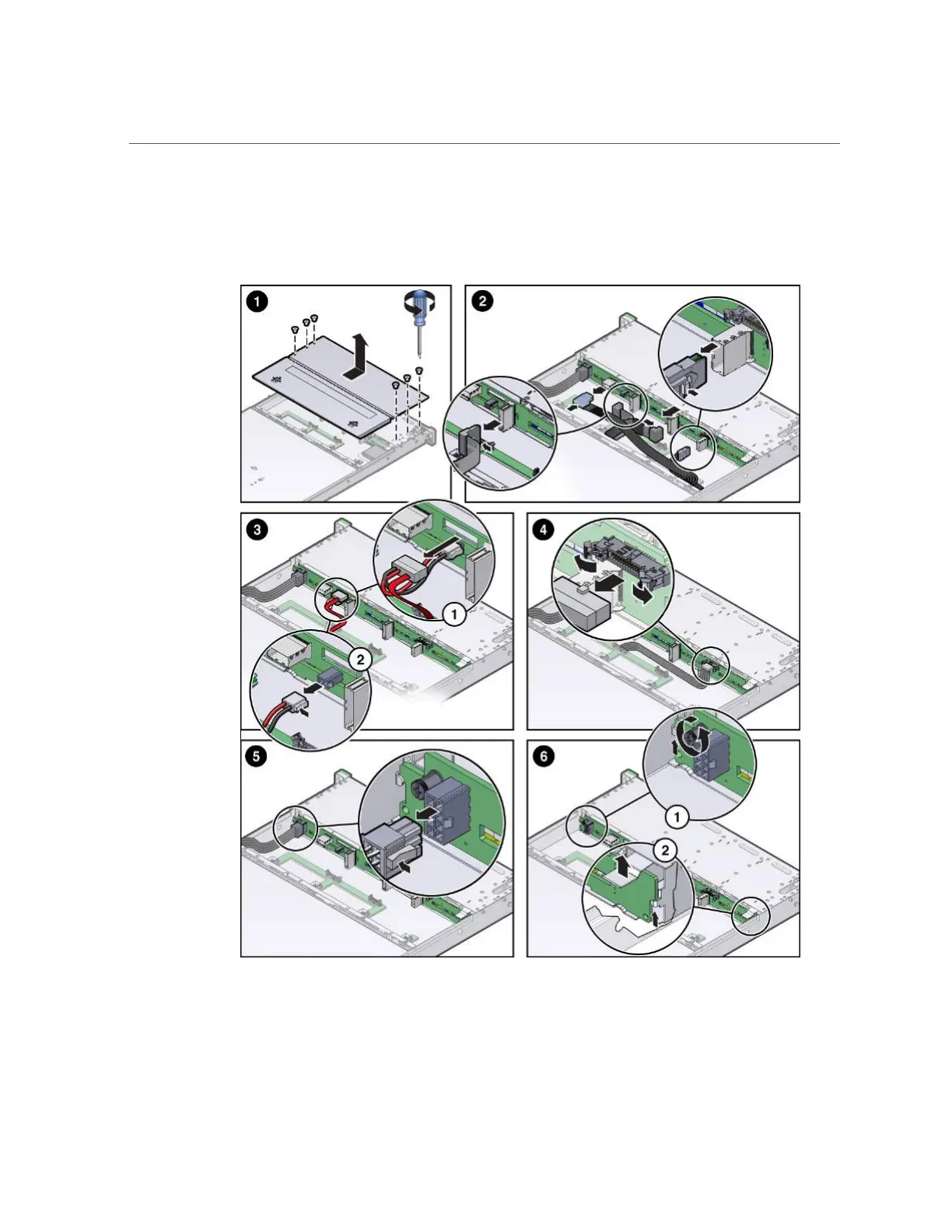

Remove six Philips screws from the disk cage cover and slide toward the front
of the server and lift up to remove it [frame 1].
4.
Disconnect the SAS cables and the switch card cables (if present) from the disk
backplane [2].
