Remove the Front Indicator Module
160 Oracle Server X6-2 Service Manual • June 2016
See “Open the Server Fan Door” on page 59.
c.
Slide the storage drive cage cover forward (toward the front of the server)
and lift it up.

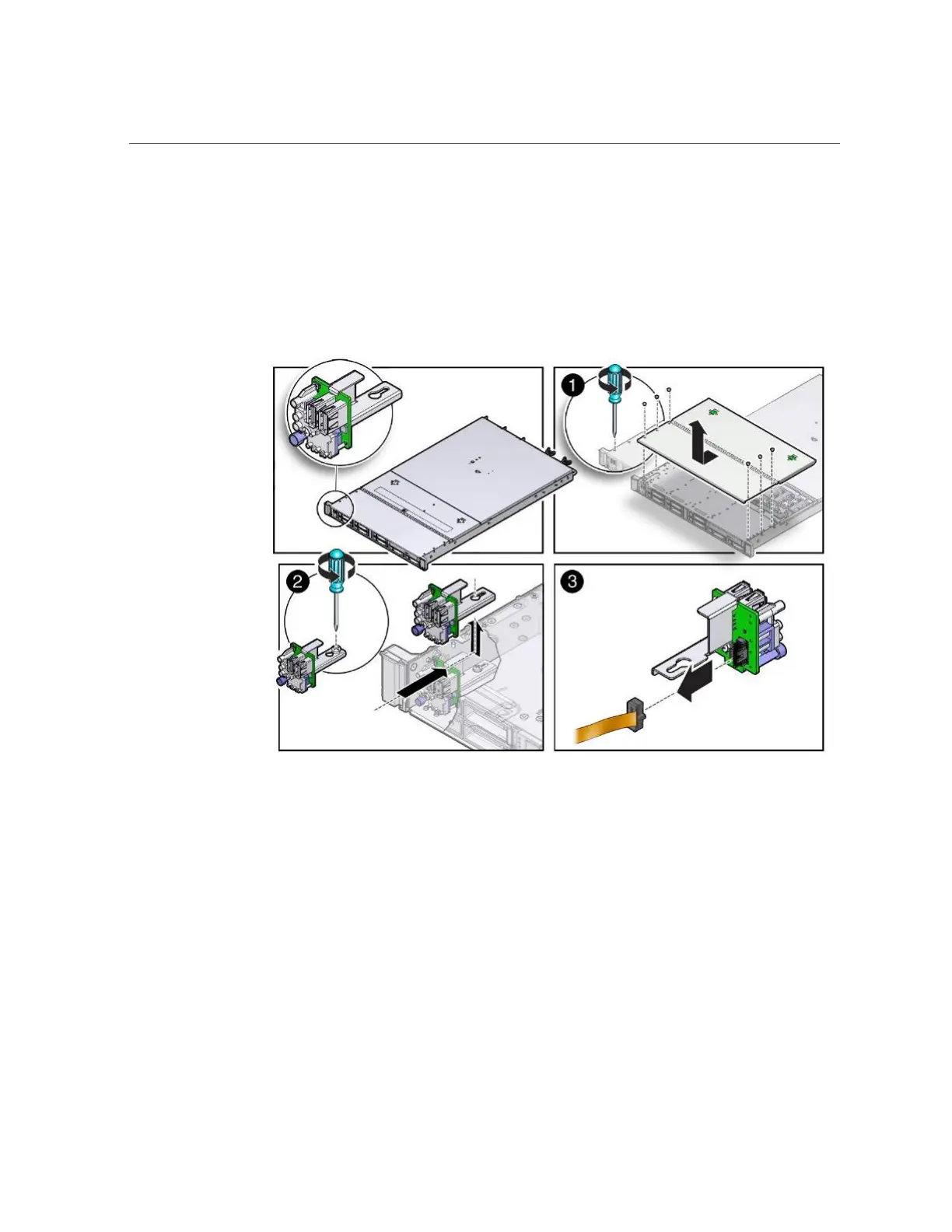

FIGURE  31
Removing the Front Indicator Module
3.
Loosen the screw that secures the front indicator module (FIM) assembly to the
server chassis [2].
4.
Carefully slide the FIM assembly toward the rear of the server enough to lift it
over the Phillips screw and out of the server [2].
5.
Disconnect the FIM cable from the FIM assembly and set the assembly aside [3].
6.
Continue to “Install the Front Indicator Module ” on page 161.
Related Information
■
“Install the Front Indicator Module ” on page 161
