Remove the Motherboard
164 Oracle Server X6-2 Service Manual • June 2016
3.

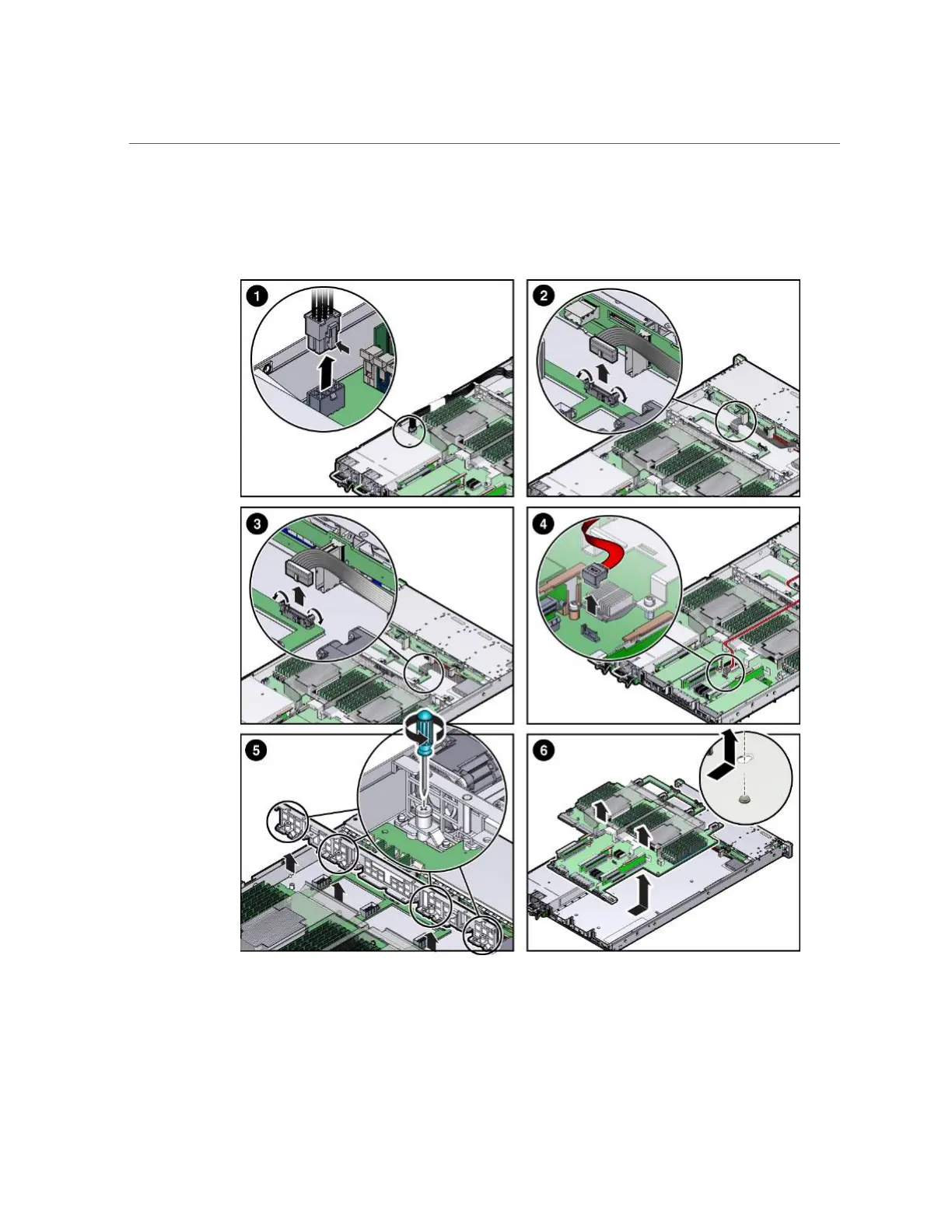

To disconnect the disk backplane power cable from the motherboard, press in
on the connector latch and pull the connector out [1].
4.
To eject the disk backplane auxiliary power and signal cable connector, open
both side latches [2].
5.
To eject the FIM cable connector, open both side latches [3].
