Return the Server to the Normal Rack Position
192 Oracle Server X6-2 Service Manual • June 2016
a.
Simultaneously pull and hold the two green release tabs (one on each side
of the slide rails on the server) toward the front of the server while you push
the server into the rack.
As you push the server into the rack, verify that the cable management arm (CMA) retracts
without binding.
Note - To pull a green release tab, place your finger in the center of the tab, not on the end, and
apply pressure as you pull the tab toward the front of the server.

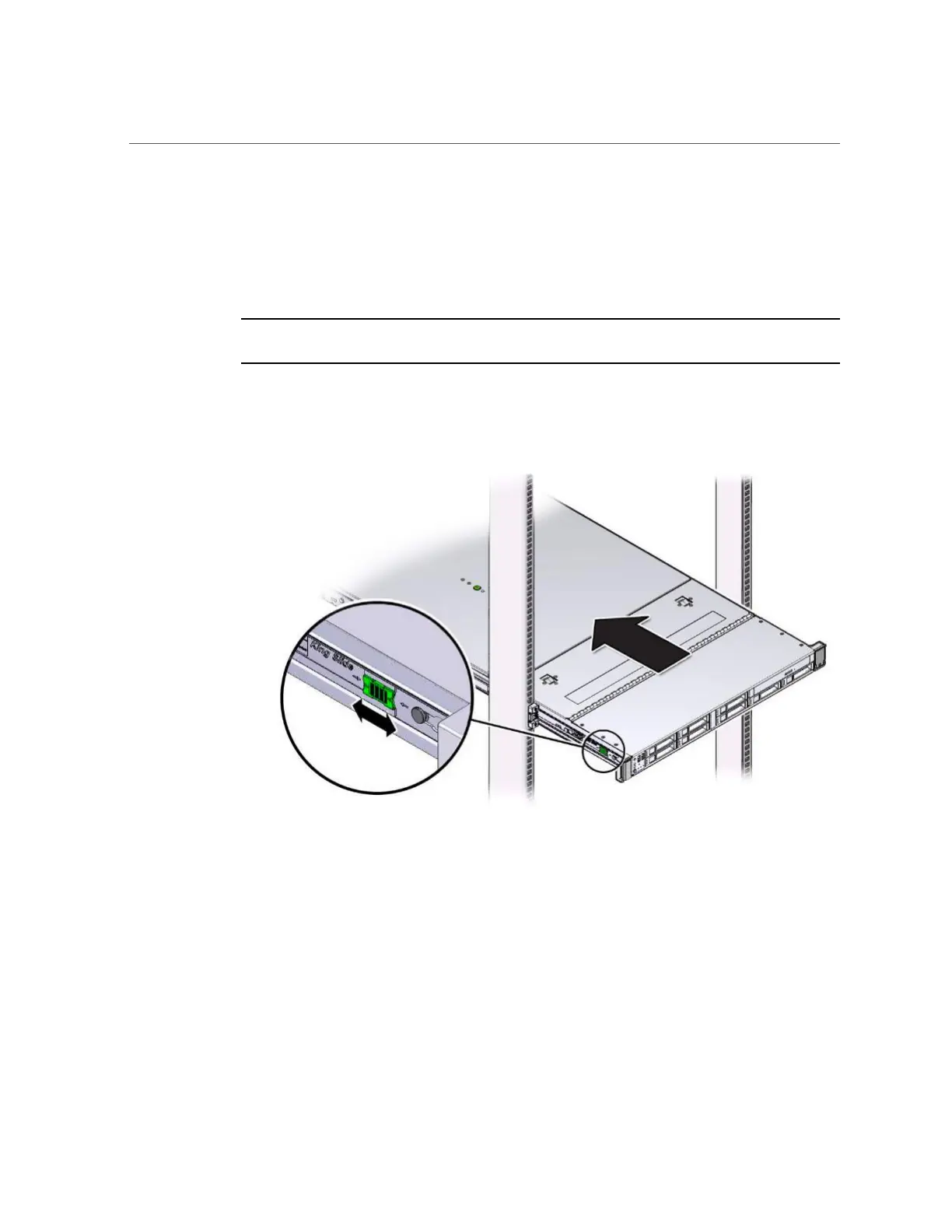

FIGURE 36
Location of the Release Tabs on the Slide-Rails
b.
Continue pushing the server into the rack until the slide-rail locks (on the
front of the server) engage the slide-rail assemblies.
You will hear an audible click when the server is in the normal rack position.
2.
If the CMA is not installed, that is, you removed it because you removed the
server completely out of the rack, install the CMA.
For installation instructions for the CMA, refer to “Install the Cable Management Arm” in
Oracle Server X6-2 Installation Guide.
