Access BIOS Setup Utility Menus
204 Oracle Server X6-2 Service Manual • June 2016
■
Connect to the server using the Oracle ILOM Remote System Console Plus application.
1.
Reset or power on the server.
For example, to reset the server:
■
From the local server, press the Power button on the front panel of the server to power off
the server, and then press the Power button again to power on the server.
■
From the Oracle ILOM web interface, click Host Management → Power Control and
select Reset from the Select Action list.
■
From the Oracle ILOM CLI, type reset /System
The power-on self-test (POST) sequence begins.
2.
To enter the BIOS Setup Utility, press the F2 key (Ctrl+E from a serial connection)
when prompted and while the BIOS is running the power-on self-tests (POST).

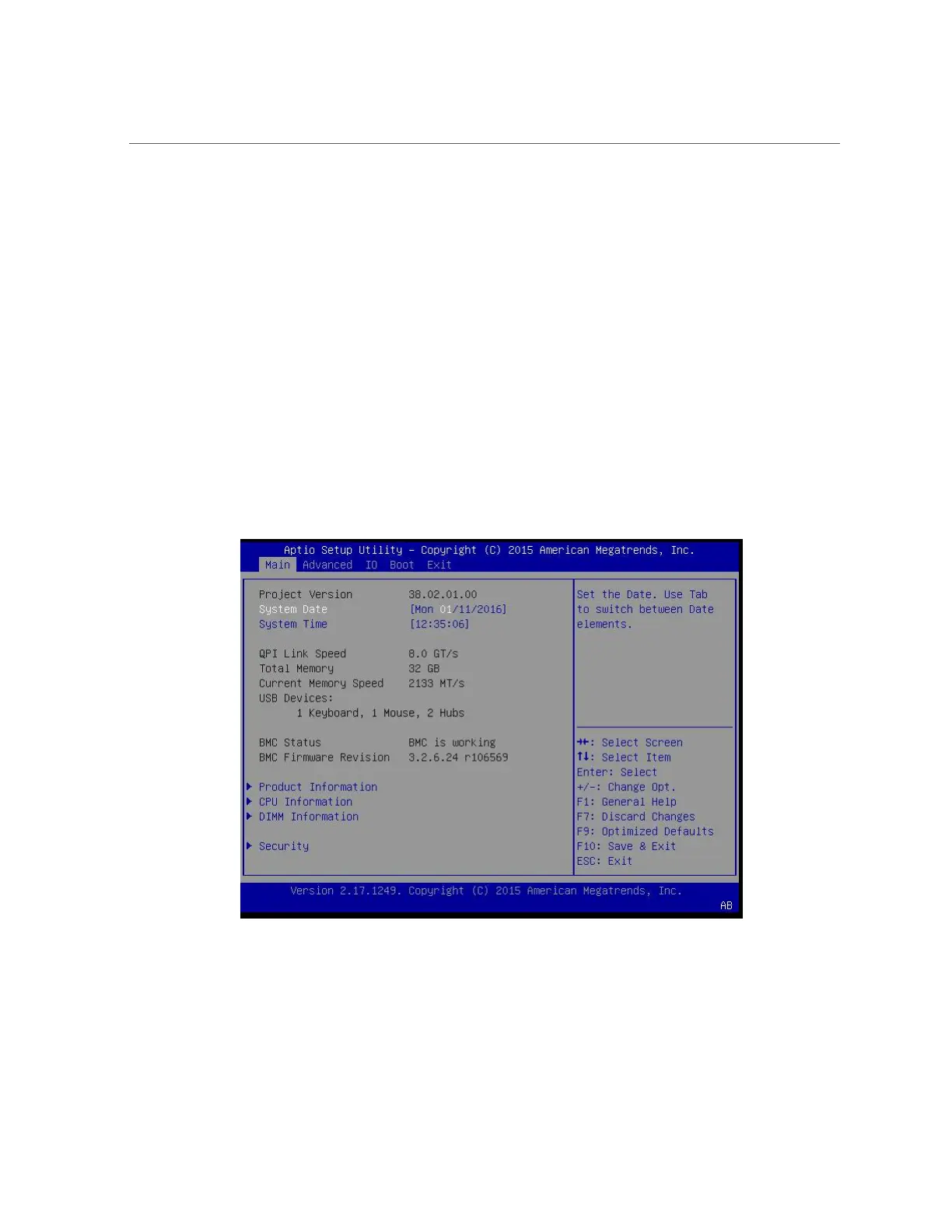

The BIOS Setup Utility Main Menu screen appears.
Related Information
■
“BIOS Setup Utility Menus” on page 202
■
“BIOS Key Mappings” on page 203
■
“BIOS Setup Utility Menu Options” on page 227
