Remove a Fan Module
Servicing CRUs That Do Not Require Server Power-Off 77

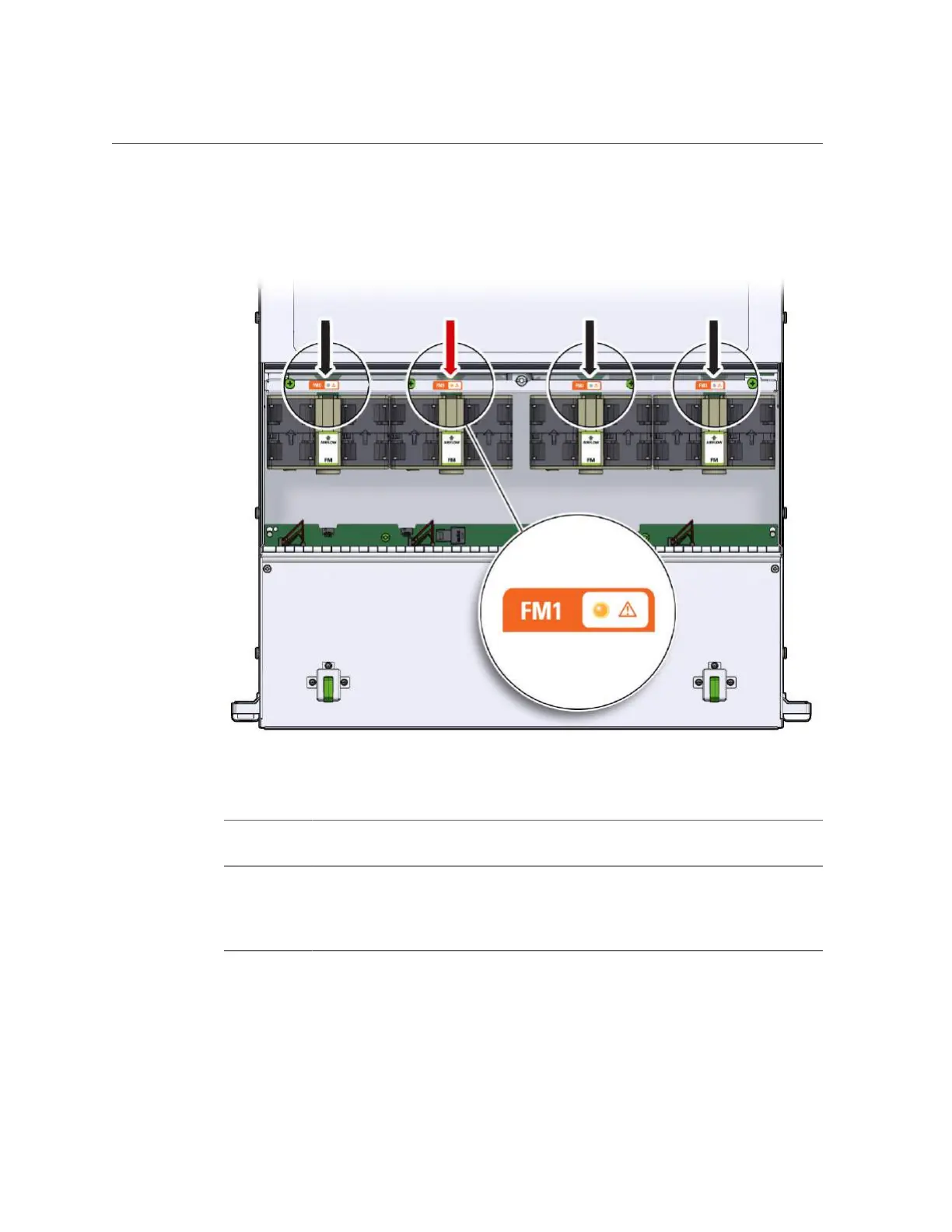

FIGURE 11
Server Fan Module Status Indicator
Status
Indicator
Name
Color State Meaning
Fan Module
Status
Off/Amber ■ Off – The fan module is correctly installed and operating within
specification.
■ Amber – The fan module is faulty. The front TOP FAN LED and the
front and rear panel Service Required LEDs are also lit if the system
detects a fan module fault.
4.
Remove the faulty fan module.
a.
Using your thumb and forefinger, grasp the fan module in the finger
recesses located in the plastic between the fans.
