Caution:
If the Red LEDs on the SC and SPC PC Boards
are ON, the Power is still ON.
Please read these Installation Instructions once
again.

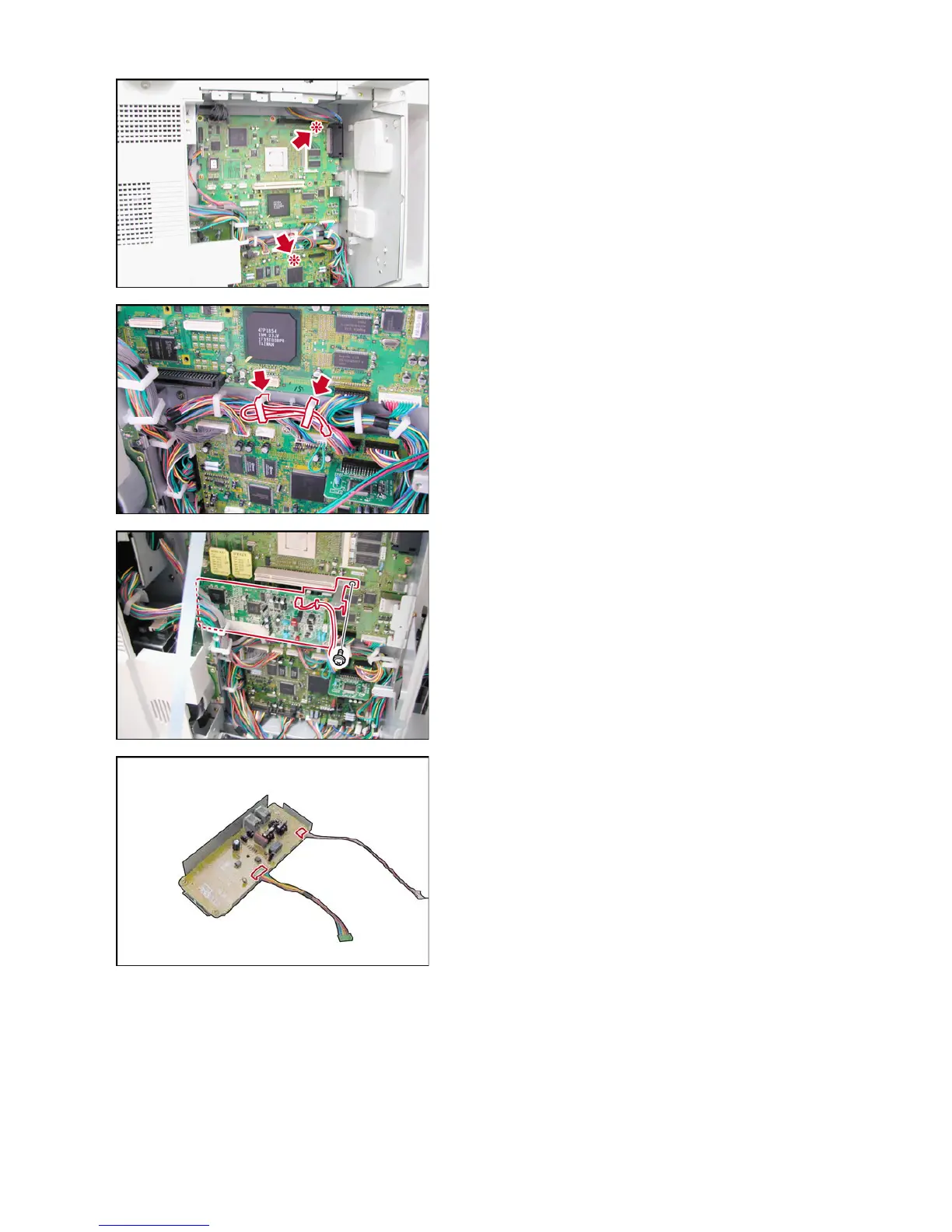

(3) Release the Pre-installed 2 wire Harness from
2 Harness Clamps.
(4) Plug the FXB PC Board Assembly into the SC
PC Board with on Board Connector.
(5) Secure the FXB PC Board Assembly with
1 Screw.
(6) Connect the Pre-installed 2 wire Harness
(Gray connector) to the FXB PC Board (CN393 :
White connector).
(7) Secure the Pre-installed 2 wire Harness with
Harness Clamp on the FXB PC Board.
(8) Connect one end of the MJR Harness and LIN
Harness to the MJR PC Board Assembly (CN22
and CN25).
