301
DP-2330/3030
MAR 2005
Ver. 2.1
DP-2310/3010

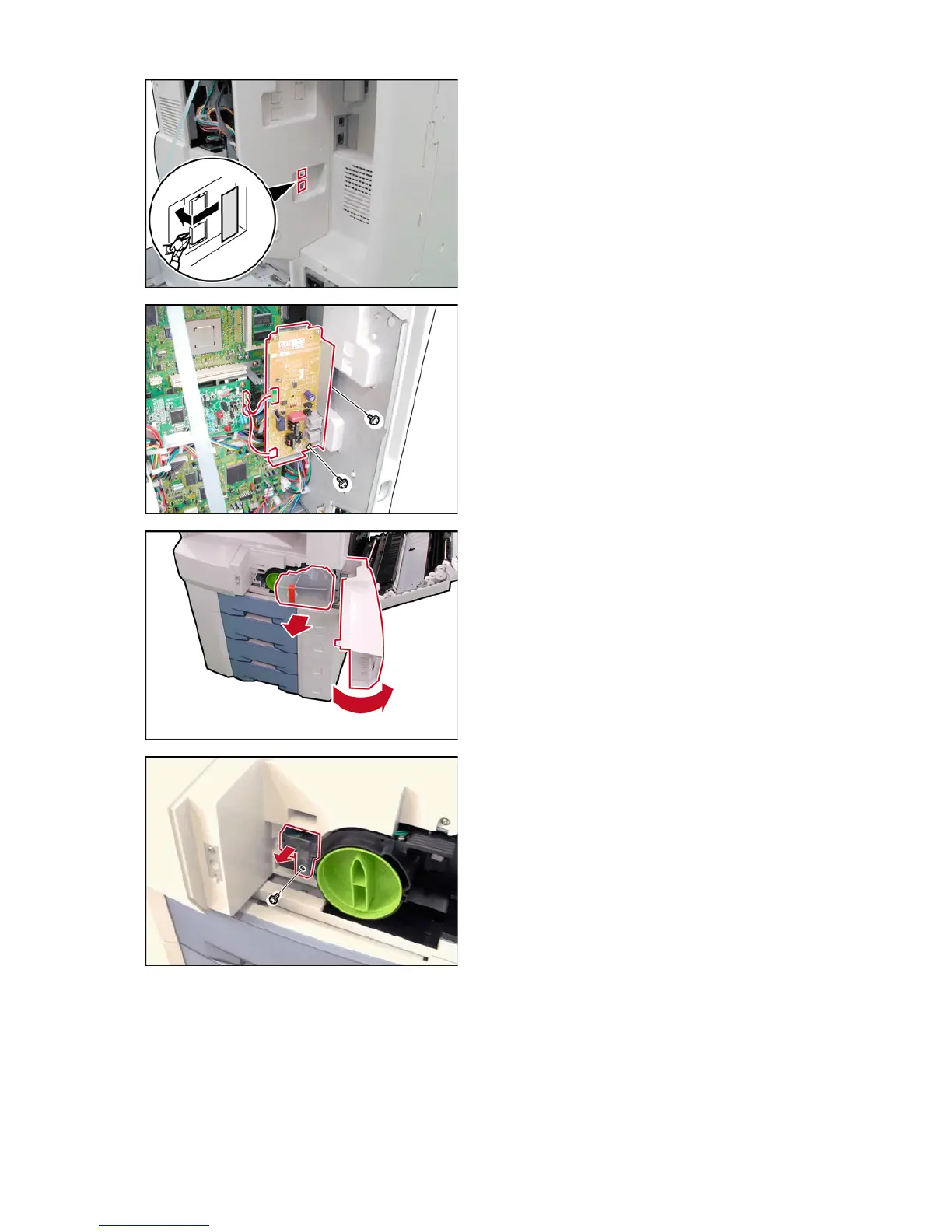

(9) Remove the Lower Protective Tab on the Left
Rear Cover for the LINE connection.
If installing an External Telephone, remove the
upper protective tab as well.
(10) Attach the Line Label to the Left Rear Cover as
illustrated.
(11) Install the MJR PC Board Assembly from the
rear of the machine by inserting the Hooks into
the slots on the frame.
(12) Secure the MJR PC Board Assembly with 2
Screws.
(13) Connect the MJR PCB Harnesses to the FXB
PC Board (CN391 and CN392).
(14) Open the Right Cover and Front Cover.
(15) Remove the Toner Waste Container.
(16) Remove 1 Screw.
(17) Remove the Connector Cover (Clear Blue).
To Next Page
