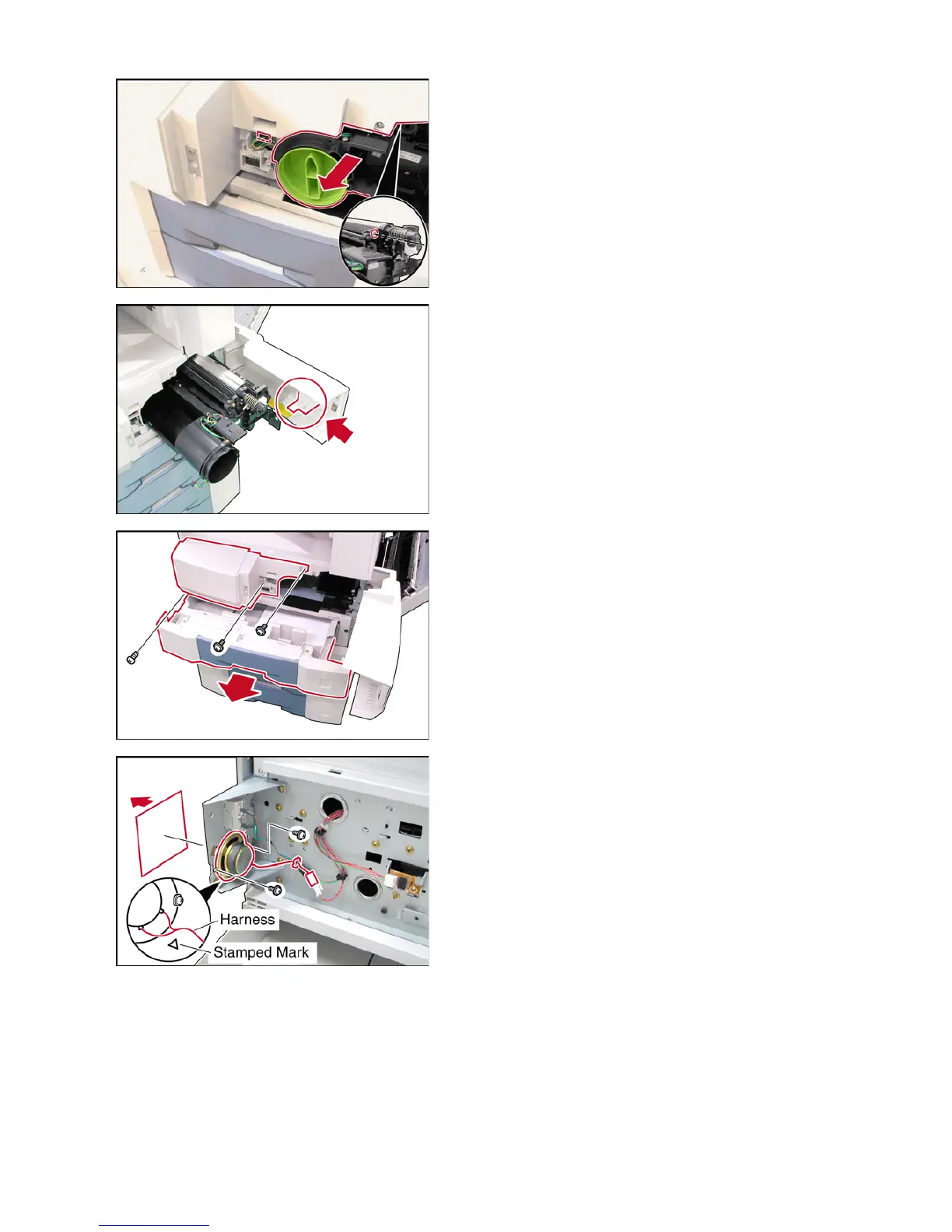

(18) Disconnect the Harness.
(19) Loosen 1 Screw.
(20) Slide the Process Unit out.
Caution:
To prevent damage to the Process Unit, ensure
the Right Cover is still open before pulling the
Process Unit out.
Caution:
Exercise caution not to scratch the surface of the
OPC Drum (Green), and not to touch it with bare
hands.
Caution:
The OPC Drum is sensitive to light. To prevent
optical exposure problems, do not expose the
OPC Drum to direct sunlight or bright light (even if
it is a 1000-Lux fluorescent lamp).
(21) Slide the 1st Paper Tray out.
(22) Remove 3 Screws.
(23) Remove the Front Left Cover.
(24) Remove the Blind Label.
(25) Install the Speaker as illustrated.
(26) Secure the Speaker with 2 Screws.
(27) Connect the Speaker Harness.
(28) Insert the Speaker Harness into the Harness
Clamp.
(29) Reinstall the Front Left Cover, the Process Unit
and the Toner Waste Container.
