Panasonic DP-2330

312
DP-2330/3030
MAR 2005
Ver.2.1
DP-2310/3010
CAUTION!
After the Hard Disk Drive Unit is installed, to prevent a Disk Scan Function from being performed
(similar to Windows OS when the power is abruptly interrupted), it is important to follow the step
sequence below when turning OFF the Power Switches on the machine.
1. Turn the Power Switch on the Left Side of the machine to the OFF position first.
2. Wait approximately 10 seconds while the machine writes the closing status onto the Hard
Disk Drive Unit.

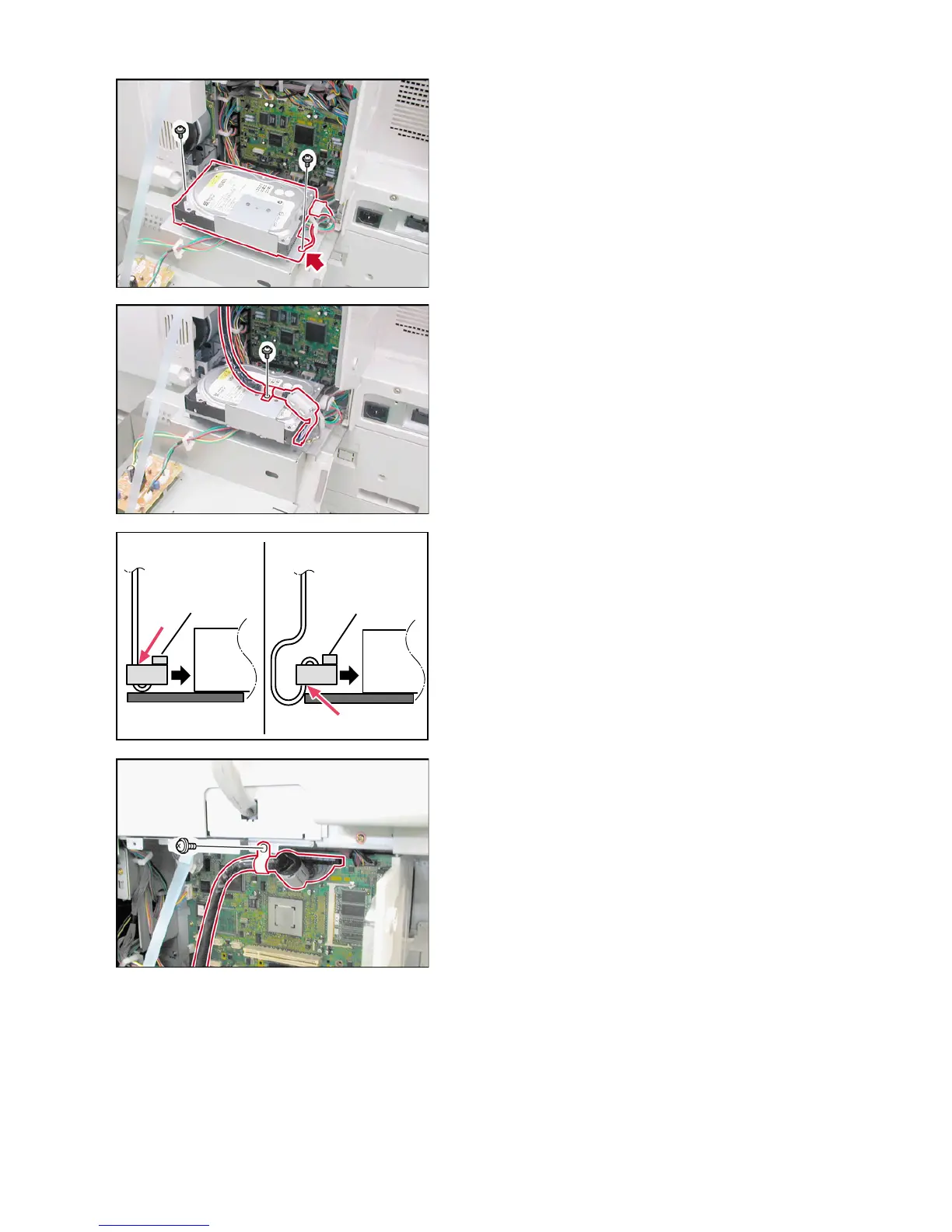

(31) Connect the HDD2 Harness to the HDD.
(32) Install the HDD Assembly.
(33) Secure the HDD Assembly and the Ground
Harness with 2 Screws.
Note:
Exercise caution not to pinch the wires under the
HDD Assembly.
(34) Connect one end of the HD Harness to the HDD.
(35) Secure the HD Harness with the Harness Clamp
(Metal) and 1 Screw (Long).
Note:
Make sure that the HD Harness is connected to
the HDD correctly as illustrated.
1) The Key on the connector must be facing
Upwards.
2) Either connector of the HD Harness will fit into
the HDD. However, the correct one is shown
in Figure Left (Harness comes out from the
top of the connector).
(36) Connect the other end of the HD Harness to
CN59 on the SC PC Board.
(37) Secure the HD Harness with the Harness Clamp
(Metal) and 1 Screw (Long).
(38) Reinstall all Covers.
(39) Plug the AC Power Cord into the wall outlet and
turn the Main Power Switch on the Back and the
Power Switch on the Left Side of the machine to
the ON position.
HDD
Correct
Incorrect
HDD
Key
Key
