Panasonic DP-2330

311
DP-2330/3030
MAR 2005
Ver. 2.1
DP-2310/3010

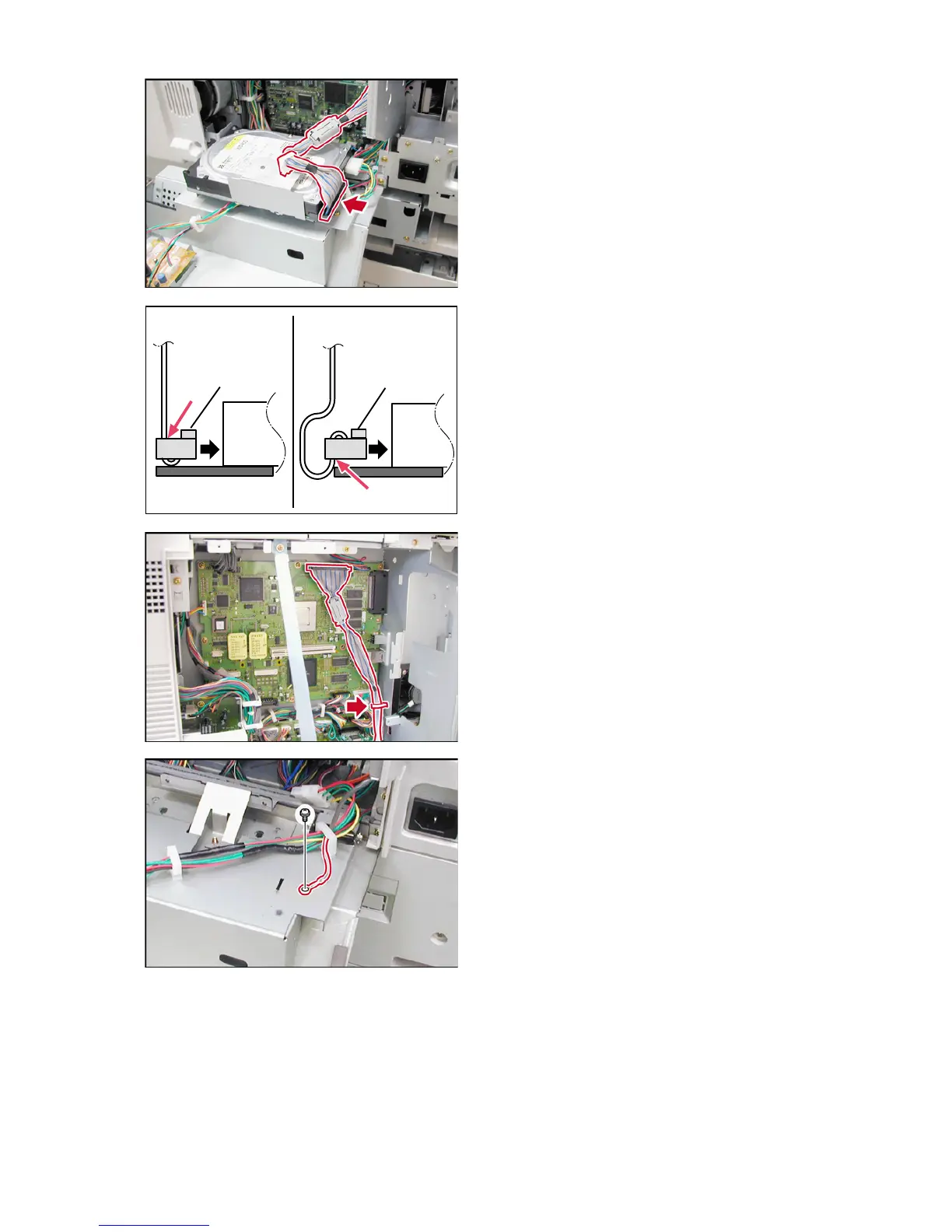

(22) Install 1 Harness Clamp (Medium).
(23) Connect one end of the HD Harness to the HDD.
(24) Secure the HD Harness with the Harness
Clamp.
Note:
Make sure that the HD Harness is connected to
the HDD correctly as illustrated.
1) The Key on the connector must be facing
Upwards.
2) Either connector of the HD Harness will fit into
the HDD. However, the correct one is shown
in Figure Left (Harness comes out from the
top of the connector).
(25) Connect the other end of the HD Harness to
CN59 on the SC PC Board.
(26) Install 1 Harness Clamp (Medium).
(27) Secure the HD Harness with the Harness
Clamp.
(28) Reinstall all Covers.
(29) Plug the AC Power Cord into the wall outlet and
turn the Main Power Switch on the Back and the
Power Switch on the Left Side of the machine to
the ON position.
<For Other Destinations>
Follow steps (30)~(39) below.
(30) Remove 1 Screw to release the Ground
Harness.
HDD
Correct
Incorrect
HDD
Key
Key
