310
DP-2330/3030
MAR 2005
Ver.2.1
DP-2310/3010

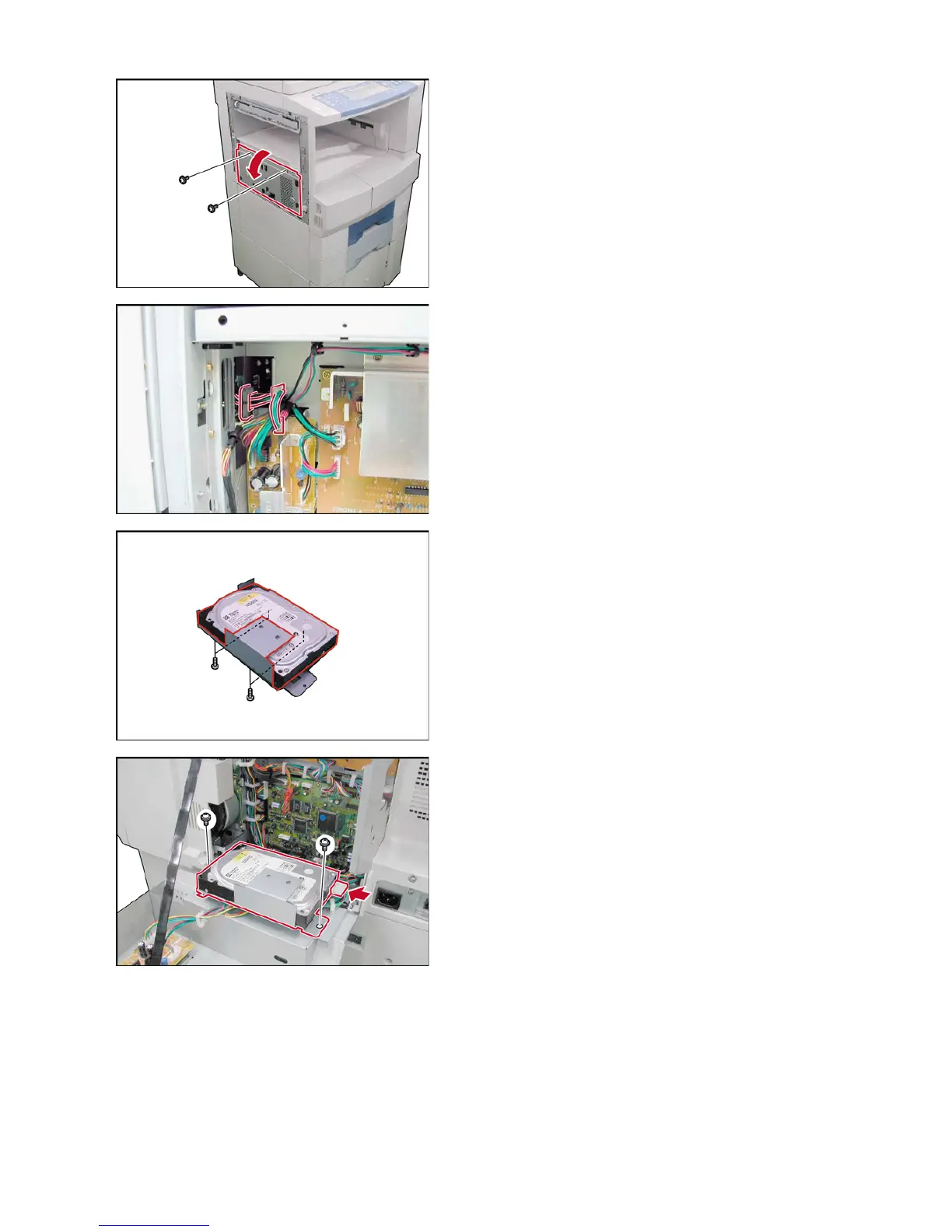

(13) Remove 2 Screws.
(14) Open the LVPS Cover.
(15) Connect the DC12 Harness to CN145 on the DC
PC Board.
(16) Secure the DC12 Harness with the 2 Harness
Clamps.
(17) Install the HDD into the HDD Bracket.
(18) Secure the HDD Bracket with 4 Silver Screws.
<For USA and Canada>
Follow steps (19)~(29) below.
[For Other Destinations, skip to steps (30) ~ (39)]
(19) Connect the HDD2 Harness to the HDD.
(20) Install the HDD Assembly.
(21) Secure the HDD Assembly with 2 Screws.
Note:
Exercise caution not to pinch the wires under the
HDD Assembly.
To Next Page
