Panasonic DP-2330

350
DP-2330/3030
MAR 2005
Ver.2.1
DP-2310/3010

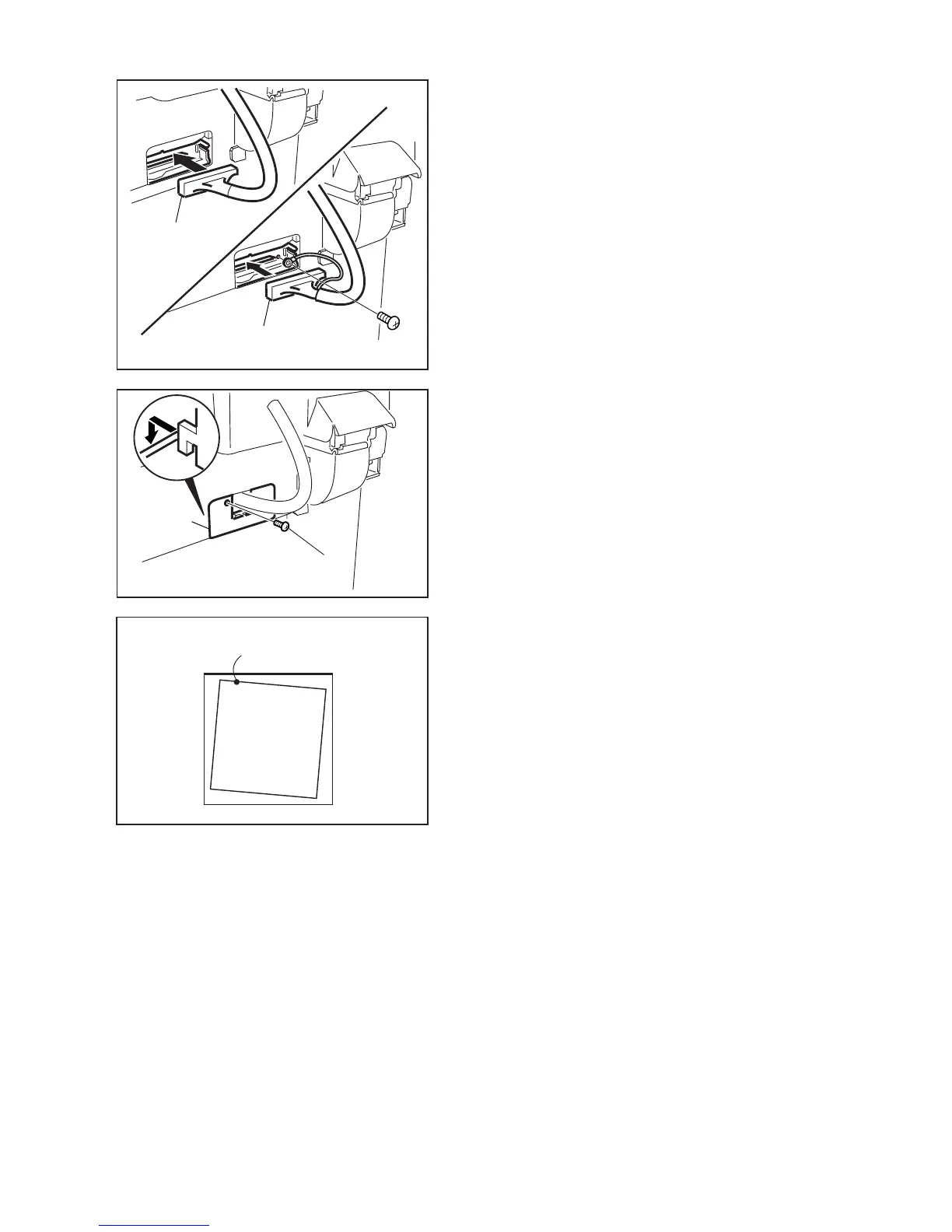

(12) Connect the Connector of the Automatic
Document Feeder Unit.
Note:
Be sure the connector is secured with the
Latch on both side.
< For European Models Only >
After connecting the Connector of the
Automatic Document Feeder Unit, secure the
Ground Wire with 1 Screw as illustrated.
(13) Reinstall the CN Bracket.
(14) Secure the CN Bracket with 1 Screw.
(15) Using a lined original (about 20lb (80 g/m2)
weight paper), make a copy from the ADF /
i-ADF to check for feeding alignment.
(12)
(12)
For Euro and Other Destination
s
(13)
(14)
Copy Image Leading Edge
< Example of Printed Image >
Skewed to
the right
