Panasonic DP-2330

352
DP-2330/3030
MAR 2005
Ver.2.1
DP-2310/3010

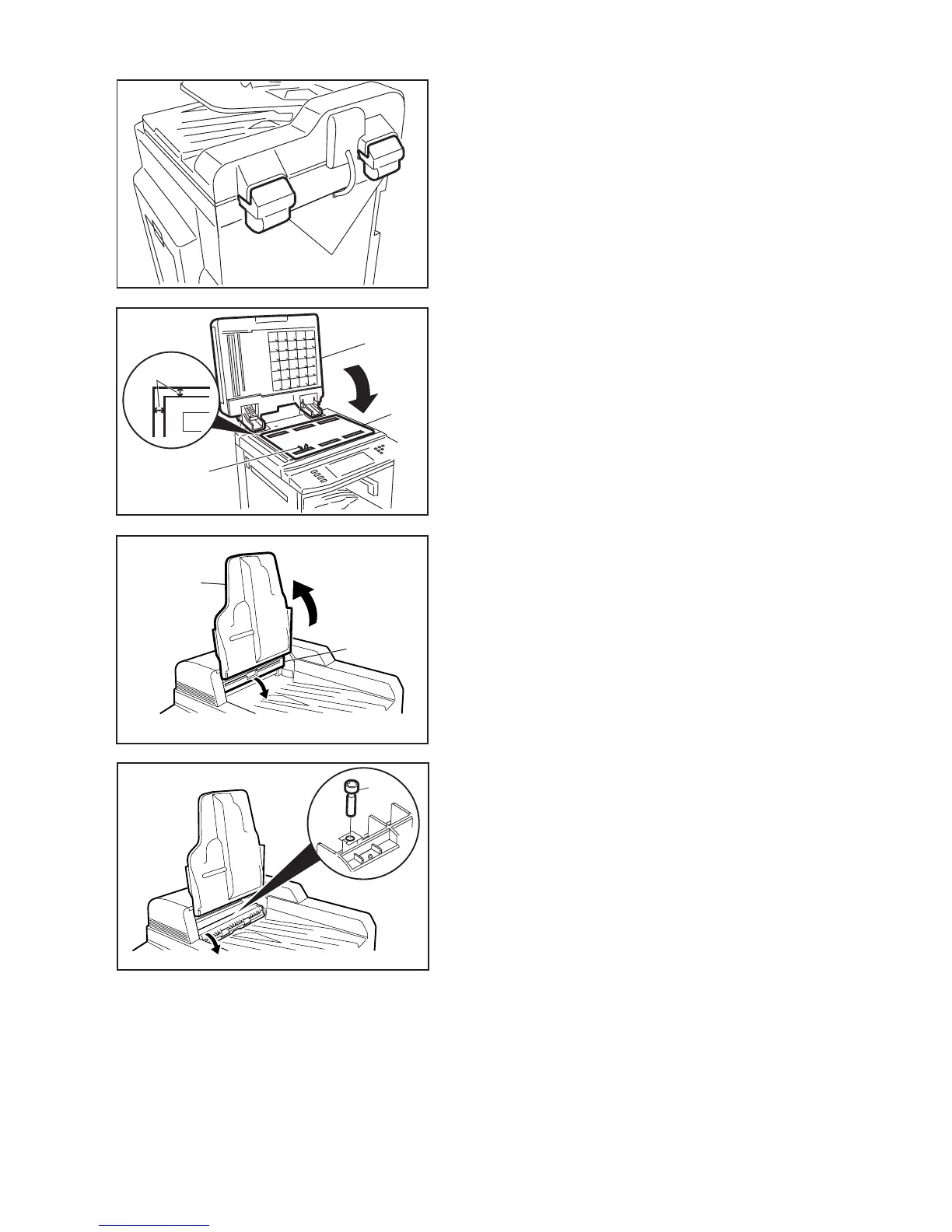

(21) Install the 2 Hinge Covers.
Note:
When installing the Hinge Covers, make sure
that each Hinge Film is put inside of each
Hinge Cover.
(22) Peel off the 6 adhesive protectors from the
Scanning Pad.
(23) Place the Scanning Pad on the glass aligning on
the upper left corner, keeping 1mm space as
illustrated.
(24) Close the Automatic Document Feeder.
Note:
Reopen the ADF Unit and push the Scanning
Pad gently to paste it properly.
(25) Lift the ADF Input Tray.
(26) Open the ADF Exit Cover.
(27) Install the Stamp Unit.
(28) Close the ADF Exit Cover, and lower the ADF
Input Tray.
(29) Perform Service Mode F6 (No. 90, 91, 92, 93
and 94) to adjust the ADF Scanning Position.
(21)
(22)x6
(24)
(23
)
1mm
(25)
(26)
(27)
