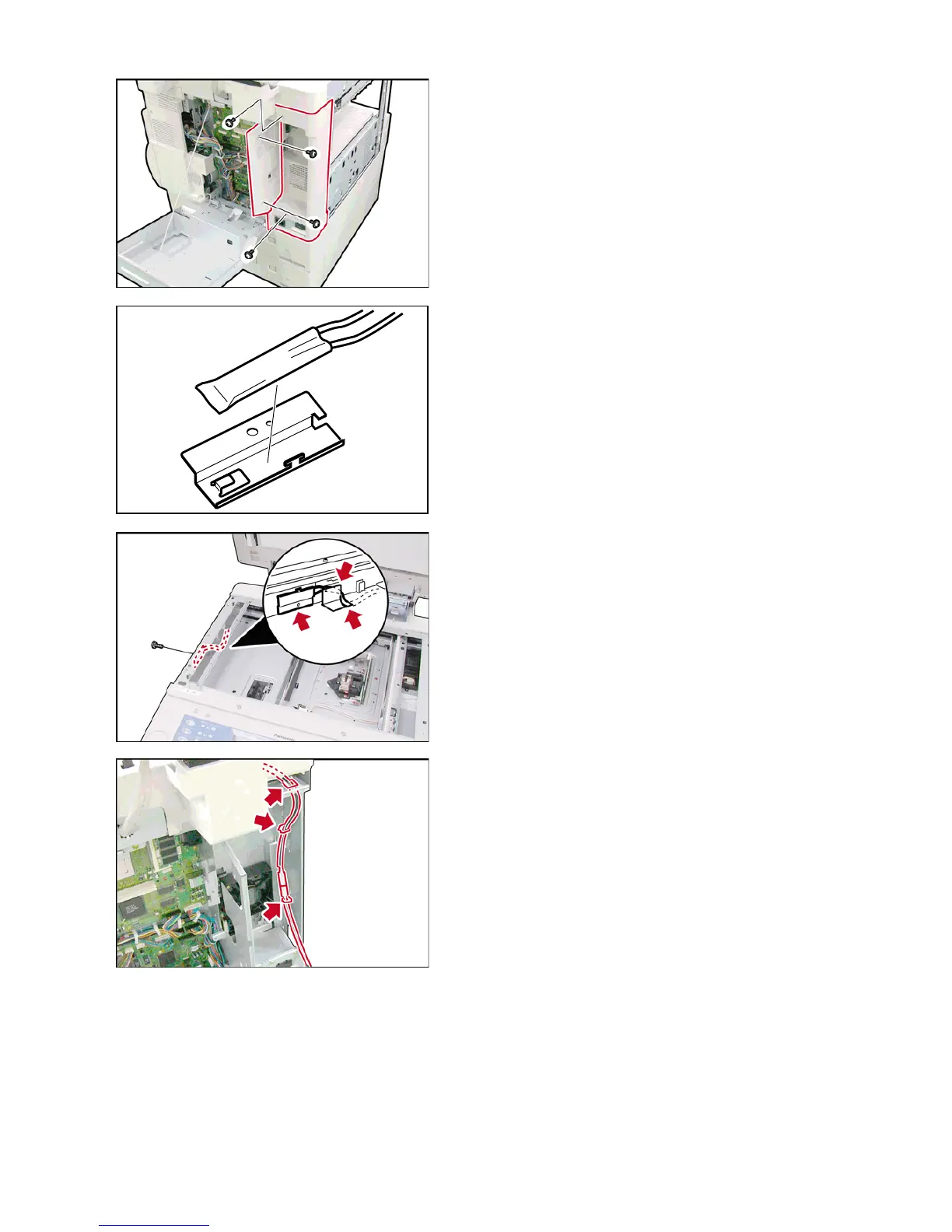

(18) Remove 2 Silver Screws.
(19) Remove the Rear Blind Cover.
(20) Remove 2 Silver Screws.
(21) Remove the Rear Left Cover.
(22) Mount the Thermistor onto the Heater
Bracket 2.
(23) Route the Harness of the Thermistor to lower
section of the frame through the access hole as
illustrated.
(24) Install the Thermistor.
(25) Secure the Thermistor with 1 Screw (XTB3+6J).
(26) Route the Harness of the Thermistor to lower
section of the frame through the access hole as
illustrated.
(27) Connect the Thermistor to the HT1 Harness.
(28) Install 2 Harness Clamps.
(29) Insert the Thermistor and HT1 Harness into 2
Harness Clamps.
