367
DP-2330/3030
MAR 2005
Ver. 2.1
DP-2310/3010

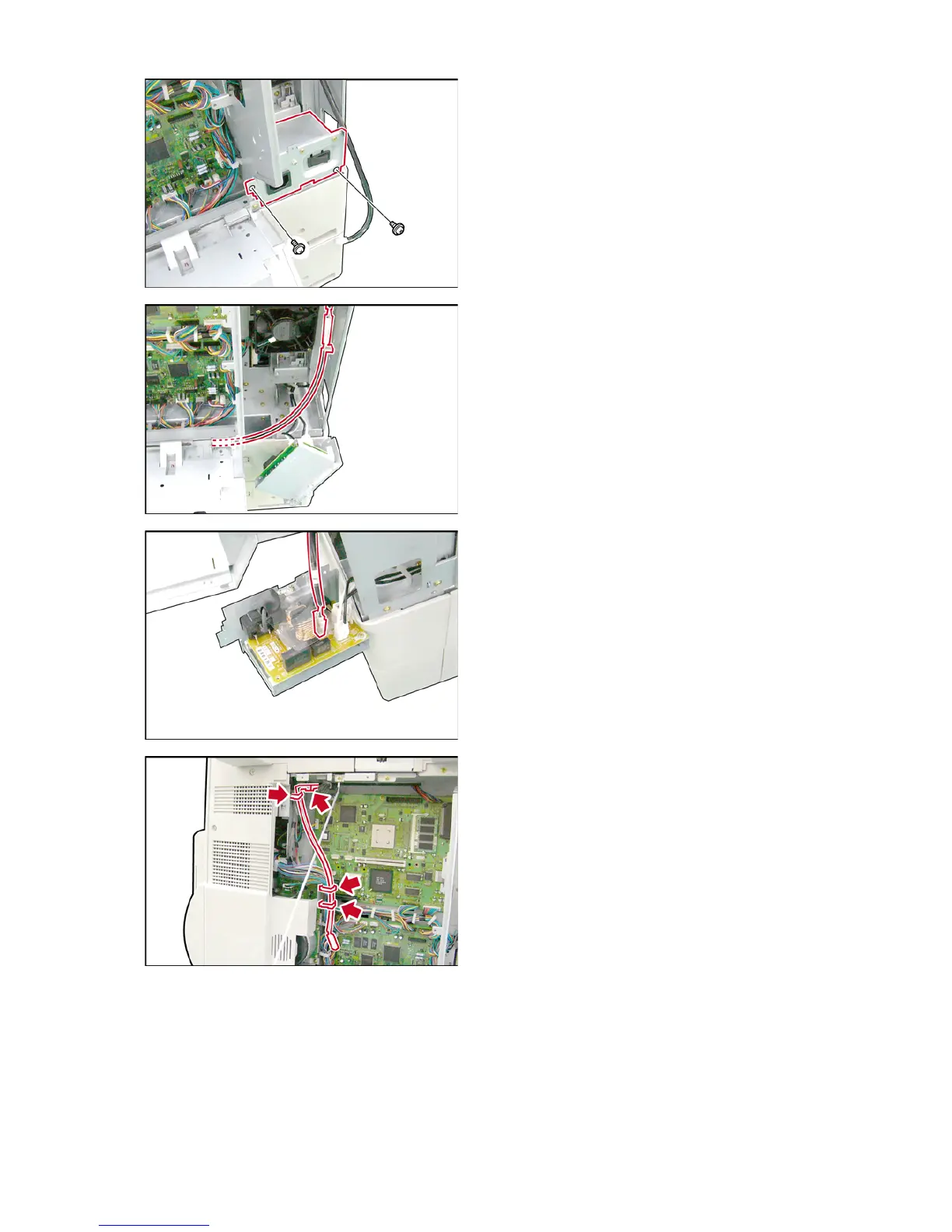

(30) Remove 2 Screws.
(31) Remove the NFL PC Board.
(32) Route the HT1 Harness to the lower section of
the frame as illustrated.
(33) Connect the RLB Harness to the NFL PC Board
(CN134).
(34) Reinstall the NFL PC Board.
(35) Connect the PTC-AC Harness 3 to the Heater.
(36) Insert the PTC-AC Harness 3 to 3 Harness
Clamps.
To Next Page
