Panasonic DP-2330

370
DP-2330/3030
MAR 2005
Ver.2.1
DP-2310/3010

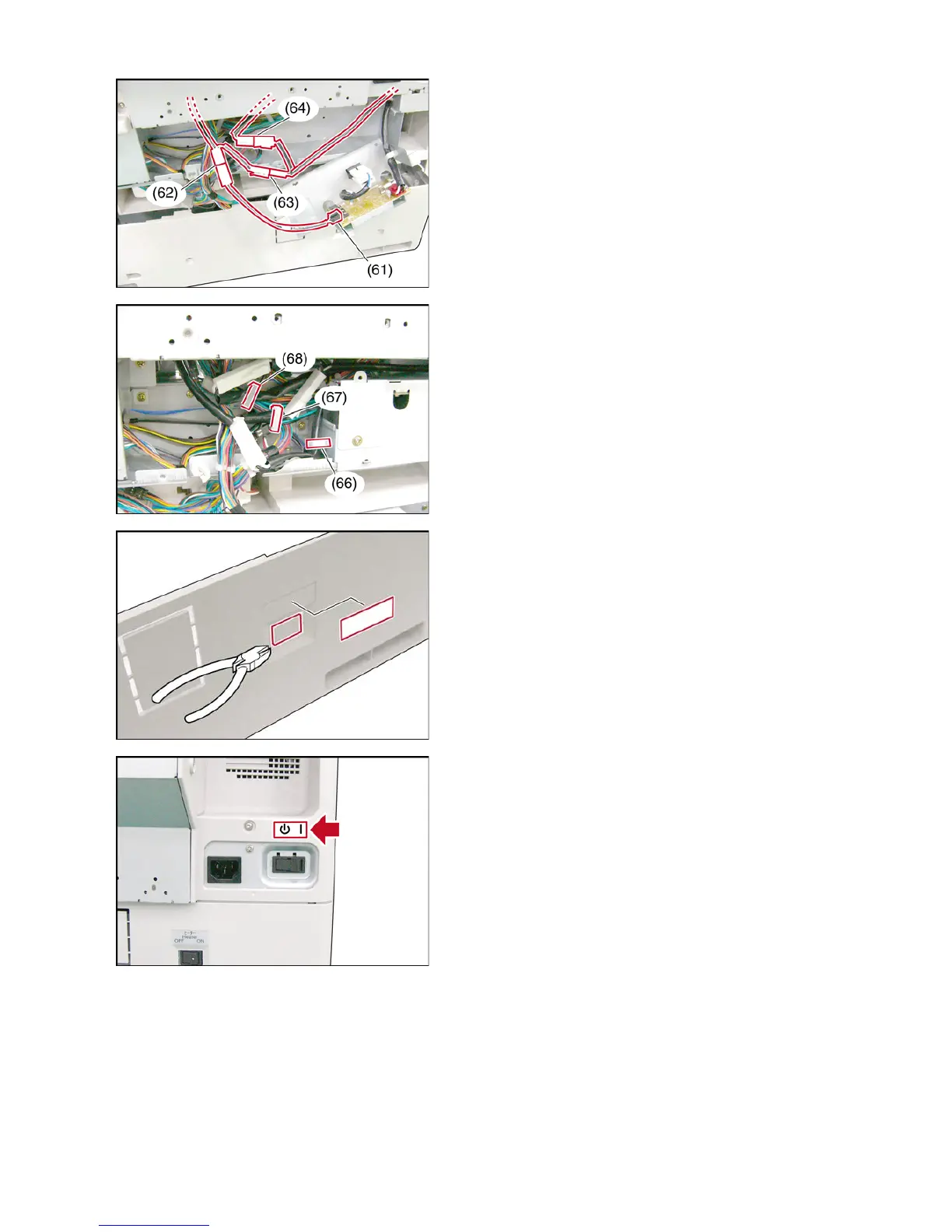

(61) Connect the HT4 Harness to the RLB PC Board
(CN172).
(62) Connect the HT3 Harness to the HT4 Harness.
(63) Connect the HT1 Harness to the HT3 Harness.
(64) Connect the PTC-AC Harness 3 to the HT1
Harness.
(65) Reinstall the HP Cover.
Note:
When reinstalling, ensure that the Harnesses do
not get damaged.
(66) Insert the HT4 Harness to the Harness Clamp.
(67) Insert the HT1 Harness to the Harness Clamp.
(68) Insert the PTC-AC Harness 3 to the Harness
Clamp.
(69) Cut off the Protective Tab on Lower Rear Cover.
(70) Attach the Heater Label.
(71) Reinstall all Covers.
(72) Attach the Power Label.
