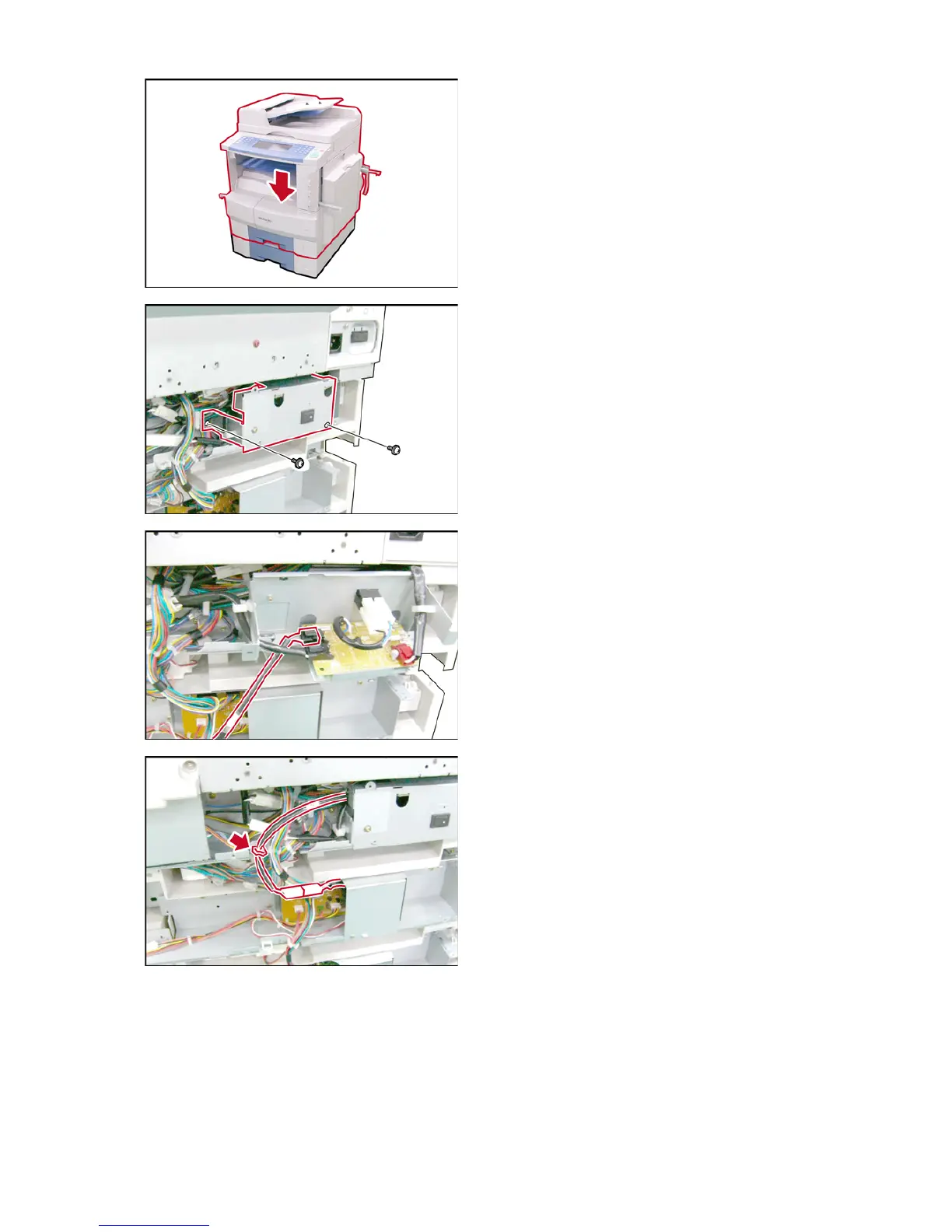

(27) Place the machine on top of the 2nd Paper Feed
Module.
Caution:
The machine weights approximately 181 lb (82 kg)
with the i-ADF pre-installed. To prevent injuries,
use the appropriate number of personnel and the
proper equipment to lift or move the machine.
(28) Reinstall 4 Brackets.
(29) Remove 2 Screws.
(30) Remove the HP Cover.
(31) Connect the HT2 Harness to the RLB PC Board
(CN174).
(32) Reinstall the HP Cover.
(33) Connect the HT5 Harness to the HT2 Harness.
(34) Insert the HT5 Harness to the Harness Clamp.
(35) Connect the CST2 Harness to SPC PC Board
(CN707).
(36) Reinstall the all Covers.
