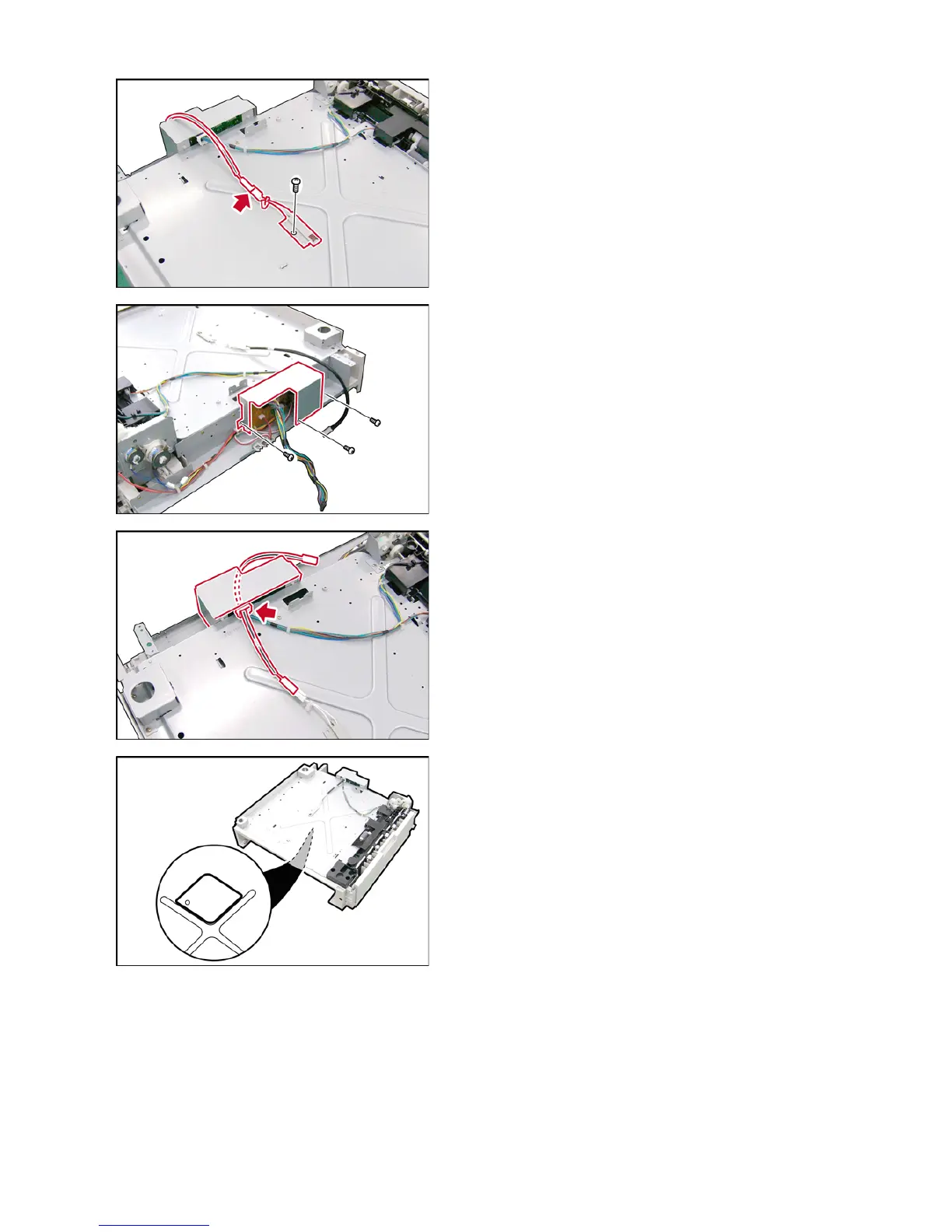

(16) Install the Heater Assembly.
(17) Secure the Heater Assembly with 1 Screw.
(18) Connect the Heater Assembly to the HT5
Harness.
(19) Install the Harness Clamp.
(20) Insert the HT5 Harness to the Harness Clamp.
(21) Remove 3 Screws.
(22) Remove the Protection Plate.
(23) Route the HT5 Harness and secure to the
Harness Clamp.
(24) Reinstall the Protection Plate.
(25) Pull the 2nd Paper Tray out.
(26) Install the Protection Sheet.
