373
DP-2330/3030
MAR 2005
Ver. 2.1
DP-2310/3010

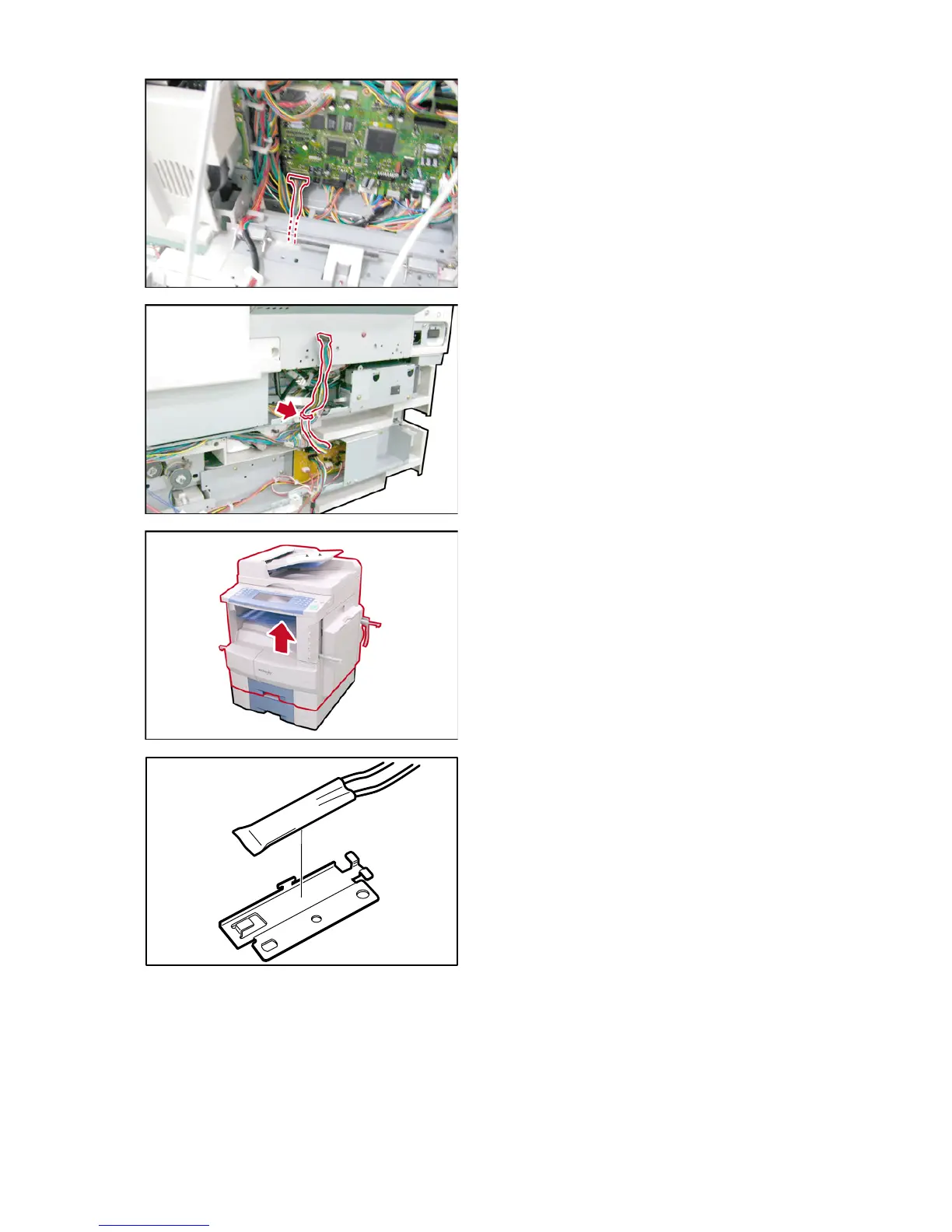

(11) Disconnect the CST2 Harness from SPC PC
Board (CN707).
(12) Close the Rear Cover.
(13) Release the CST2 Harness from the Harness
Clamp.
(14) Separate the 2nd Paper Feed Module from the
machine.
Caution:
The machine weights approximately 181 lb (82 kg)
with the i-ADF pre-installed. To prevent injuries,
use the appropriate number of personnel and the
proper equipment to lift or move the machine.
(15) Mount the Heater onto the Heater Bracket.
To Next Page
