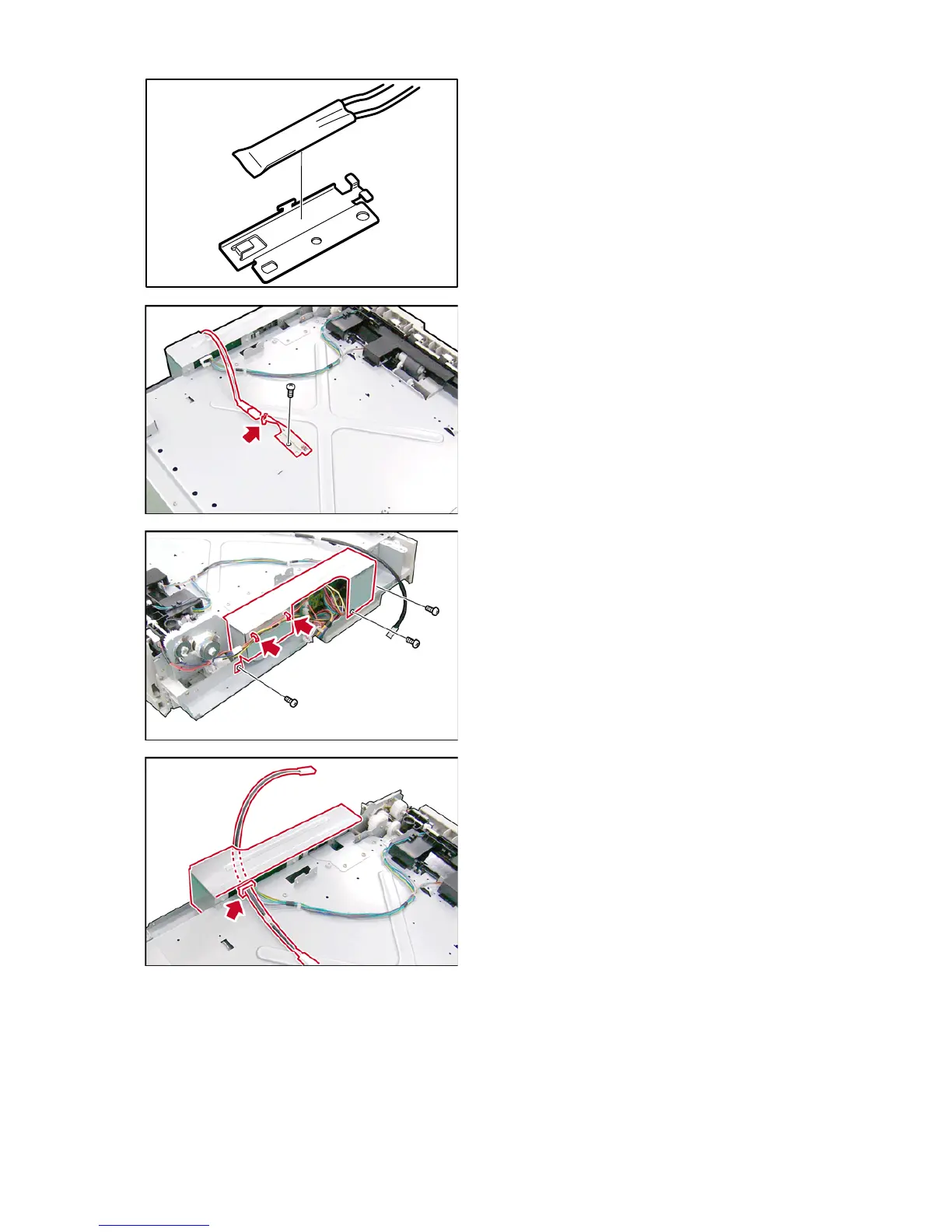

(12) Mount the Heater onto the Heater Bracket.
(13) Install the Heater Assembly.
(14) Secure the Heater Assembly with 1 Screw.
(15) Connect the Heater Assembly to the HT5
Harness.
(16) Install the Harness Clamp.
(17) Insert the HT5 Harness to the Harness Clamp.
(18) Release the Harnesses from 2 Harness
Clamps.
(19) Remove 3 Screws.
(20) Remove the Protection Plate.
(21) Route the HT5 Harness and secure to the
Harness Clamp.
(22) Reinstall the Protection Plate.
