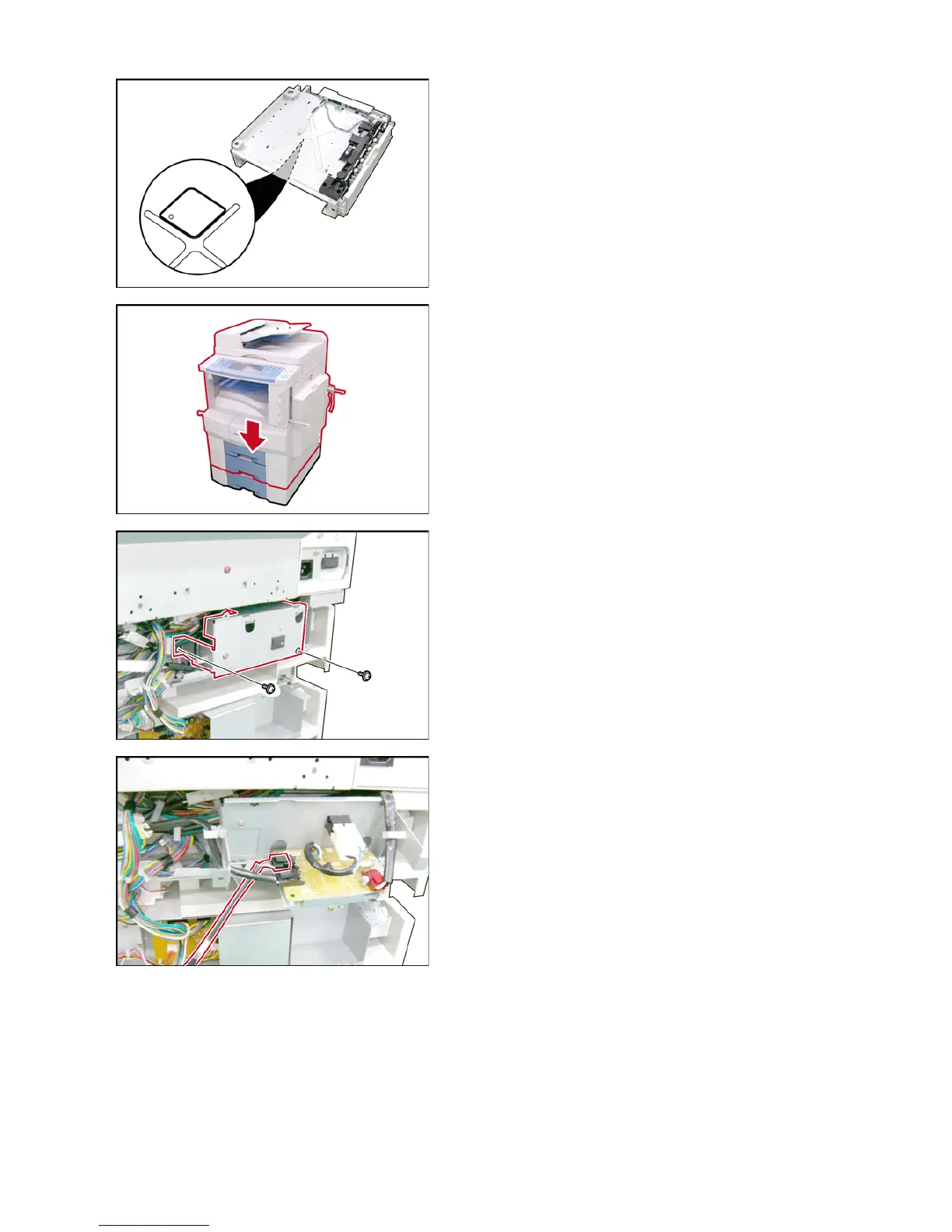

(23) Pull the 3rd Paper Tray out.
(24) Install the Protection Sheet.
(25) Place the machine on top of the 3rd Paper Feed
Module.
Caution:
The machine weights approximately 181 lb (82 kg)
with the i-ADF pre-installed. To prevent injuries,
use the appropriate number of personnel and the
proper equipment to lift or move the machine.
(26) Reinstall 4 Brackets.
(27) Remove 2 Screws.
(28) Remove the HP Cover.
(29) Connect the HT2 Harness to the RLB PC Board
(CN174).
(30) Reinstall the HP Cover.
To Next Page
