380
DP-2330/3030
MAR 2005
Ver.2.1
DP-2310/3010

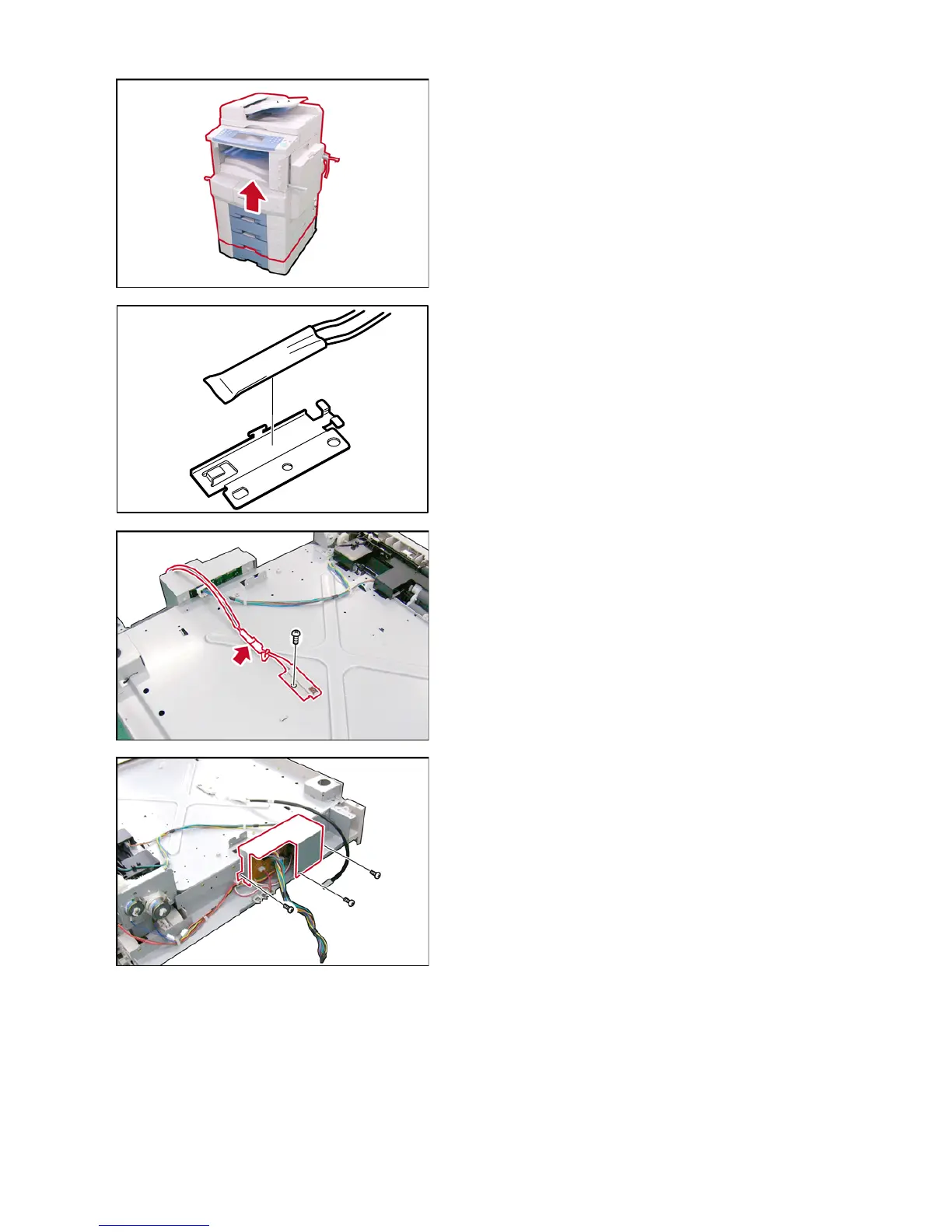

(11) Separate the 4th Paper Feed Module from the
machine.
Caution:
The machine weights approximately 181 lb (82 kg)
with the i-ADF pre-installed. To prevent injuries,
use the appropriate number of personnel and the
proper equipment to lift or move the machine.
(12) Mount the Heater onto the Heater Bracket.
(13) Install the Heater Assembly.
(14) Secure the Heater Assembly with 1 Screw.
(15) Connect the Heater Assembly to the HT6
Harness.
(16) Install the Harness Clamp.
(17) Insert the HT6 Harness into the Harness Clamp.
(18) Remove 3 Screws.
(19) Remove the Protection Plate.
To Next Page
