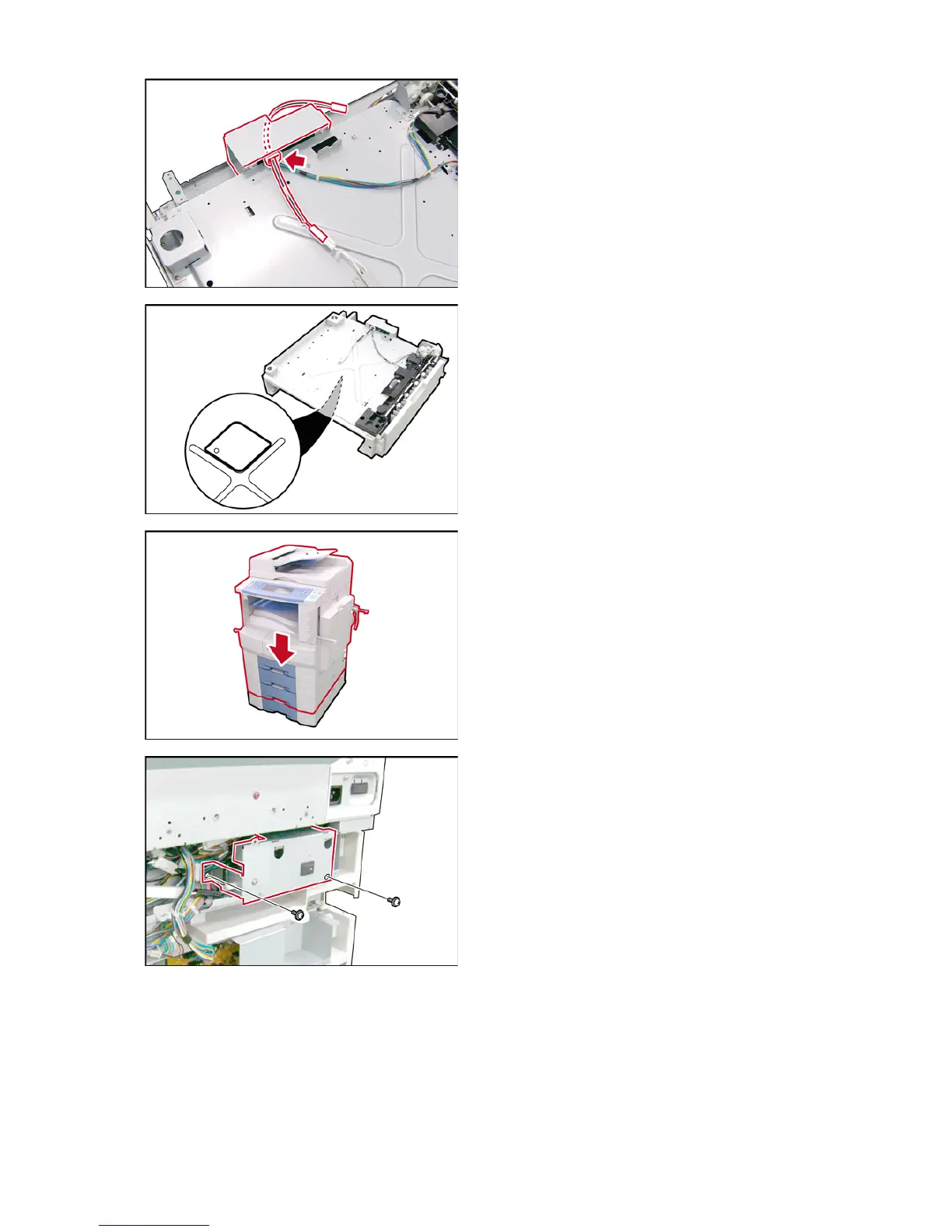

(20) Route the HT6 Harness and secure it into the
Harness Clamp.
(21) Reinstall the Protection Plate.
(22) Pull the 4th Paper Tray out.
(23) Install the Protection Sheet.
(24) Place the machine on top of the 4th Paper Feed
Module.
Caution:
The machine weights approximately 181 lb (82 kg)
with the i-ADF pre-installed. To prevent injuries,
use the appropriate number of personnel and the
proper equipment to lift or move the machine.
(25) Reinstall 4 Brackets.
(26) Remove 2 Screws.
(27) Remove the HP Cover.
