382
DP-2330/3030
MAR 2005
Ver.2.1
DP-2310/3010

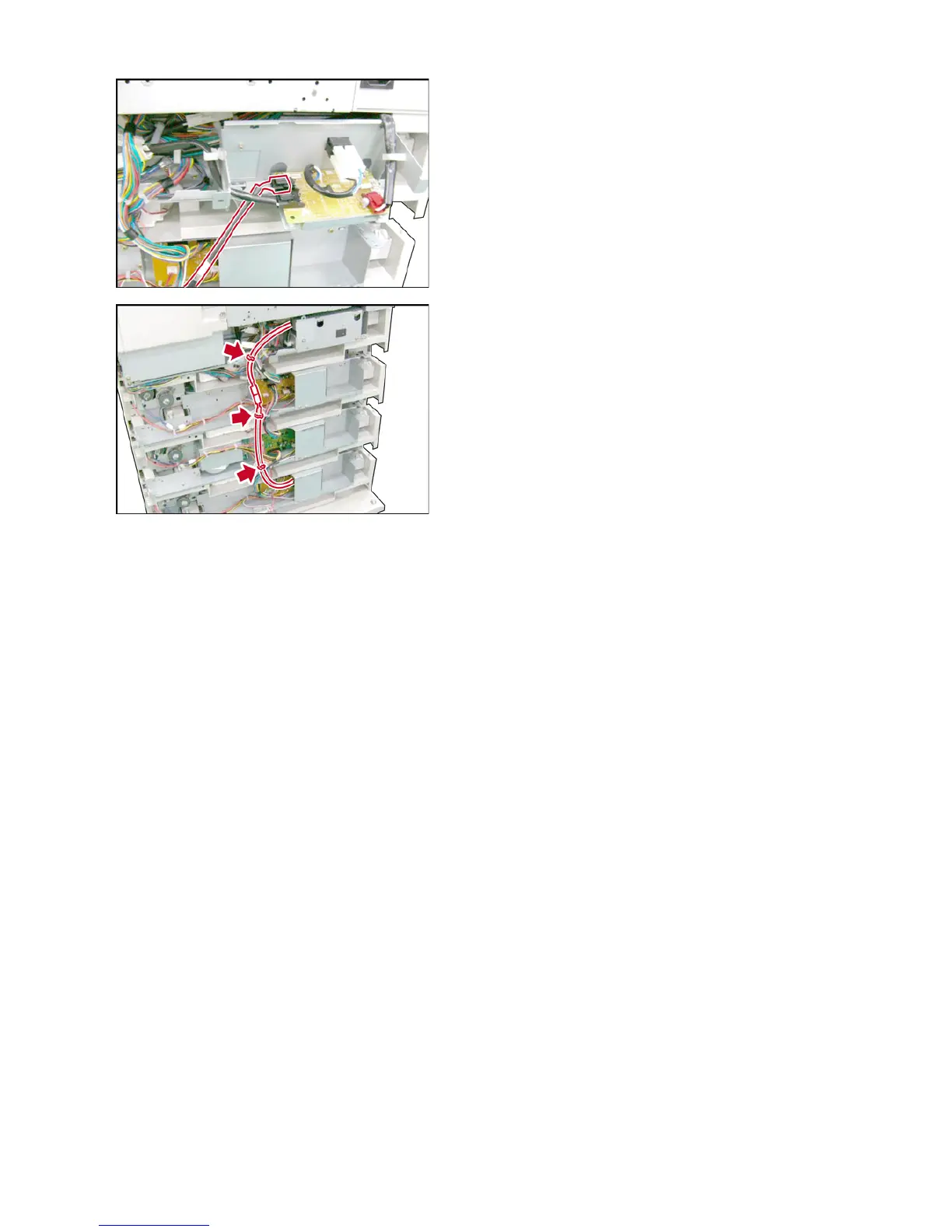

(28) Connect the HT2 Harness to the RLB PC Board
(CN174).
(29) Reinstall the HP Cover.
(30) Connect the HT6 Harness to the HT2 Harness.
(31) Install 2 Harness Clamps.
(32) Insert the HT6 Harness into 3 Harness Clamps.
(33) Connect the CST2 Harness to CST3 PC Board
(CN808).
(34) Reinstall all Covers.
To Next Page
