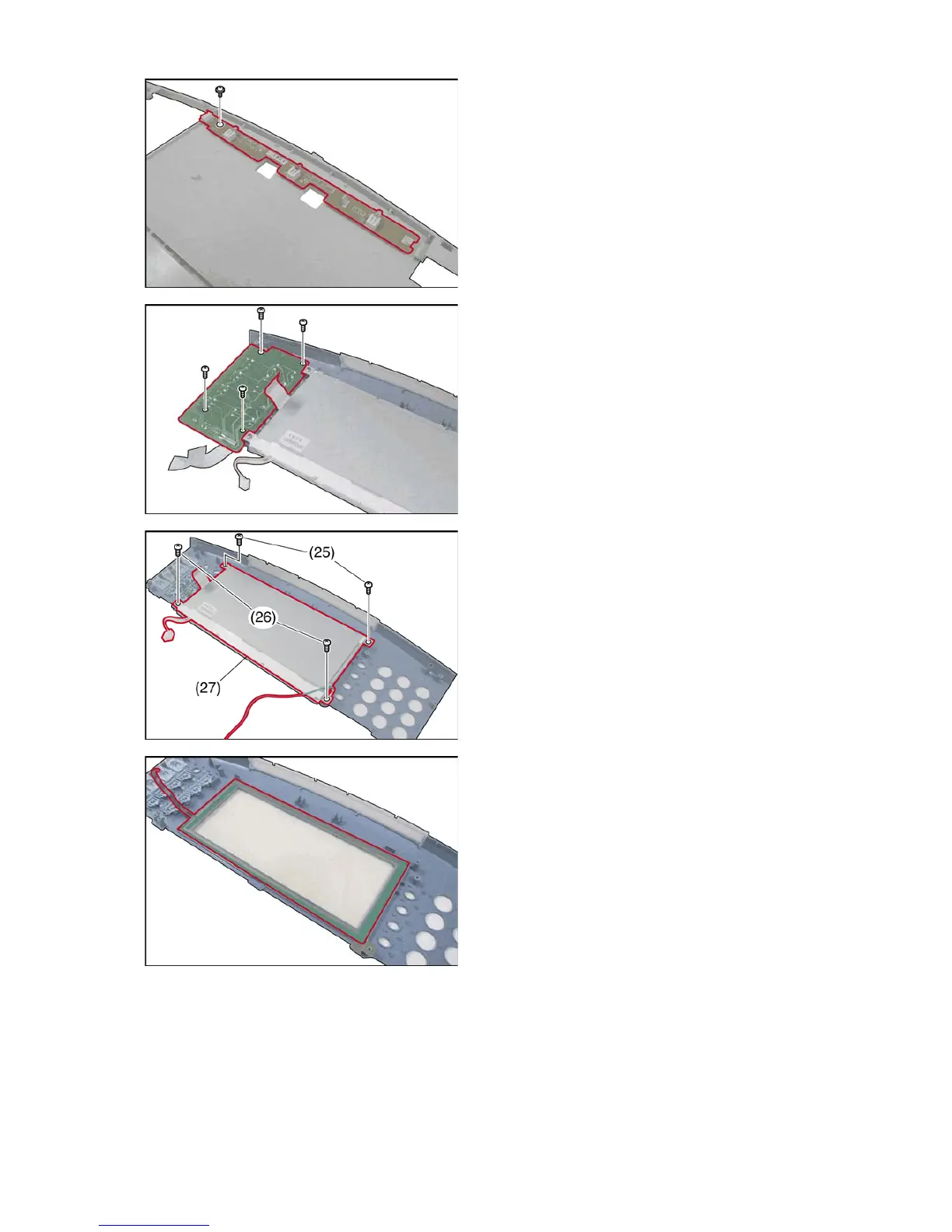

(21) Remove 1 Screw (P5).
(22) Remove the PNL4 PC Board (114).
(23) Remove 4 Screws (P5).
(24) Remove the PNL3 PC Board (113).
(25) Remove 2 Screws (H4).
(26) Remove 2 Screws (H4).
(27) Remove the LCD Module (128).
(28) Remove the Touch Panel (127).
