2 REMOVING C-ARM AND UPPER ARM COVERS Chapter F: PARTS REPLACEMENT AND REPAIR
118 Planmeca ProOne Technical manual
2 REMOVING C-ARM AND UPPER ARM COVERS
NOTE
Always switch the X-ray unit off before removing any covers.
NOTE
The C-arm inner cover has to be removed last. It cannot be detached with the sensor head
cover and tube head cover in place.

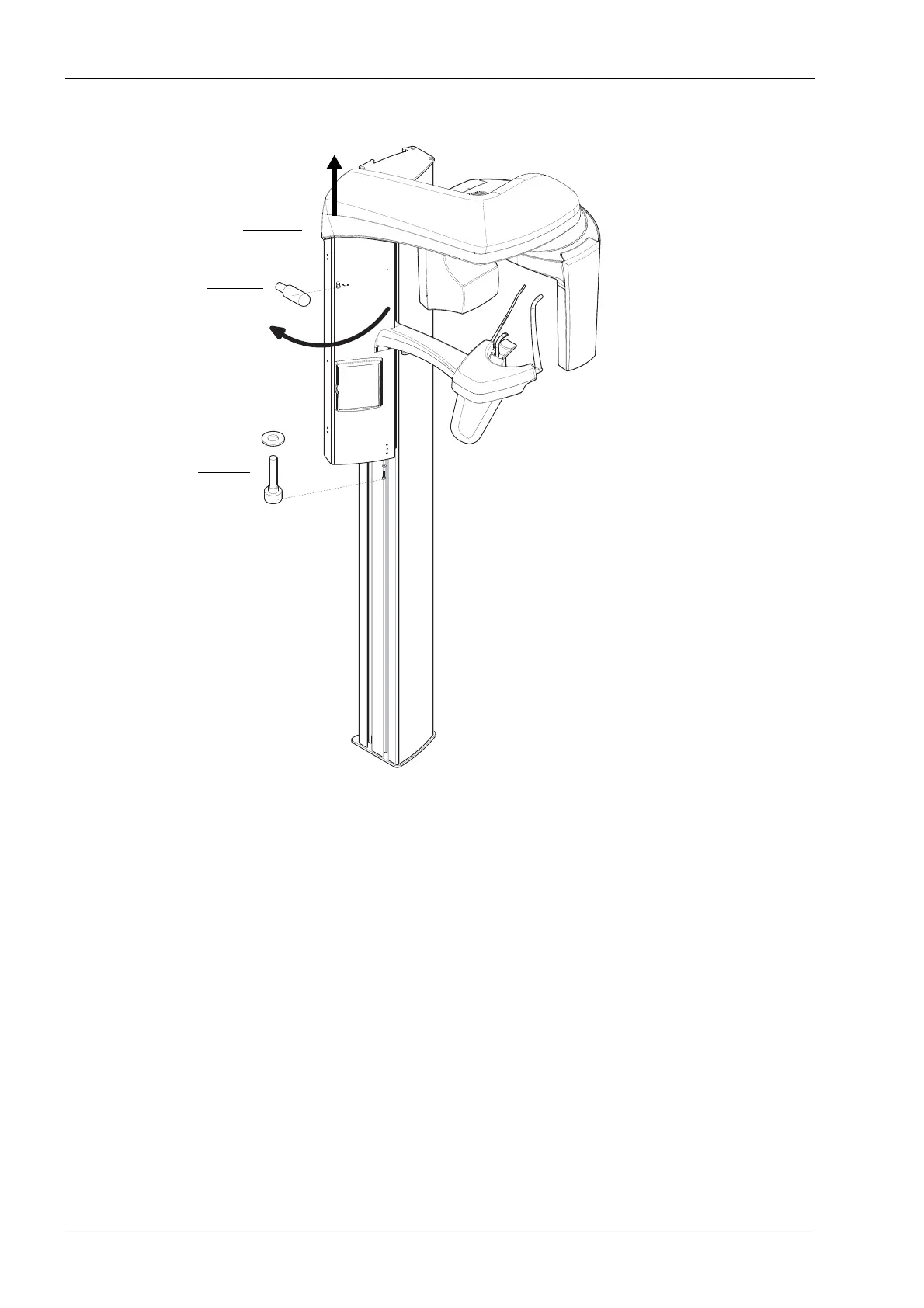

ProO_rep21.eps
Unscrew the
(Frankfort plane light)
Unscrew
the screw
adjusting lever
Slightly lift the upper arm
cover from this end
