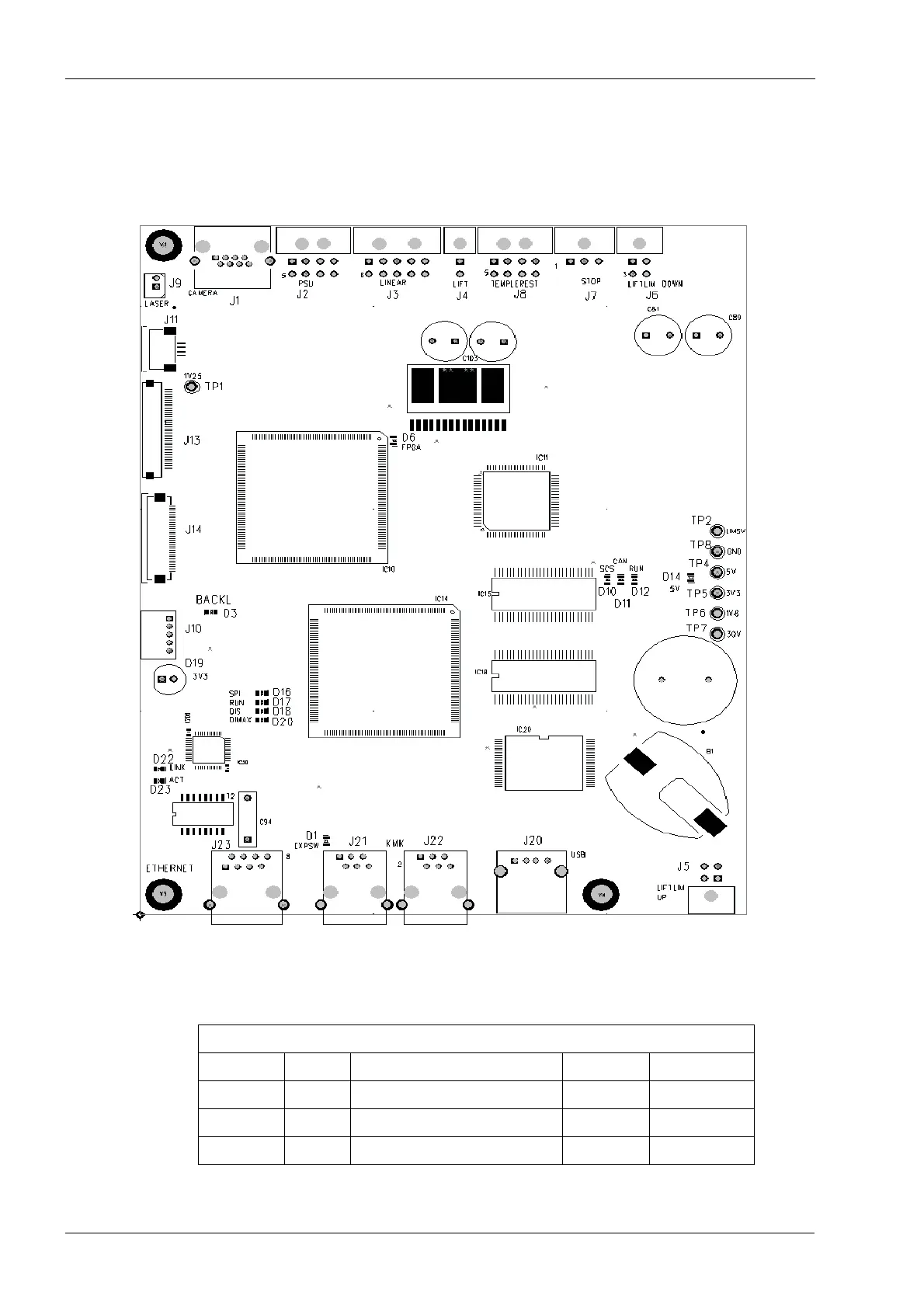

4 CPU PCB (7005-10-02): Location of indicators and connectors Chapter G: DIAGRAMS
190 Planmeca ProOne Technical manual
4 CPU PCB (7005-10-02):
Location of indicators and connectors
Indicators
Reference Name Details Status Colour
D1 EXPSW During exposure On Yellow
D3 BACKL Display Backlight On Green
D6 FPGA Run On Green
