Planmeca ProOne - PSU PCB (7005-10-01): Location of Indicators

2 PSU PCB (7005-10-01): Location of indicators Chapter G: DIAGRAMS
186 Planmeca ProOne Technical manual

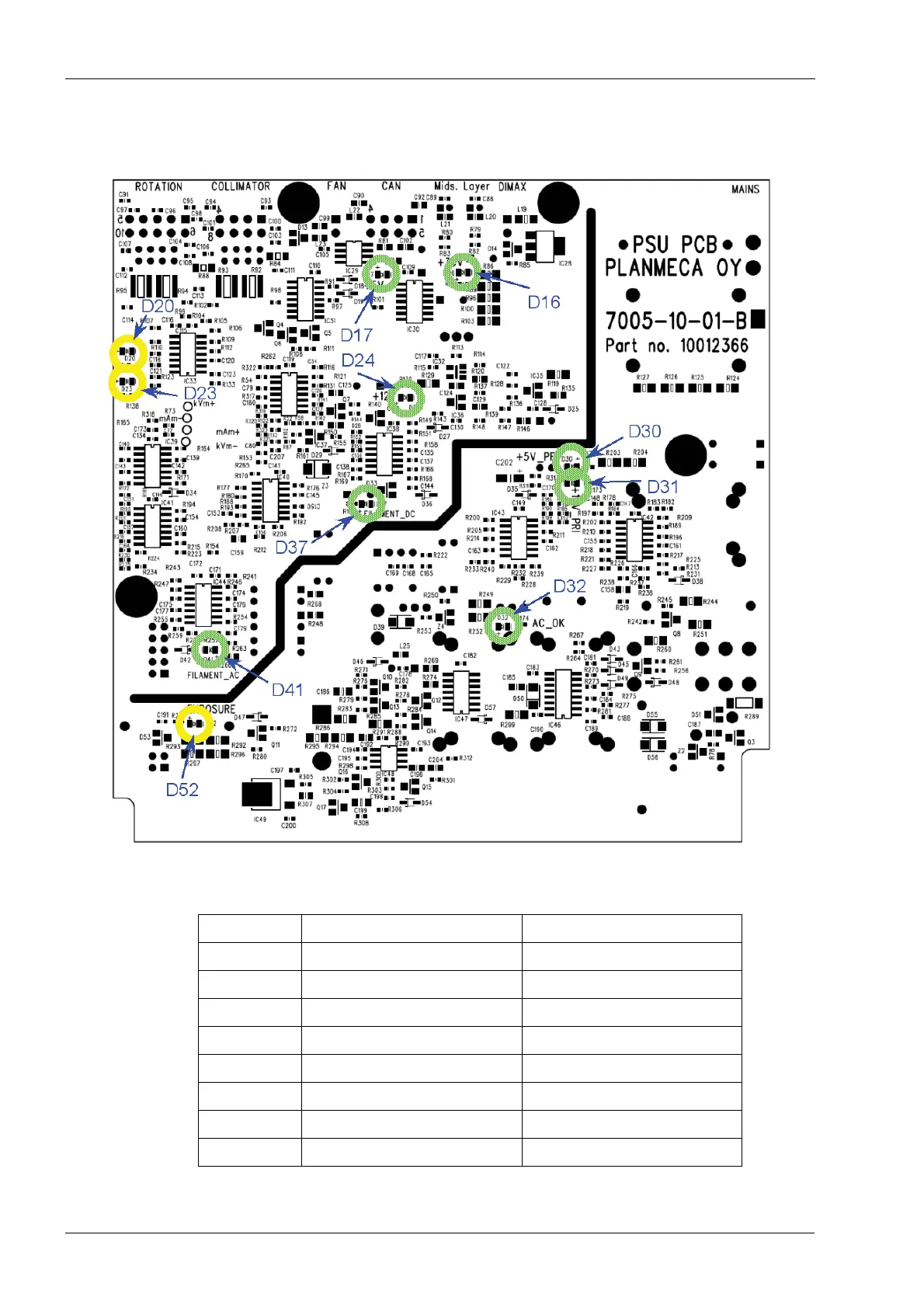

2 PSU PCB (7005-10-01): Location of indicators
Reference Name Color / Normal status
D16 +30V OK Green / normally on
D17 D17+5V OK Green / normally on
D20 SPI Yellow / during programming
D23 Timer Yellow / normally blinking
D24 +12V OK Green / normally on
D30 +5V_PRI OK Green / normally on
D31 +15V_PRI OK Green / normally on
D32 AC_OK Green / normally on
